Actisense  |  SKU: EM-108174  |  Barcode: 5060998710324

Actisense NMEA2000 Micro T Connector [A2K-T-MFF]

$40.51

Returns

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm EST. or within 1 business days if placed after 3pm EST, excluding weekends and holidays. Learn more.

Description

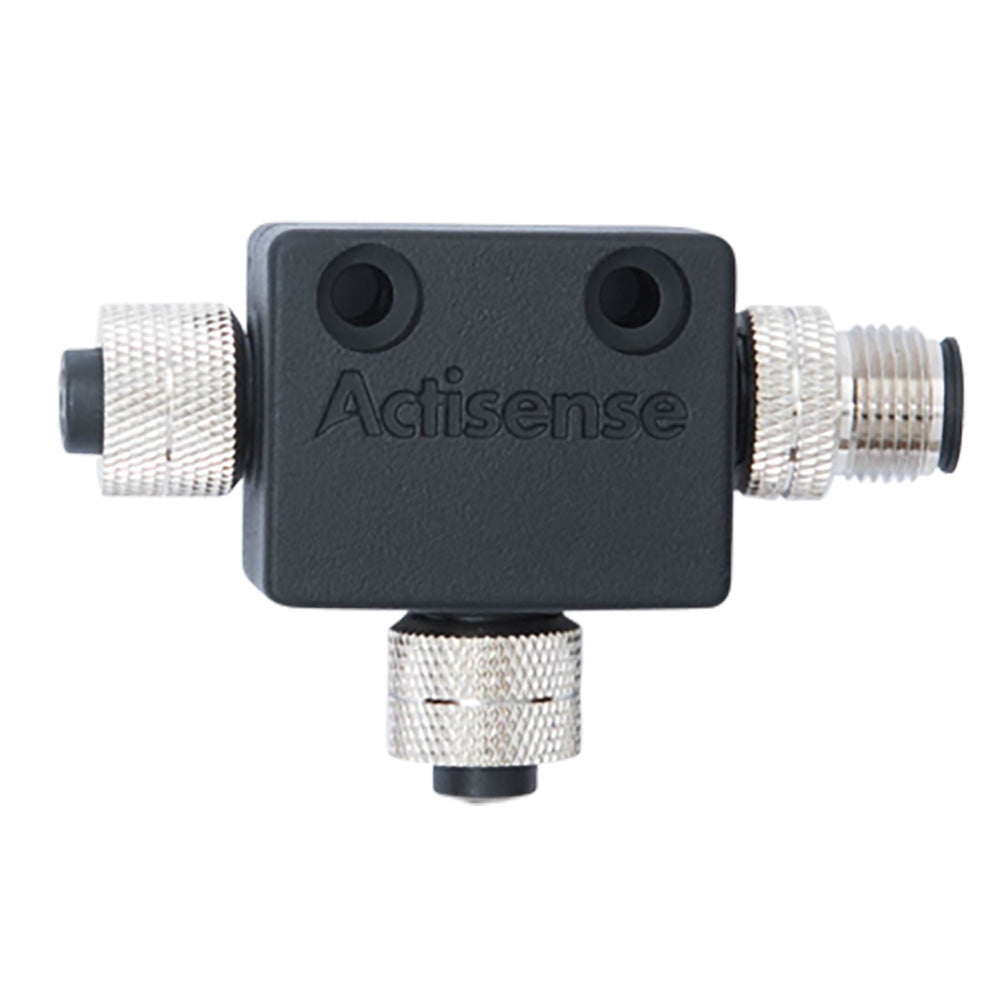

NMEA2000 Micro T Connector

Quality-engineered connectors are shaped to allow easy and secure connections.

Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.

The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

  • Rated Current - 4A
  • Rated Voltage - 60VDC
  • Male Contact - Brass, gold-plated
  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass filled), black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, black
  • Housing - PVC, black
  • Weight - 47g
  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Male-Female
  • Data Interface: NMEA 2000
  • NMEA 2000 Connectors: Tee Connectors
  • Box Dimensions: 1"H x 2"W x 2"L WT: 0.15 lbs
  • UPC: 5060998710324

Owner's Manual (pdf)
Brochure (pdf)
