Actisense  |  SKU: EM-111806  |  Barcode: 5060998710300

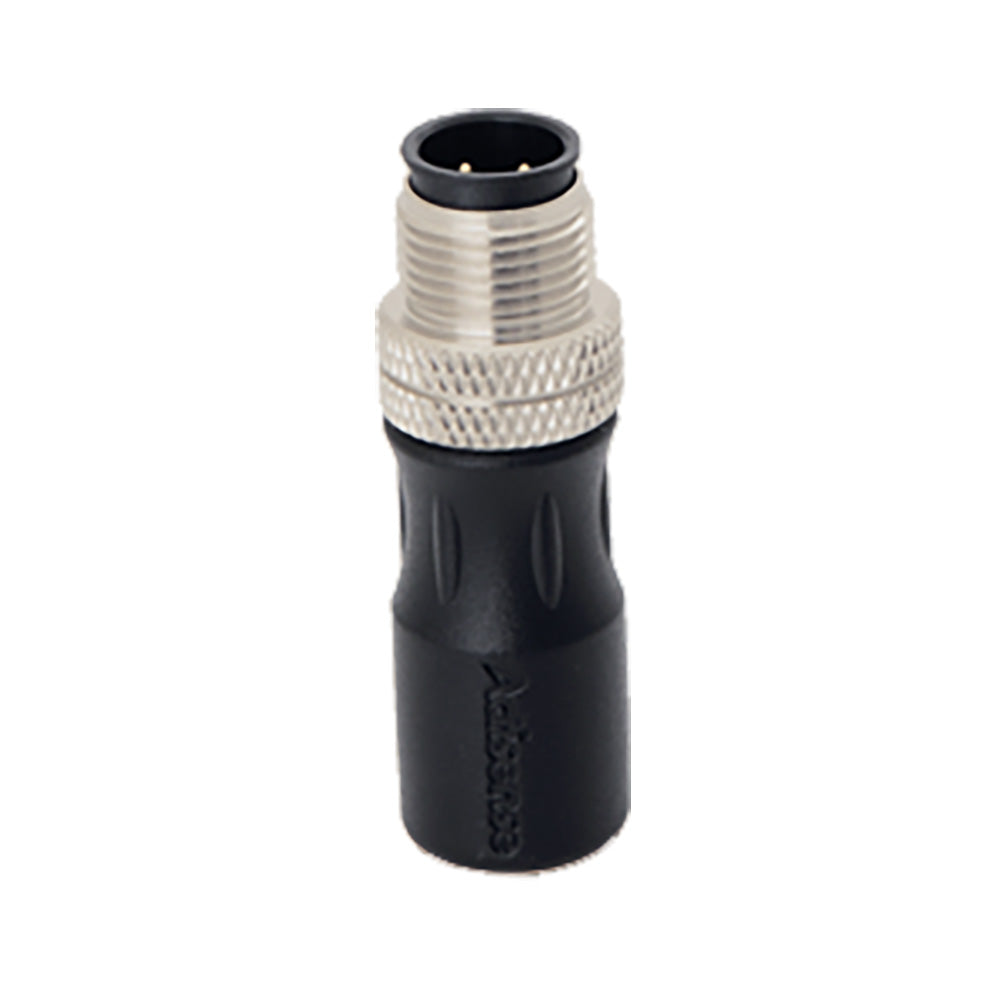

Actisense NMEA2000 Micro Terminator - Male [A2K-TER-M]

$21.91

Returns

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm EST. or within 1 business days if placed after 3pm EST, excluding weekends and holidays. Learn more.

Description

NMEA2000 Micro Terminator - Male

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

  • Rated Voltage (power pair) - 60VDC
  • Rated Current - 4A
  • Internal Termination Resistors - 120 Ω ± 1% 500mW

Mechanical

  • Male Contact - Brass, gold plated
  • Contact Carrier - PA66 (30% Glass filled), black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, Black
  • Housing - PVC, black
  • Weight - 15g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Male
  • Data Interface: NMEA 2000
  • NMEA 2000 Connectors: Terminators
  • Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs
  • UPC: 5060998710300

Owner's Manual (pdf)
Brochure (pdf)
