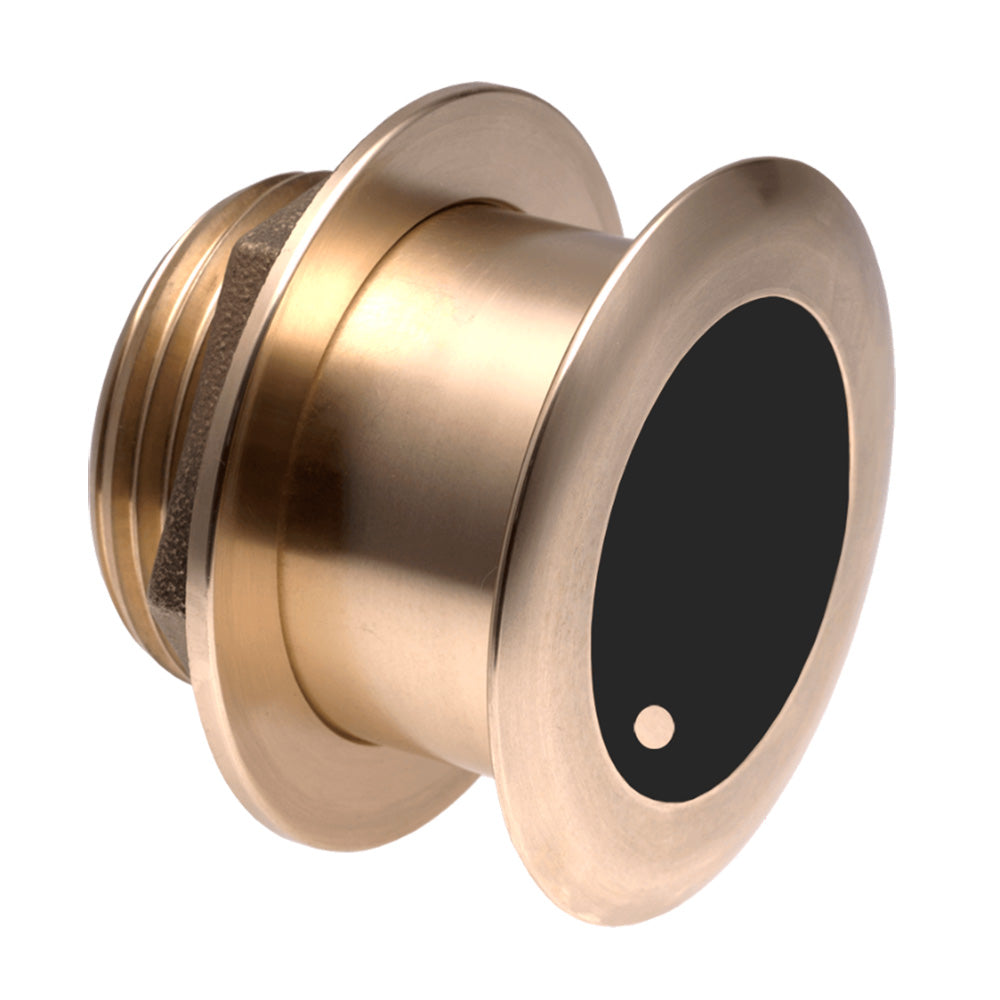

Airmar B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector f/Garmin [B175C-12-MW-12G]

Name: Airmar B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector f/Garmin [B175C-12-MW-12G]
Brand: Airmar
SKU: EM-107583
Price: 1999.00 USD
Availability: InStock

$1,999.00 $2,199.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector for Garmin

Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Features:

Depth and fast-response water-temperature sensor
1 kW with depth tracking down to 400 m (1,300')
Medium frequency: 60-100 kHz
57° to 73° beamwidth (port/starboard)
16° average fore/aft
40 kHz of total bandwidth from one transducer
Medium frequency for superior mid-depth performance and excellent fish-target separation
Bronze housing for use on stepped, planing, or displacement hull
Low-profile, thru-hull housing yields good resolution at speed when installed properly
Exclusive Xducer ID® technology
