Bluewater | SKU: EM-101927

Bluewater 19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1' Lead [9057-3113-1]

Name: Bluewater 19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1' Lead [9057-3113-1]
Brand: Bluewater
SKU: EM-101927
Price: 63.00 USD
Availability: InStock

$63.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

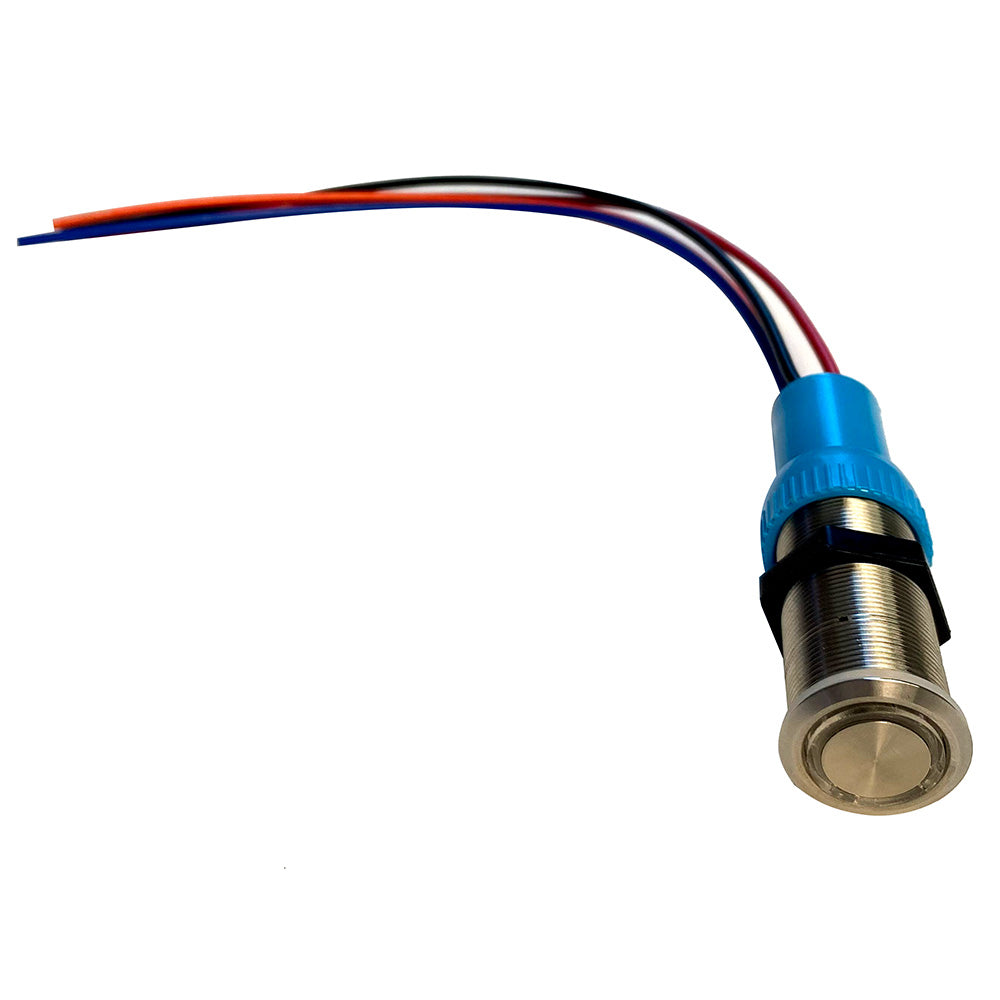

19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an “Off/On/On" standard contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

1 ft. lead

Specifications:

Function: Off-On-On (standard contact)
Off/On: Blue/green
2nd On: Red
Rear Mark Page: Blue dot
Switch Rating: 15A/12 – 24VDC
Material: Stainless steel
Mechanical Life: 50,000 cycles
Electrical Life: 10,000 cycles

Installation:

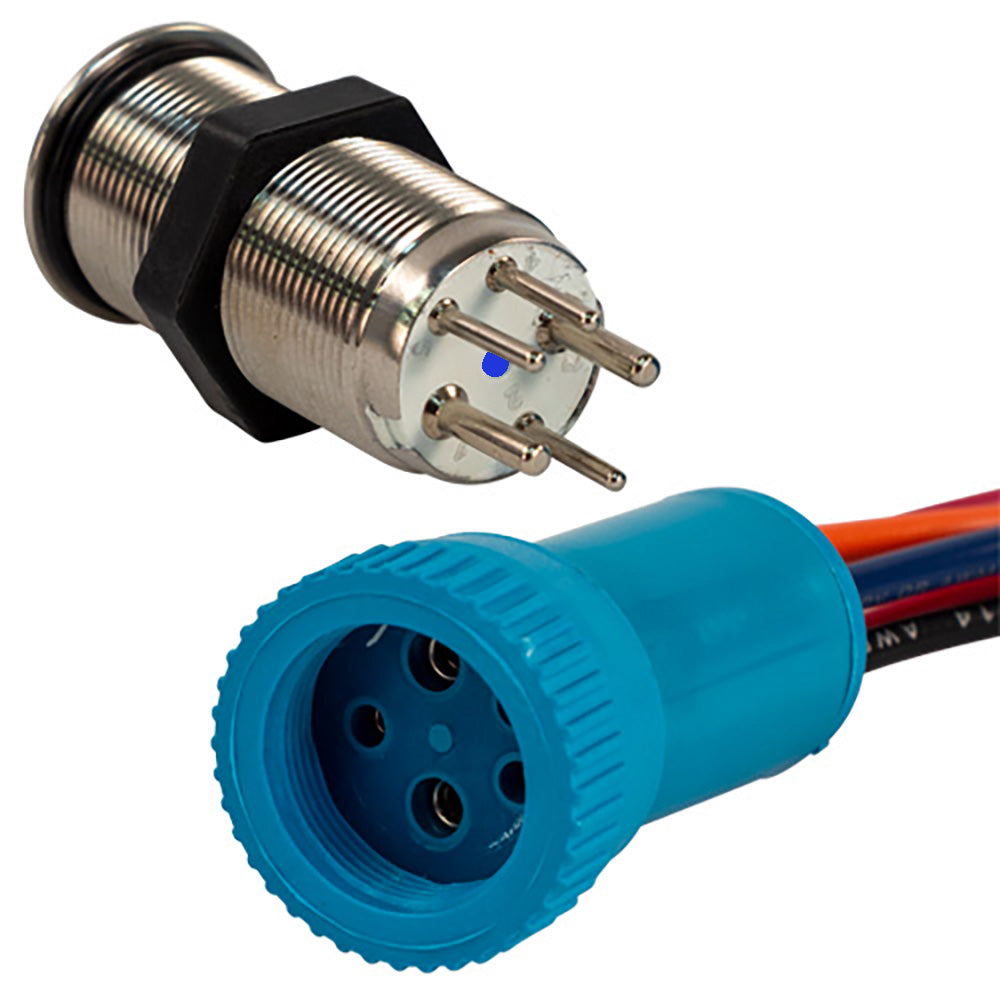

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.
