Echonautics Bronze Stem Thru-Hull CW Dual-Frequency Transducer w/Fairing Block - 600W, 50/200 kHz [CB101D600CW-FB]

Name: Echonautics Bronze Stem Thru-Hull CW Dual-Frequency Transducer w/Fairing Block - 600W, 50/200 kHz [CB101D600CW-FB]
Brand: Echonautics
SKU: EM-107819
Price: 284.99 USD
Availability: OutOfStock

$284.99 $363.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

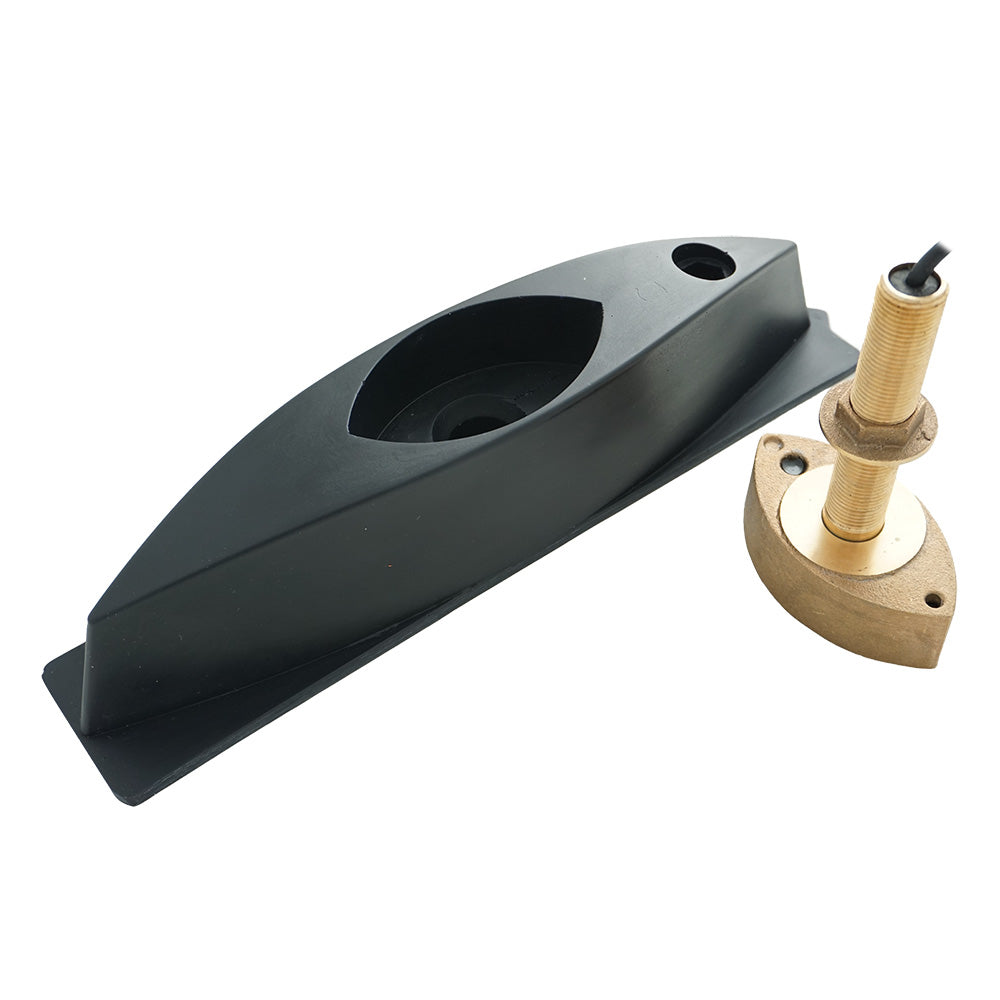

Bronze Stem Thru-Hull CW Dual-Frequency Transducer with Fairing Block - 600W, 50/200 kHz

The cost-effective choice is to get target detail in shallow water as well as good deep-water bottom tracking.

The Echonautics CB101D600 is a stem-thru hull dual frequency CW transducer with a 600W power rating, in bronze housing.

The Fairing Block offers reliable and accurate sonar performance. High-speed performance will increase with high-performance fairing.

Specifications:

Transducer: Dual Frequency CW
Frequency: 50-200 kHz
Beamwidth: 42 degrees/11 degrees
Power: 600W
Mount: Thru-hull with fairing
Material: Bronze

*Warning: Do not install bronze housing into metal hulls.

Fairing Block

Echonautics fairing blocks are made for the thru-hull installation of traditional stem transducers. A fairing block is recommended for the installation of any traditional stem transducers to the vessel's hull to protect the transducer and guarantee excellent performance while the vessel is underway. The fairing block helps to ensure a bubble-free flow of water across the face of the transducer.

Fairing blocks are required for the transducer to match the deadrise angle at the vessel mounting location. The fairing block is used to match the deadrise angle by orienting the transducer's sound beam straight down by mounting the transducer parallel to the water surface.

Echonautics high-performance fairing blocks are made of high-impact polymer and designed for excellent transducer performance even at speeds above 15kn (17MPH).
