Marine thermal cameras are one of the most effective safety upgrades available to offshore and coastal boaters. But with multiple frame rates, lens types, and mounting configurations, choosing the right FLIR thermal camera can feel overwhelming. This guide cuts through the complexity.
Why Thermal Imaging Matters on the Water
Unlike standard low-light cameras that amplify available light, thermal cameras detect heat signatures and work in complete darkness, through fog, smoke, and glare. On the water, that means detecting:
- Debris, logs, and crab pot buoys before you hit them
- Other vessels running without lights
- Persons overboard in cold water
- Wildlife and marine mammals
- Engine heat signatures on approaching vessels
A thermal camera doesn't replace your radar — it complements it by providing a visual heat-contrast image that's intuitive to interpret at a glance.
Understanding Frame Rate: 9Hz vs. 30Hz
Frame rate is one of the first decisions you'll make. Both 9Hz and 30Hz cameras produce high-quality thermal imagery, but they differ in motion handling and export compliance.
- 9Hz — Nine frames per second. Smooth enough for most navigation use cases, including vessel detection, MOB (man overboard) search, and debris avoidance. 9Hz cameras are US export-compliant and the appropriate choice for the vast majority of recreational and commercial boaters.
- 30Hz — Thirty frames per second. Noticeably smoother video, better for high-speed operation and dynamic target tracking. Required for certain commercial, law enforcement, and security applications. Subject to US export controls — check compliance if exporting or operating internationally.
Standard vs. Long Range (LR): When Does It Matter?
The LR (Long Range) models add a continuous optical zoom lens optimized for extended detection distances. If you regularly operate offshore, cross open water passages, or need to identify targets at distance before closing on them, the LR models are worth the premium.
For coastal, inshore, and nearshore boating where detection within a few hundred meters is sufficient, the standard M364C delivers excellent performance without the added complexity of zoom optics.

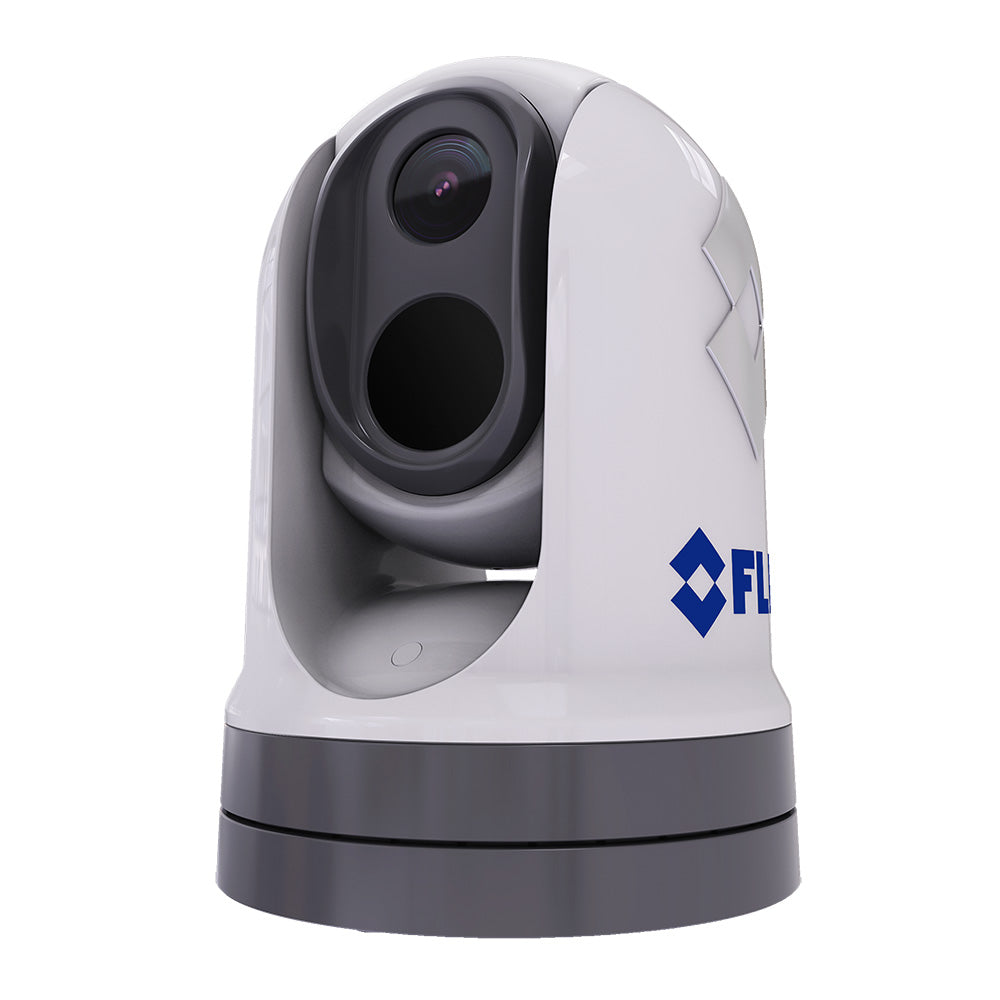

M364C Model Comparison
| Model | Frame Rate | Range | Best For |
|---|---|---|---|
| M364C-USV 9Hz | 9Hz | Standard | Coastal/inshore boaters, NMEA IP integration |
| M364C-USV 30Hz | 30Hz | Standard | High-speed vessels, commercial ops |
| M364C LR-USV 9Hz | 9Hz | Long Range | Offshore passages, large vessel nav |
| M364C LR-USV 30Hz | 30Hz | Long Range | Professional offshore, SAR support |
Integration with Your Chartplotter
All M364C cameras output thermal video over IP and integrate with Raymarine, Garmin, Furuno, and other major MFD chartplotter systems via your vessel's Ethernet network. Video feeds appear directly on your helm display — no separate monitor required.
View the full FLIR M364C thermal camera lineup at Egret Marine and get the right model for your vessel's needs.
