An undersized or failing bilge pump is one of the most overlooked safety risks on recreational vessels — and one of the easiest to fix before it becomes a problem. This guide explains how bilge pumps work, how to size one correctly for your boat, and what common installation errors can make even a good pump useless.
Why Your Bilge Pump Choice Matters More Than You Think
Bilge pumps are the last line of defense against flooding from hull leaks, stuffing box seepage, rain intrusion, and following seas. The U.S. Coast Guard does not specify a required bilge pump capacity for recreational vessels, but ABYC (American Boat and Yacht Council) standards and common practice provide clear guidance. The single most common failure mode is not a defective pump — it’s a pump that’s the wrong size, installed incorrectly, or operating with a clogged strum box.
How to Size a Bilge Pump for Your Boat
Bilge pump capacity is rated in gallons per hour (GPH), but the rated figure is always measured at zero head (no lift). In practice, every foot of vertical rise and every foot of hose run reduces actual output — often by 30–50% from the rated figure.
General sizing guidelines
- Boats under 20 feet: A 500–750 GPH pump is typically adequate as a primary; a smaller 360 GPH float-switch-activated pump as a backup
- Boats 20–30 feet: 1,100–1,500 GPH primary; 500 GPH secondary
- Boats 30–40 feet: 2,000–3,500 GPH primary; a second 1,500 GPH pump as backup
- Boats over 40 feet: Multiple pumps with high-capacity primaries (3,500+ GPH); consider a high-volume emergency pump accessible from the cockpit
The rule of thumb many marine technicians use: Size up. Bilge pump capacity is inexpensive insurance. A pump rated 500 GPH too large costs a few extra dollars; an undersized pump during a flooding emergency costs everything.
Automatic vs. Manual Bilge Pumps
Automatic (float-switch) pumps
- Activate when bilge water rises to a set level, then shut off automatically
- Essential for unattended boats and overnight passages
- Float switches can fail — test yours regularly by pouring water into the bilge
- Electronic (no-moving-parts) float switches are more reliable than mechanical ones in dirty or oily bilges
Manual-only pumps
- Require crew activation; appropriate as a secondary or emergency pump
- Diaphragm-style manual bilge pumps with large handles can move significant water volume and have no electrical dependency — valuable during electrical failures
Rule of thumb: Every boat should have at least one automatic pump and one manual backup. The manual pump should be capable of operation without electricity.
Bilge Pump Installation: What Matters Most
Even the best bilge pump fails if it’s poorly installed. Key factors:

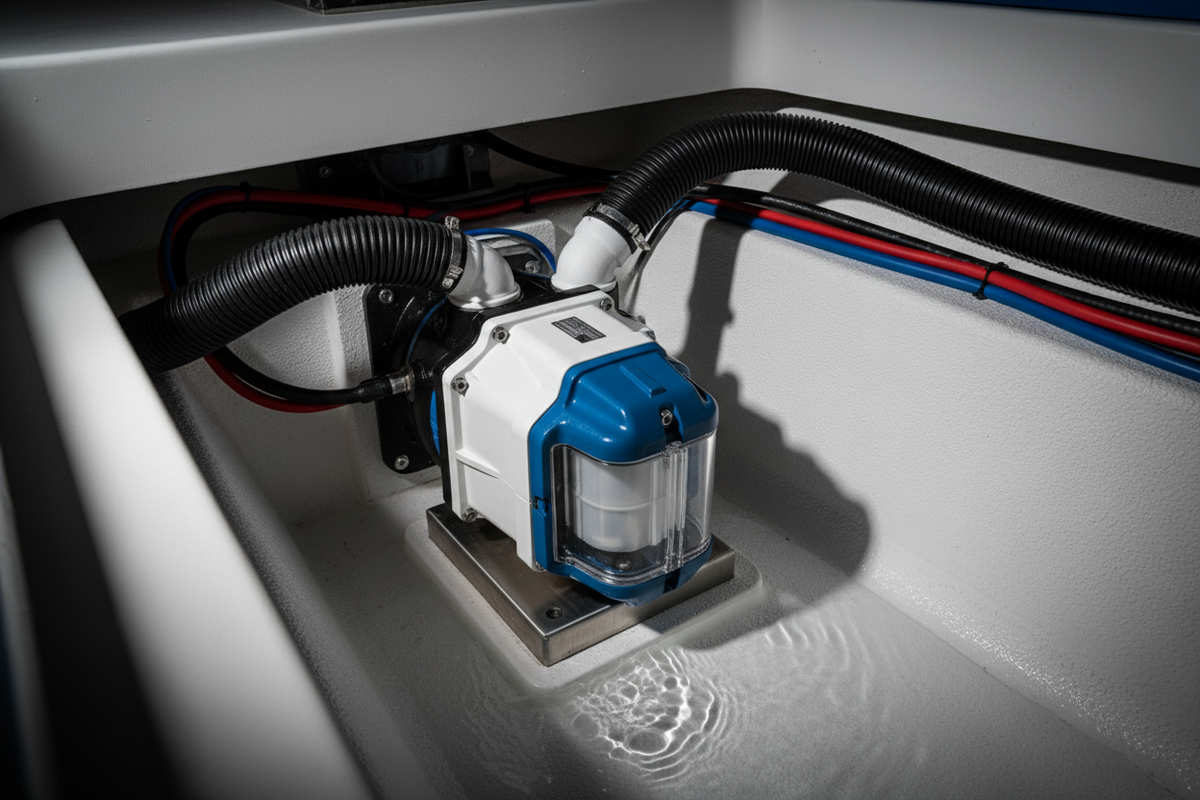

- Placement: The pump intake should be at the lowest point of the bilge — not near a frame or stringer that traps water elsewhere
- Strum box: The strainer on the pump intake must be clean and clear; a clogged strum box can reduce flow to near zero and burn out the motor
- Hose run: Minimize bends, keep hose runs as short and direct as possible, and ensure the discharge is above the waterline with an anti-siphon loop or vented loop to prevent backflow
- Wiring: Use marine-grade tinned copper wire sized for the pump’s amperage draw; protect connections with heat-shrink terminals in a bilge environment
- Dedicated circuit: Bilge pumps should be wired directly to the battery (through a fuse), not through the main switch — so they continue operating even when the house circuit is off
Common Bilge Pump Mistakes to Avoid
- Relying on a single pump with no backup. Pumps fail at the worst moments. Redundancy is not optional on offshore or overnight vessels.
- Not testing the float switch. A float switch that sticks in the off position gives no warning until the bilge is already flooding.
- Ignoring the strum box. Inspect and clean it every season at minimum — more often if you operate in muddy or weedy water.
- Running hoses with unnecessary loops. Every unnecessary bend or dip creates a potential siphon point and reduces flow.
- Undersizing for a higher-volume application. Calculate actual output (accounting for head pressure) — not just the rated GPH on the box.
- Using non-marine wiring. Automotive wire lacks the tinned conductors and flexibility needed to resist the moisture and vibration of a marine environment.
What to Look for When Shopping for a Marine Bilge Pump
- Actual vs. rated GPH: Look for manufacturers that publish performance curves showing output at 1-foot, 3-foot, and 5-foot head — not just the zero-head figure
- Float switch type: Electronic switches with no moving parts are more reliable in oily bilges; confirm compatibility with your pump
- Construction: Corrosion-resistant housing and impeller materials are non-negotiable in a saltwater environment
- Amperage draw: Match to your electrical system capacity and wire gauge; high-capacity pumps require heavier wiring
- Serviceability: Choose pumps with replaceable impellers and available service parts — the motor housing should be openable for field repairs
