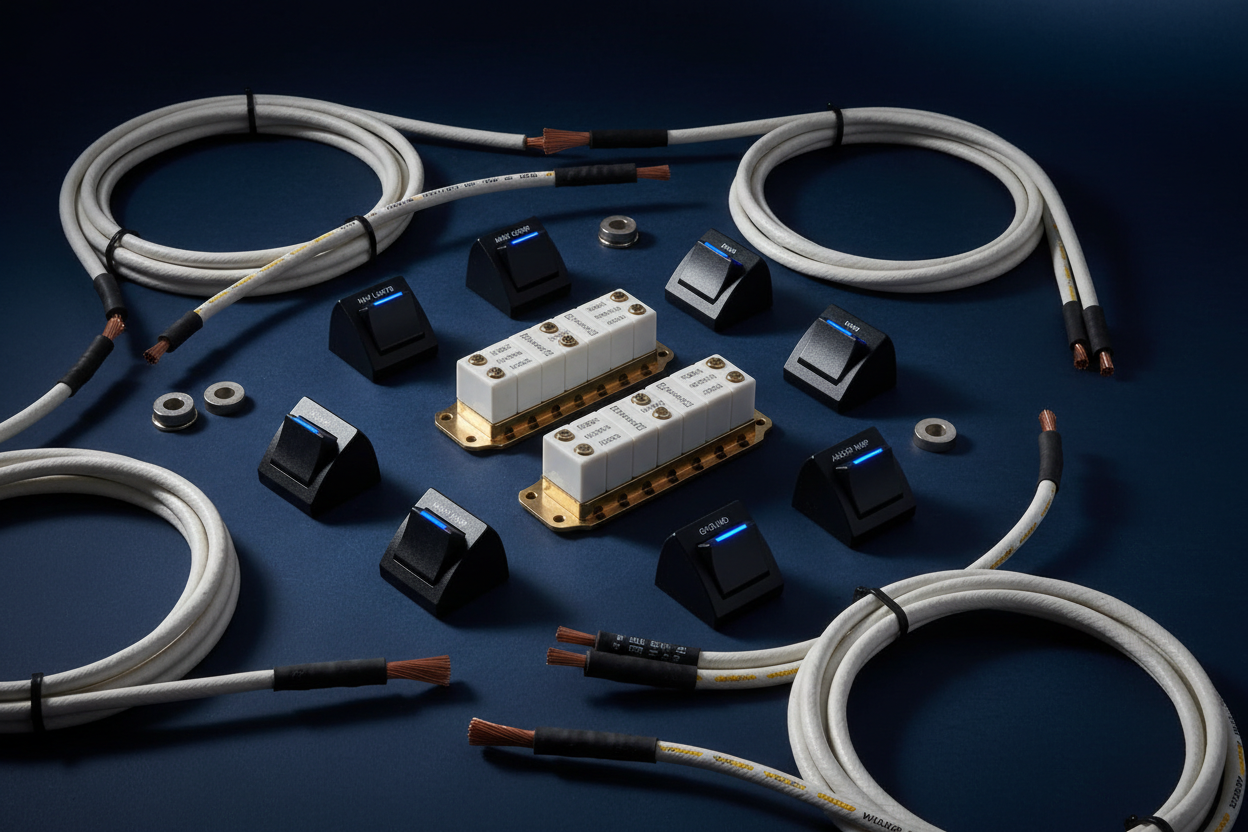

Why Marine Electrical Wiring Is Different
Boat wiring operates in one of the harshest environments imaginable: constant vibration, salt air, moisture, and temperature swings that would destroy standard automotive or residential wiring within a season. The ABYC (American Boat and Yacht Council) publishes electrical standards specifically for marine use, and for good reason — an electrical fire at sea is a life-threatening emergency with no fire department to call.
Understanding the key components of a marine electrical system — and why marine-specific versions matter — will help you make better decisions whether you're doing a full rewire or just adding a new circuit.
Marine-Grade Wire and Cable
The single most important upgrade you can make to any boat wiring project is using tinned copper wire. Standard bare copper oxidizes rapidly in marine environments, increasing resistance and creating potential failure points. Tinned copper wire has a thin coating of tin on each strand that dramatically slows corrosion.
Wire Sizing
Always size wire for both the amperage load and the voltage drop over the run length. ABYC recommends no more than 3% voltage drop for critical systems (navigation lights, bilge pumps) and 10% for non-critical loads. Use an ABYC wire sizing chart or online calculator — don't guess.
- Use stranded wire, not solid wire. Solid wire fatigues and breaks under vibration.
- Use marine-rated insulation (SGX or GXL rated) that resists oil, fuel, and UV.
- Color-code your wiring per ABYC standards to make future troubleshooting easier.
Terminal Blocks
Terminal blocks are the backbone of a clean, serviceable marine electrical system. Rather than splicing wires together with connectors buried in a bilge, terminal blocks give you a central, accessible point to distribute power and make connections.
What Makes a Good Marine Terminal Block
- Tinned copper or nickel-plated brass bus bars — not aluminum, which corrodes rapidly in marine environments.
- Covered or insulated design to prevent accidental shorts from tools or debris.
- Adequate amperage rating for the total load on that bus.
- Mounting flexibility — DIN rail or direct panel mount depending on your installation.
Blue Sea Systems Terminal Blocks
Blue Sea Systems is the gold standard for marine electrical components. Their terminal blocks feature tin-plated copper bus bars, clear polycarbonate covers, and modular designs that let you expand your distribution system as your electronics load grows. Blue Sea products are ABYC-compliant and used by professional marine electricians and boatbuilders worldwide.
Marine Switches and Panels
Every circuit on your boat should be individually switched and fused. A proper switch panel gives you control over each load and makes it easy to isolate a circuit if something goes wrong.
Switch Types
- Rocker switches: The most common type for marine panels. Look for sealed, waterproof versions rated for the amperage of the circuit they control.
- Toggle switches: Durable and tactile, good for high-use circuits. Ensure they're rated for DC use — AC-rated switches behave differently at 12V DC.
- Circuit breaker panels: Combine switching and overcurrent protection in one unit. Blue Sea's 360 Panel and SafetyHub series are popular choices for clean, professional installations.
Overcurrent Protection
Every ungrounded conductor must be protected by a fuse or circuit breaker as close to the power source as practical — within 7 inches of the battery or bus bar per ABYC E-11. Don't skip this step. An unprotected wire that shorts can start a fire before you even smell smoke.
Connectors and Terminations
How you terminate wires is just as important as the wire itself. Avoid wire nuts entirely — they're not rated for marine use and will corrode and loosen over time.
- Heat-shrink crimp connectors: The marine standard. The adhesive-lined heat shrink seals out moisture after crimping. Use a proper ratcheting crimper, not pliers.
- Ring terminals: For connections to terminal blocks and bus bars. Always use the correct size for the stud diameter.
- Butt connectors: For inline splices. Use heat-shrink versions and stagger splices so they don't all land in the same spot.
A Note on System Design
Before you start running wire, sketch out your electrical system. Know your loads, calculate your wire sizes, plan your routing to keep DC positive and negative runs together (reduces electromagnetic interference), and identify where your terminal blocks and fuse protection will live. A few hours of planning prevents days of troubleshooting later.
Blue Sea Systems offers free wiring diagrams and system design resources on their website — a valuable starting point for any wiring project.
Summary
Marine electrical work rewards careful component selection and clean installation practices. Use tinned copper wire, properly rated terminal blocks, sealed switches, and heat-shrink terminations throughout. Blue Sea Systems products cover virtually every component you'll need and are backed by decades of marine industry trust. Do it right the first time and your electrical system will be reliable for years to come.
