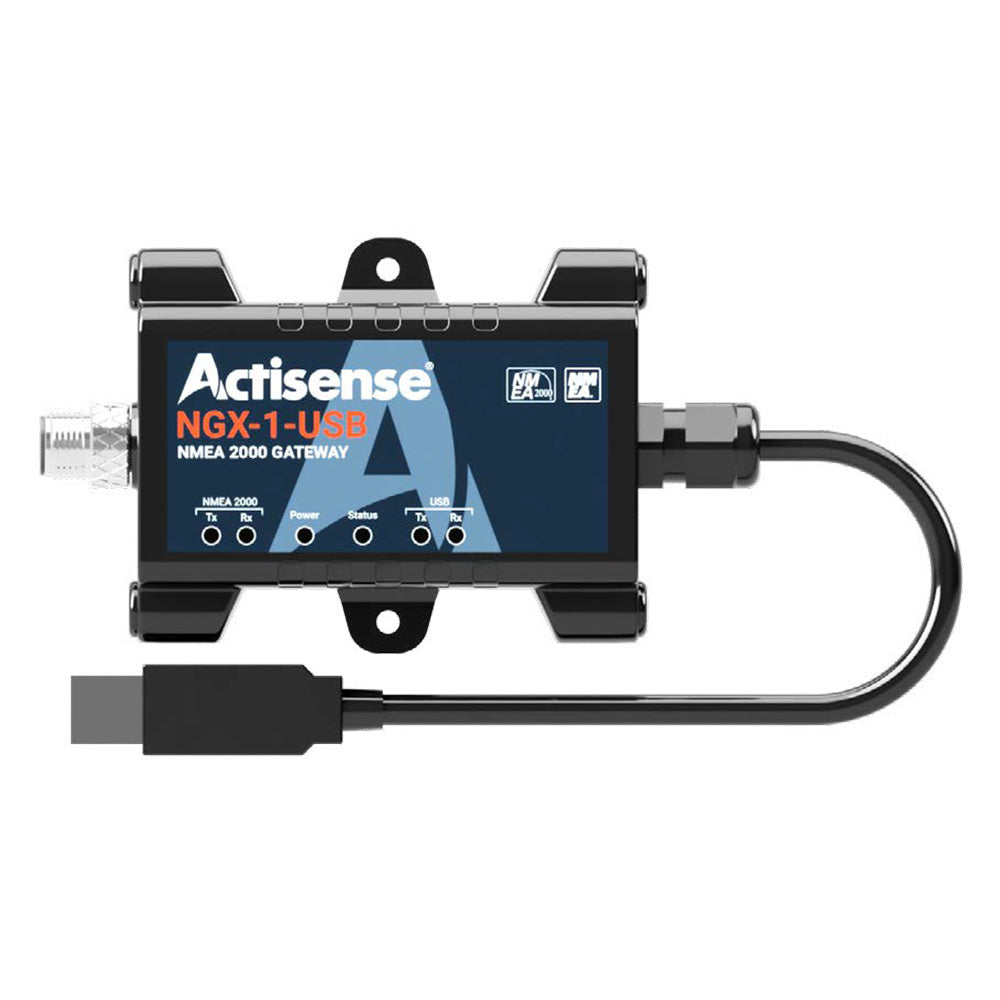

Actisense 0183 to N2K Gateway w/PC Interface, USB Connection [NGX-1-USB]

Actisense  |  SKU: EM-102318  |  Barcode: 5060998710560
Sold out
$30.72 off
$276.45 $307.17

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

0183 to N2K Gateway with PC Interface, USB Connection

Intelligent Gateway technology enables PC interfacing and NMEA data conversion…

The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.

Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.

Features:

  • View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
  • View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
  • Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
  • Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
  • Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
  • Vital NMEA 2000 diagnostic tool
  • Fully isolated to prevent dangerous ground loops
  • Up to 230,400 baud data transfer rate
  • Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
  • Supports Fast Heading at 10Hz
  • Multiple diagnostic LEDs
  • Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
  • Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
    • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
    • Configure and flash-update Actisense products on the bus
    • Upgrade NMEA 0183 equipment to NMEA 2000
    • Allow NMEA 0183 devices to receive vital NMEA 2000 data
    • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
    • Reliable, renowned bi-directional conversion engine
    • Supports a wide range of conversions including AIS
    • Easily configurable using Actisense Toolkit

Technical Specifications

Power Supply

  • Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
  • Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
  • Load Equivalent Number (LEN) - 2

NMEA 2000 Port

  • Speed / Baud Rate - 250kbps
  • Connectivity - M12 Male (A coded)

USB Port

  • Compatibility - USB 1.1, 2.0 and 3.0
  • Speed / Baud Rate - 4800 to 230400 Baud
  • Connectivity - Male type A plug moulded onto cable
  • Cable Length - 1.8m

Isolation

  • NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V

Mechanical

  • Housing Material Body - Flame retardant Polycarbonate
  • Housing Material End Caps - Flame retardant PBT
  • Weight - 113g

Approvals and Certifications

  • NMEA 2000 - NMEA 2000 Certified
  • NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements
  • RoHS and REACH - Compliant
  • Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
  • EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
  • Environmental Protection    IP67
  • Operating Temperature    -25°C to +70°C
  • Storage Temperature    -30°C to +70°C
  • Recommended Humidity    0 to 93% RH @ 40°C
  • Guarantee    3 years, extended to 5 years upon registration
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Data Interface: NMEA 0183
  • Box Dimensions: 2"H x 6"W x 6"L WT: 0.5 lbs
  • UPC: 5060998710560

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
