Airmar  |  SKU: EM-114597  |  Barcode: 801769002492

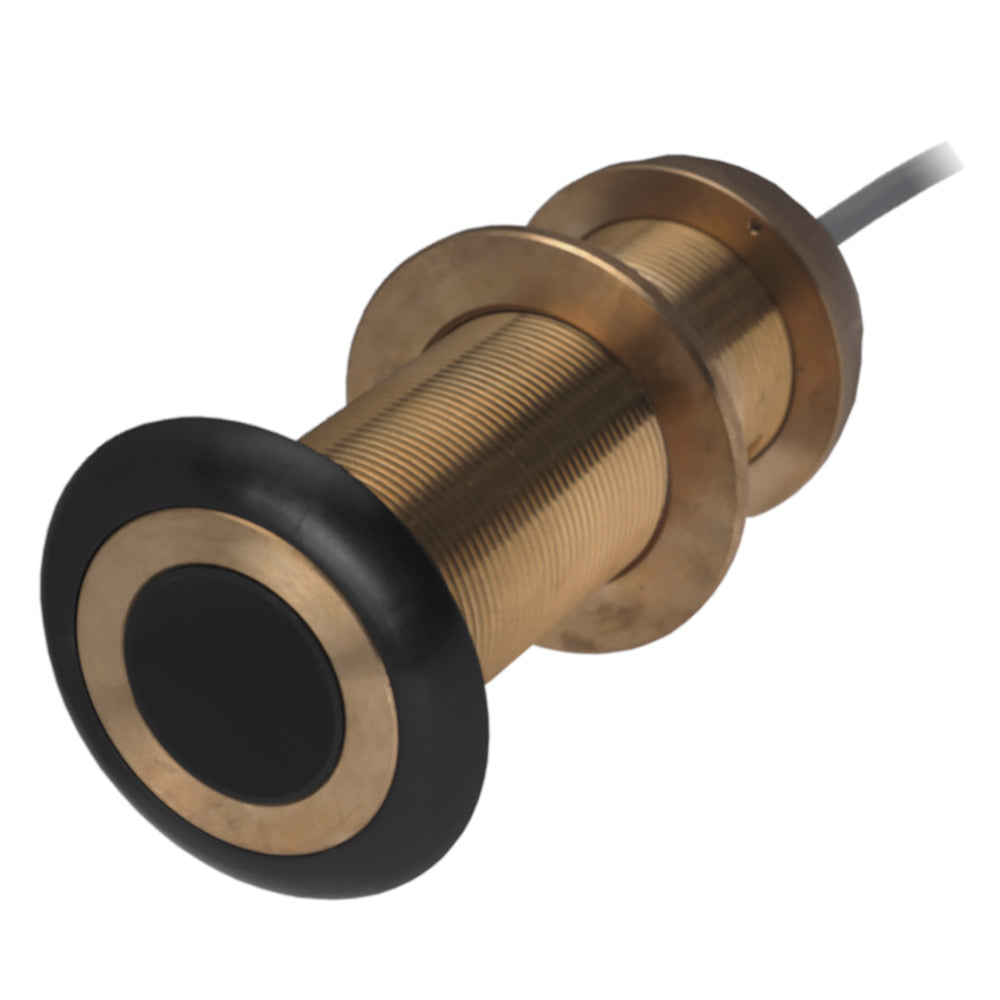

Airmar DT800 NMEA 2000 Bronze Retractable Long Stem Thru-Hull w/Depth Temperature [DT800L-235-N2]

$853.53 $939.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.
39
13

Product Details

DT800 NMEA 2000 Bronze Retractable Long Stem Thru-Hull with Depth & Temperature

The DT800 utilizes Airmar’s proven Tilted Element and broadband technologies in this depth and temperature Smart™ Sensor. The DT800 is a long-stemmed, low-profile, retractable, thru-hull sensor that accurately computes depth and temperature data and sends it to any NMEA 2000® network. Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible network or display.

The ceramic is tilted inside the housing, compensating for hull deadrise and orienting the transducer beam straight down. This results in strong echo returns and accurate depth readings. The DT800 is sold with a choice of rugged housings—plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will give accurate readings at high speeds. The housing features a water valve that minimizes water entering the boat when the retractable insert is being removed and replaced with the blanking plug.

Features:

  • Depth and fast-response water-temperature sensing
  • Depth performance from 0.5 to 183 m (1.6 to 600')
  • 235 kHz frequency prevents mutual interference with other echosounders on the vessel
  • NMEA 2000 standard
  • Retractable insert for cleaning and safe storage

Specifications:

  • Display Connector: NMEA 2000 Micro
  • Power Rating: 100 W
  • Functions: Depth, Temperature
  • Material: Bronze
  • Mounting Style: Low Profile Thru-Hull
  • Tilt Angle: 0°
  • Deadrise Range: Up to 12° w/out fairing. Up to 28° with fairing
  • Hull Material: Fiberglass or wood
  • Usable Shaft Length: 102 mm (4.00")
  • Hole Size: 51 mm (2")
  • Frequency Band: 235 kHz
  • Voltage: 9 to 16 VDC
  • Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
  • Country of Origin: USA
  • Temperature Accuracy: ±0.5°C (±1.8°F)
  • Cable Length: NMEA 2000®: 6 m (20')
  • Conventional Beam: 12°
  • Data Rate: 1X per second
  • Max Deadrise Angle: 28°
  • Speed Range: Up to 45 knots
  • Tilted Element: Yes
  • Weight: 3.9 kg (8.7 lb.)
  • Max Depth: 0.5 to 180 m (1.6 to 590')
  • Water Temperature: -10° to 40°C (14° to 104°F)
  • Acoustic Window: Urethane
