Analytic Systems  |  SKU: EM-77026

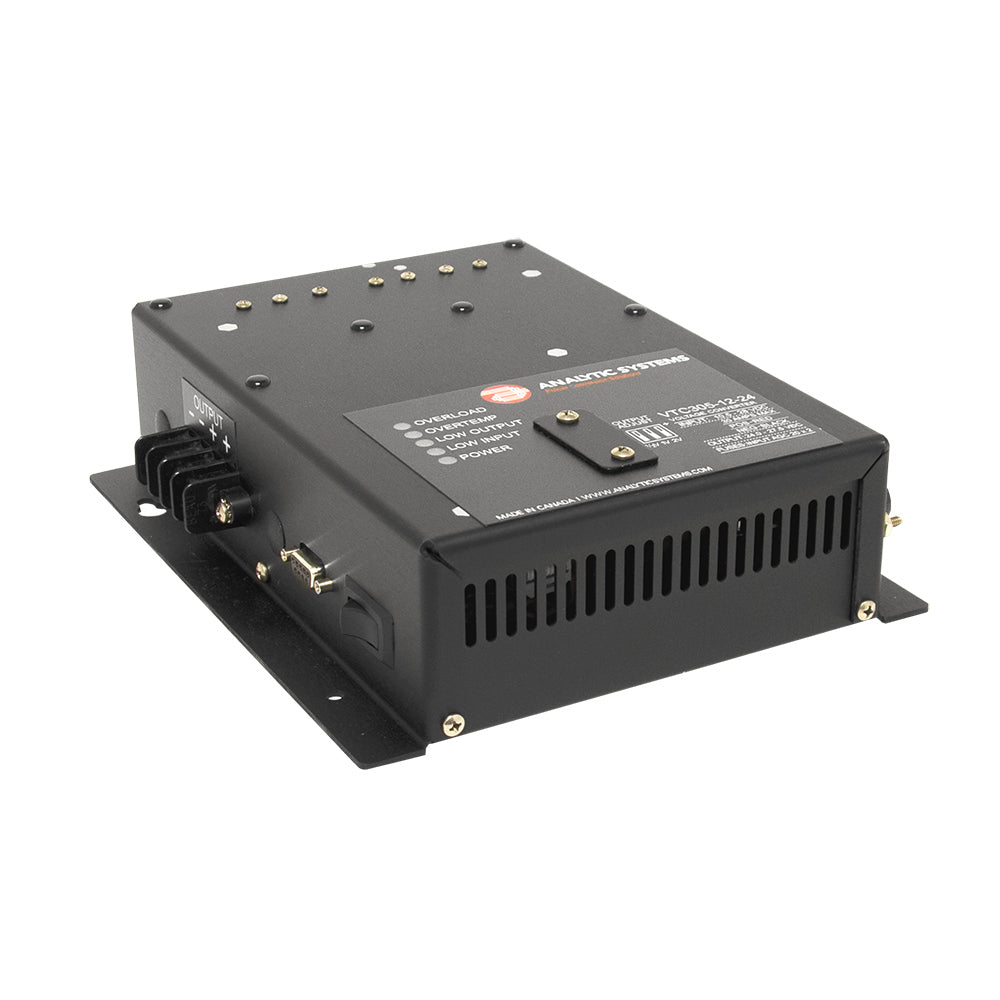

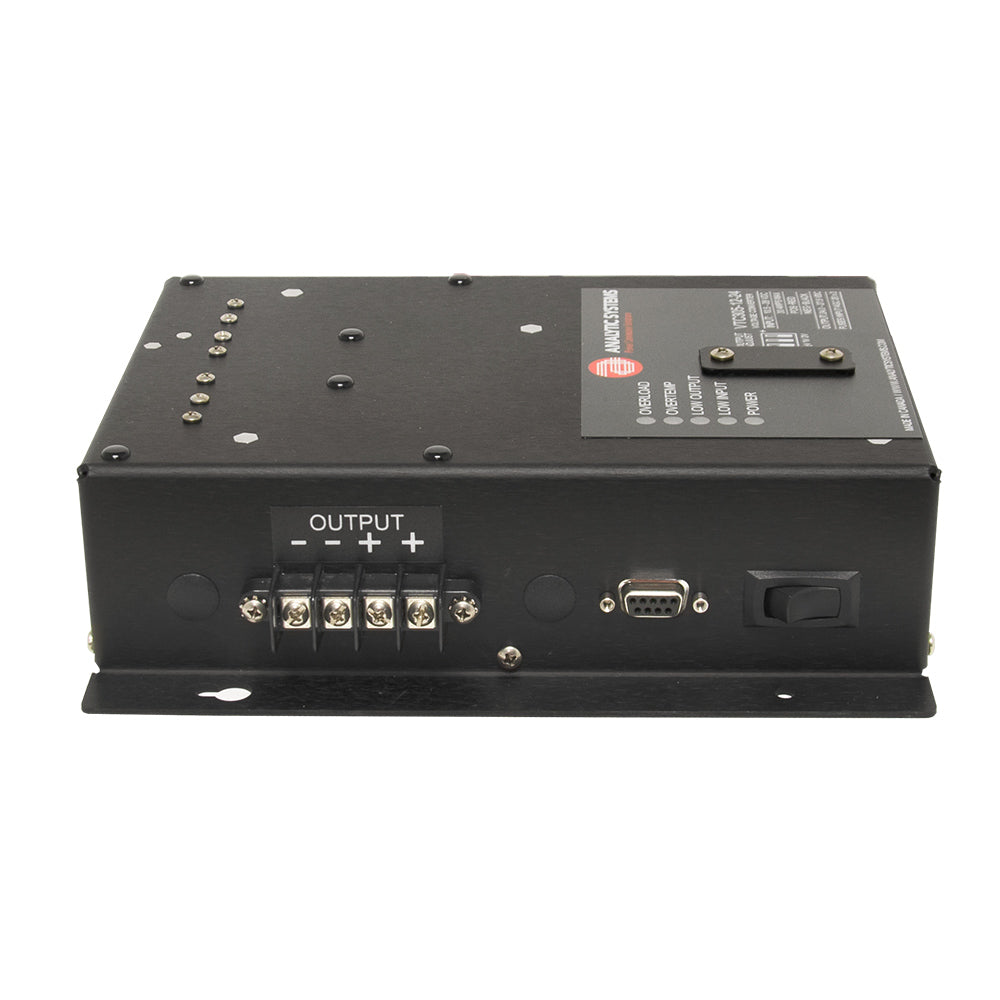

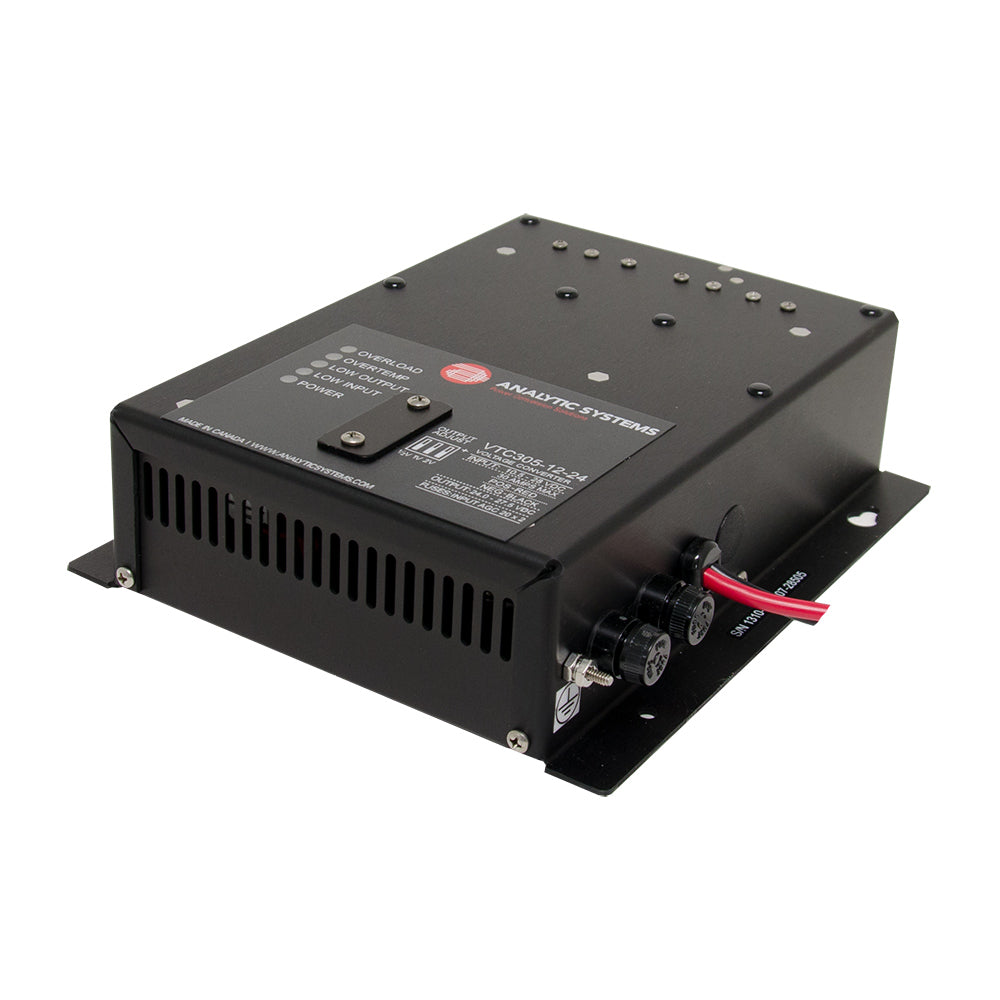

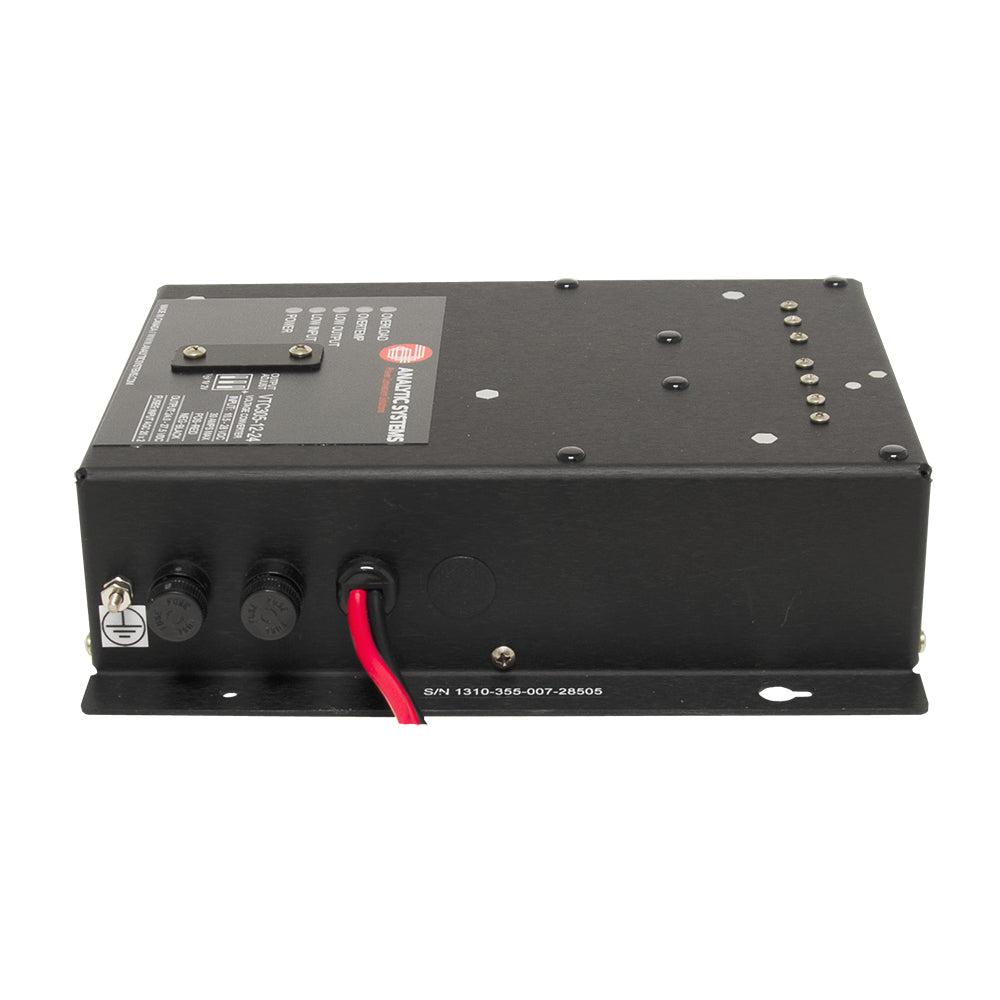

Analytic Systems Non Iso DC/DC Converter 13A, 24V Out, 11-15V In [VTC305-12-24]

$627.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

Non Iso DC/DC Converter 13A, 24V Out, 11-15V In

Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system. Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include a dry contact alarm relay output, and remote panel monitoring with On/Off control. Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12 and 24 VDC power systems in marine, automotive or aeronautical environments and more.

Features:

  • Ultra-quiet
  • Rugged and reliable to ensure years of safe and trouble free operation
  • Simple operation
  • Current limiting protection
  • Paralleling Diodes
  • European ROHS Compliant (Lead Free Manufactured)
  • Electric Fork Lift (Filtering and Surge Suppression)
  • Open Frame (No chassis just heat sink bars)
  • Safety Special Inspection (CSA/UL)
  • Heavy duty ruggedization with wide temperature range
  • Custom input/output available
  • Three year parts and labour warranty

Specifications:

  • Charger Input - Voltage: 12v
  • Charger Output - Amps: 13a
  • Charger Output Voltage: 24v
  • Box Dimensions: 7"H x 11"W x 12"L WT: 4.85 lbs
