Description

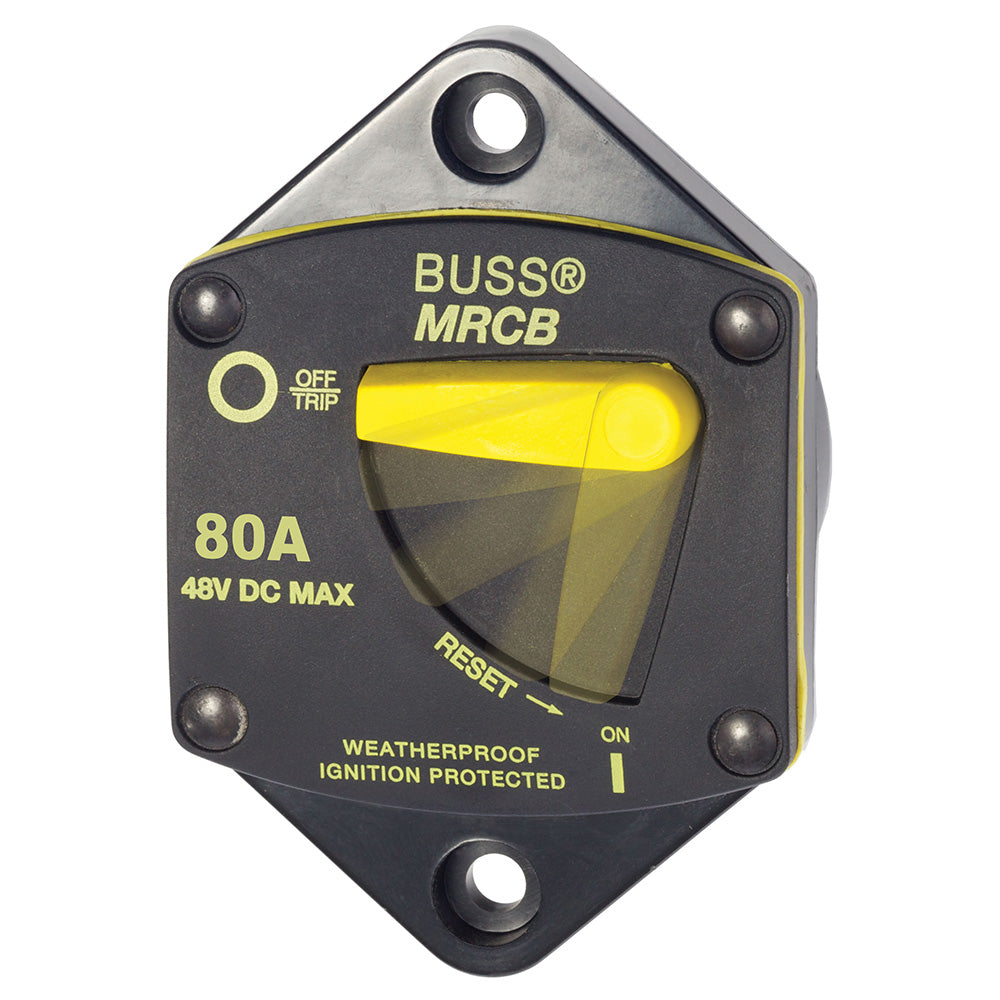

7042 187-Series Circuit Breaker - Panel Mount 80A

Features:

Combines switching and circuit protection into a single device*
Precise, single-lever operation
"Trip Free" design cannot be held "ON" during fault current condition
Waterproof
Recessed mounting holes for clean appearance
Ample Clearance around terminal studs accepts heavy gauge wire lugs
Robust 5/16 M8 terminals provide high torque connections
Large lever with vertical/horizontal orientation provides indication of trip status
Ignition-protected - Safe for installation aboard gasoline powered boats

Specifications:

Amperage: 80A
Maximum Voltage: 48V DC
Mounting: Panel Mount
Circuit Breaker Type: Thermally responsive Bi-metal blade
Terminal Stud Torque: 75 in-lb (8.47 Nm)
Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Case Material: Thermoset Polyester
Circuit Breaker Class: Type III - switchable/manual reset - trip-free
Mounting Hole: Accept #10 (M5) Screw
Terminal Stud Size: 5/16" - 18
Weight: 0.5lb (0.23 kg)
Weight: 0.50lb (0.23 kg)

* Do not use as a switch where high inrush currents are expected.
