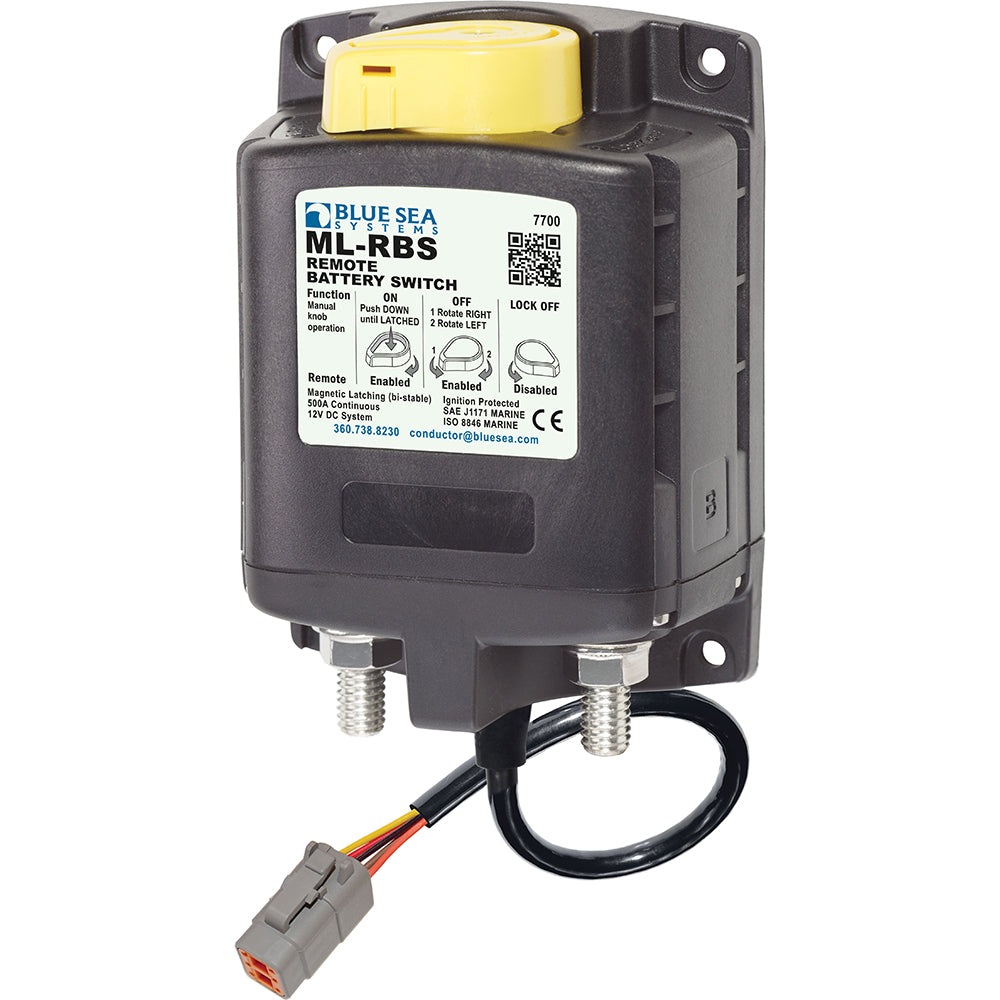

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control Deutsch Connector [7700100]

Name: Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control Deutsch Connector [7700100]
Brand: Blue Sea Systems
SKU: EM-81410
Price: 181.99 USD
Availability: InStock

$181.99 $297.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Features:

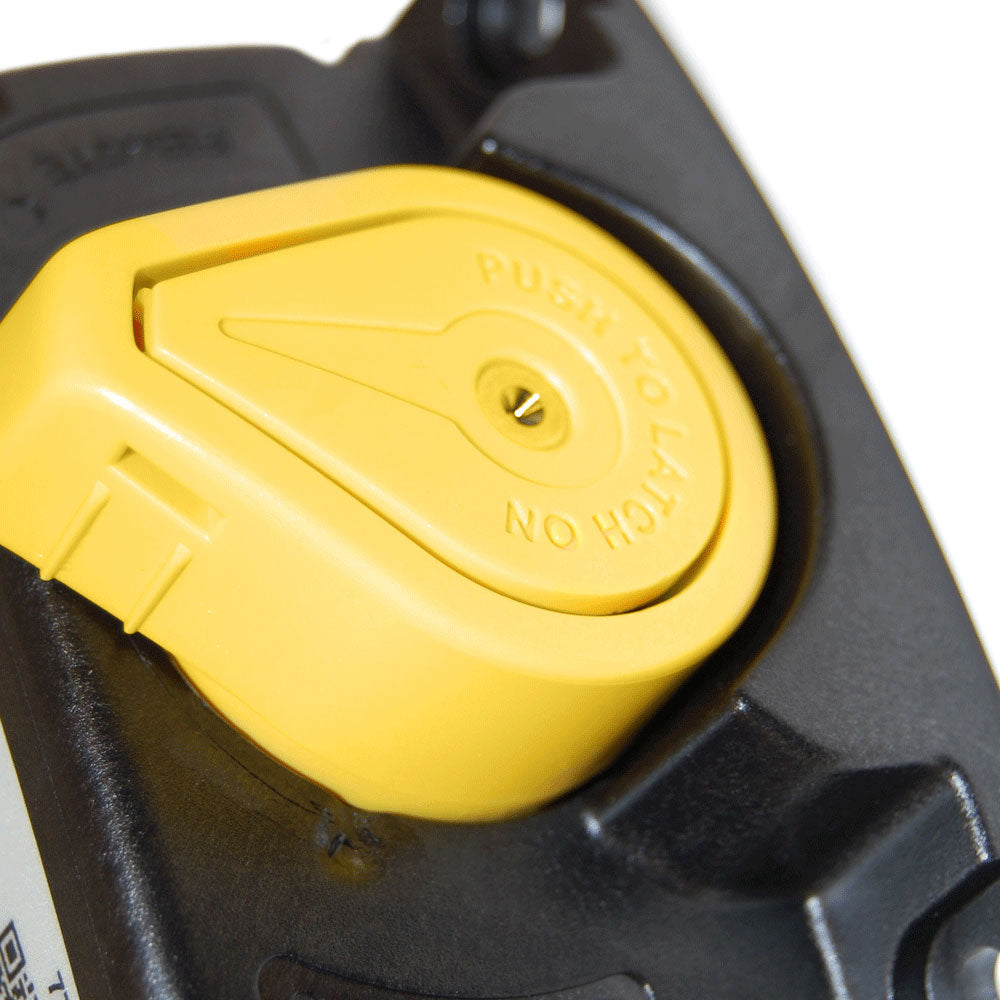

Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
LED output to remotely indicate switch state - requires optional LED
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7/8" (22 mm) stud length accepts multiple cable terminals
Label recesses for circuit identification
Silver alloy contacts provide high reliability for switching live loads

Specifications:

Control Circuit Connection: Deutsch DTM
Nominal Voltage: 12VDC
Coil Function: Bi-Stable
Mounting: #10
Amperage Operating Current Continous: 0mA
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 30 Seconds: 1450A DC
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A@12VDC
Master Control Switch Capability: No
Mechanical Endurance: 100,000 Cycles
Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
Terminal Stud Length: 0.875" (22.23 mm)
Terminal Stud Size: 3/8" - 16 (M10)
Weight: 1.75lb (0.79 kg)
