Blue Sea Systems  |  SKU: EM-81398  |  Barcode: 632085770112

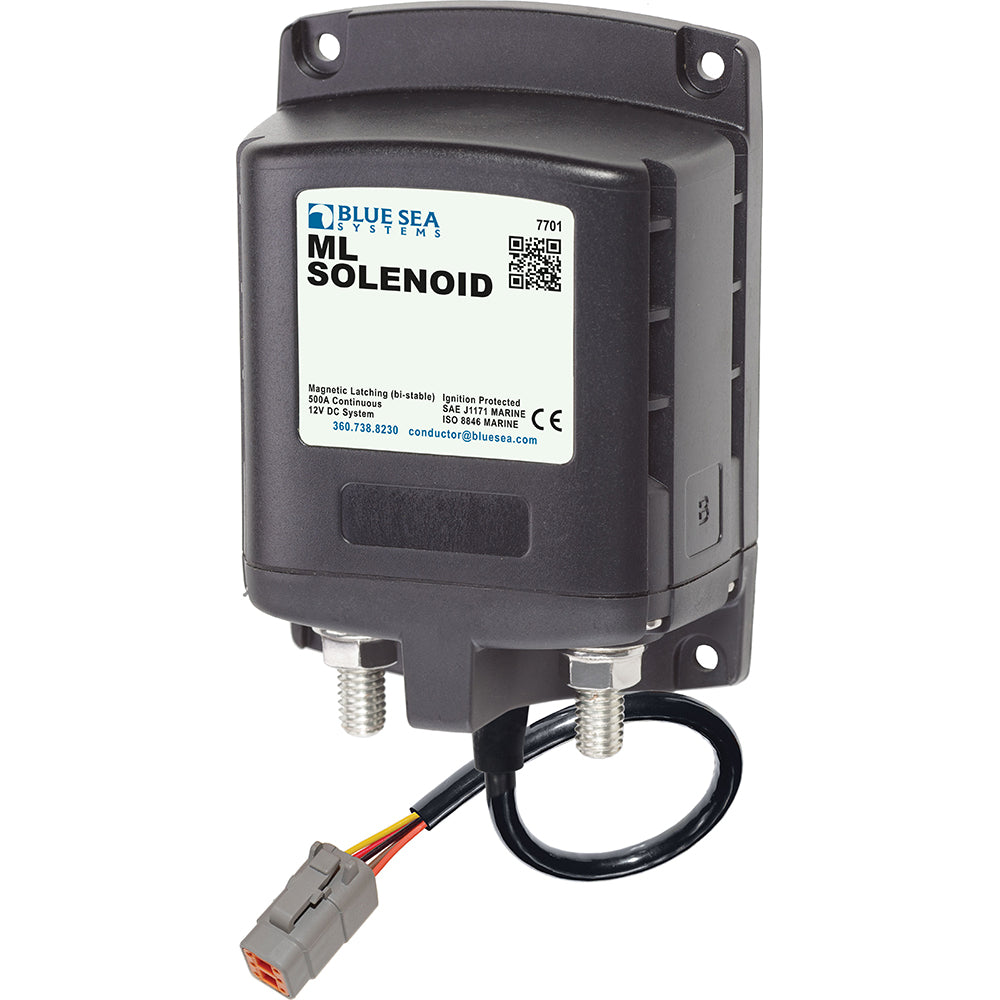

Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100]

$197.99 $247.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

7701100 ML Solenoid 12V 500A with Deutsch Connector

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

  • 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
  • Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
  • Silver alloy contacts provides high reliability for switching live loads
  • 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Specifications:

  • Control Circuit Connection: Deutsch DTM
  • Nominal Voltage: 12VDC
  • Manual Control: No
  • Coil Function: Bi-Stable
  • Mounting: #10
  • Amperage Operating Current Continous: 0A
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 500A
  • Intermittent Rating: 700A (5 min)
  • Cable Size to Meet Ratings: 2x (4/0)
  • Stud Material: Tinned Copper
  • Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
  • Terminal Stud Length: 0.875" (22.23 mm)
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.75lb (0.79 kg)
