Egis 200A Surface Mount 87 Series Circuit Breaker [4704-200]

Name: Egis 200A Surface Mount 87 Series Circuit Breaker [4704-200]
Brand: Egis Mobile Electric
SKU: EM-103527
Price: 55.99 USD
Availability: OutOfStock

$55.99 $83.90

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

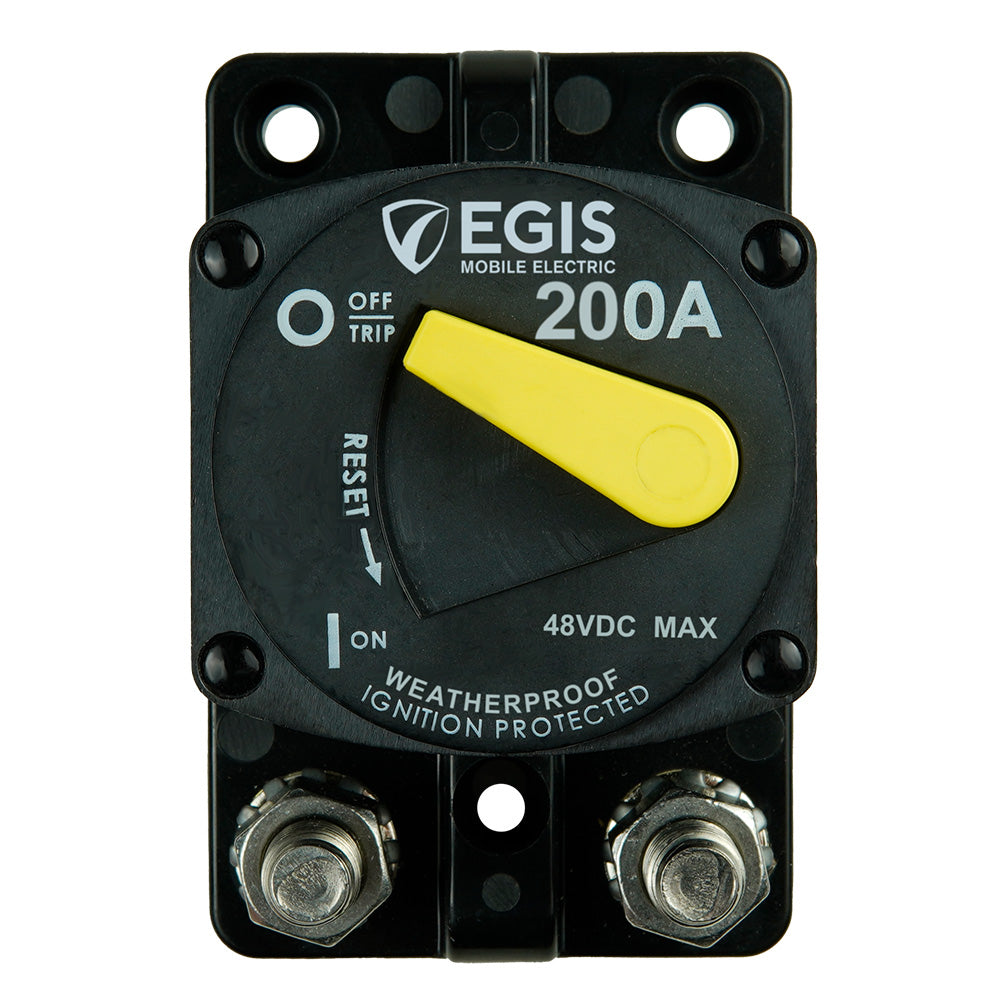

200A Surface Mount 87 Series Circuit Breaker

This 200A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
High voltage (48 Vdc) rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
High electrical/manual switching endurance delivers 2,000 cycles at full current
High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power
4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

Continuous Current Amps: 200
Max Voltage: 48
Cycling Endurance: 2,000
Interrupt Current @14 VDC (Amps): 5,000
Interrupt Current @28 VDC (Amps): 3,000
Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Reinforced Mounting

Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.
