Egis Mobile Electric  |  SKU: EM-103469  |  Barcode: 850053879364

Egis 40A Panel Mount Mini Circuit Breaker [4701-40]

Sale price $37.99 Regular price $45.10

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.


Product Details

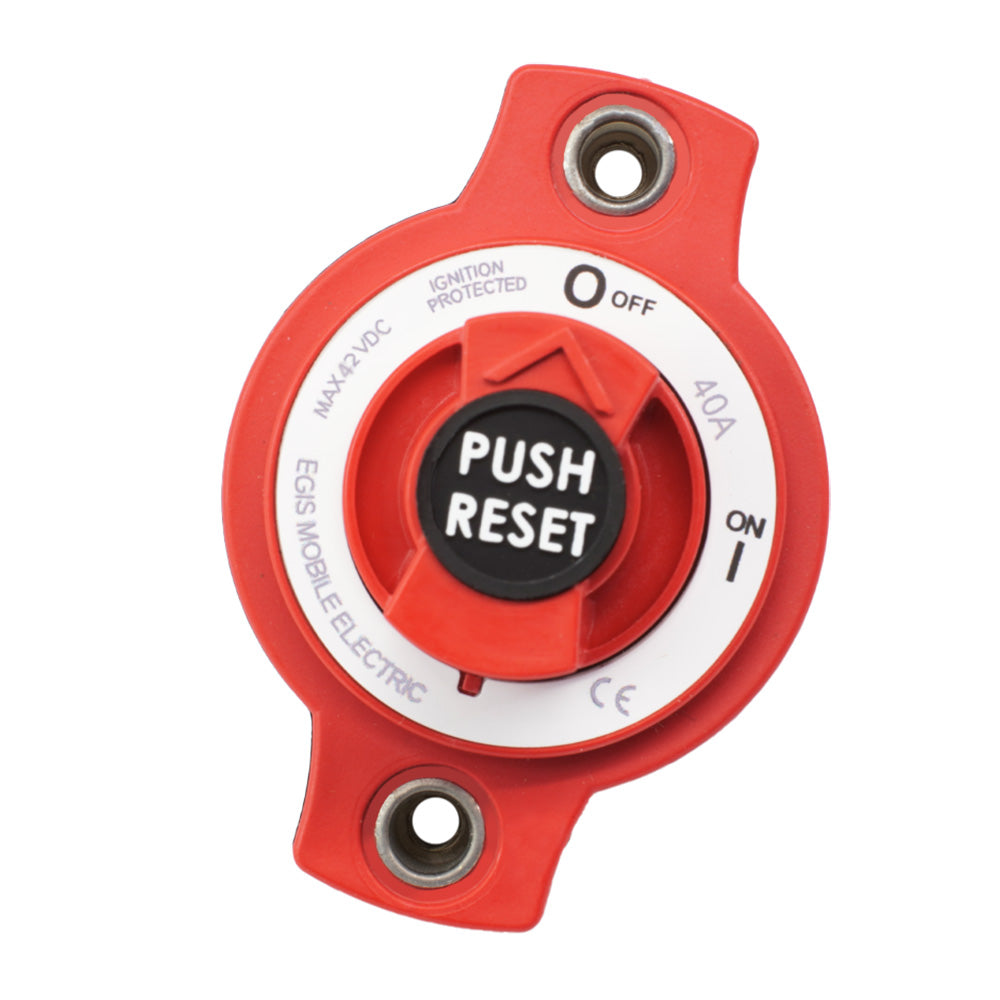

40A Panel Mount Mini Circuit Breaker

This 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.

Applications:

  • Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
  • Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
  • Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

  • IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
  • High electrical and manual switching endurance delivers 2,000 cycles at full current
  • High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

  • Continuous Current Amps: 40
  • Max Voltage: 42
  • CE Marked: Yes
  • Interrupt Current @14 VDC (Amps): 3,000
  • Cycle Switching Endurance: 4,000
  • Ingress Protection Rating: IP66

Focal Features

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.

Compact Size

Fit more circuit switching/protection on a smaller panel!

Proudly Made in the USA

Made in the USA of high-quality components.

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 40a
  • Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs
  • UPC: 850053879364

Quick Guide (pdf)
