Egis Mobile Electric  |  SKU: EM-107422  |  Barcode: 850067590064

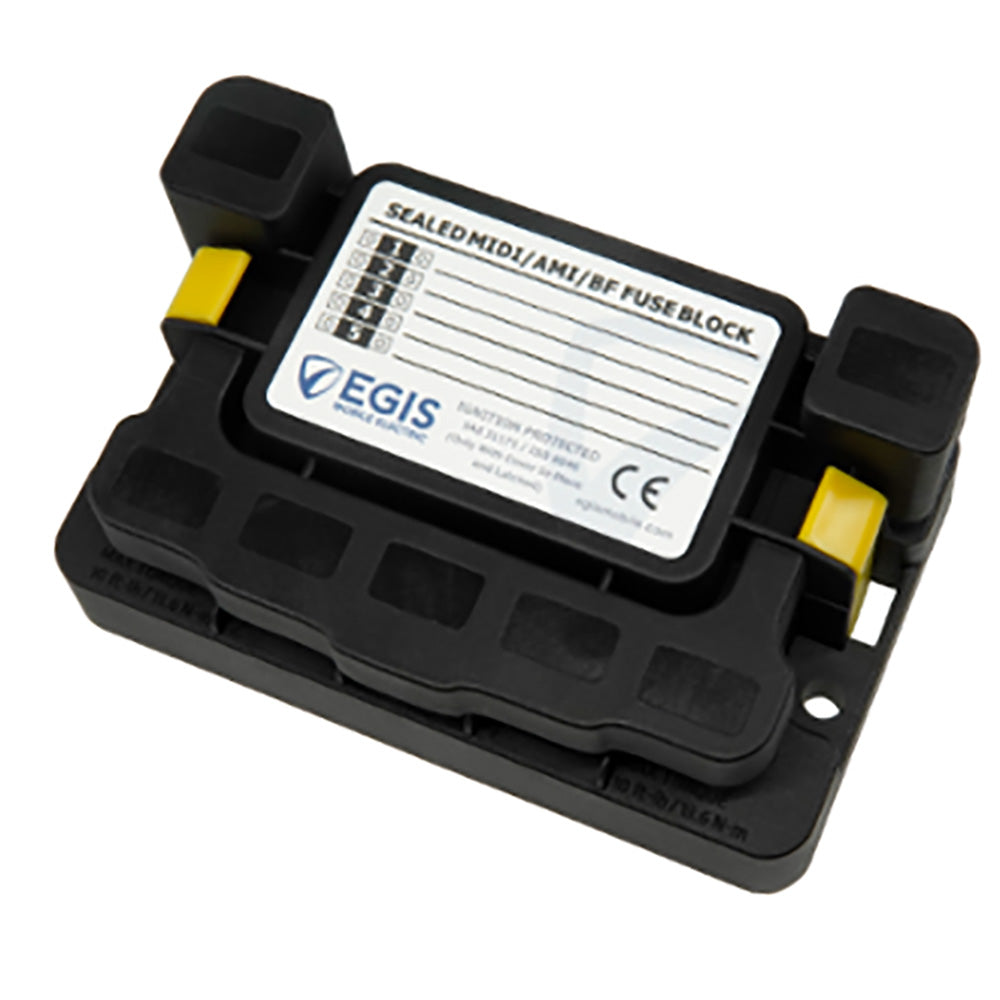

Egis MIDI 5x Fuse Block w/Sealed Cover [3908]

$77.99 $83.90

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

MIDI 5x Fuse Block with Sealed Cover

  • Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
  • Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
  • Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions

Features:

  • Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
  • Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
  • Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.

Specifications:

  • Total Continuous Current Amps: 500
  • Max MIDI?AMI Fuse Value (Amps): 200
  • Ingress Protection Rating: IP67
  • Ignition Protected (SEA J1171)? Yes
  • Output Stud Size: M6
  • Input Stud Size: M8

Specifications:

  • Fuse Type: MIDI/AMI
  • Type: Fuse Blocks
  • Box Dimensions: 3"H x 4"W x 8"L WT: 1.25 lbs
  • UPC: 850067590064

Brochure (pdf)
