Egis Mobile Electric  |  SKU: EM-103460  |  Barcode: 850035199718

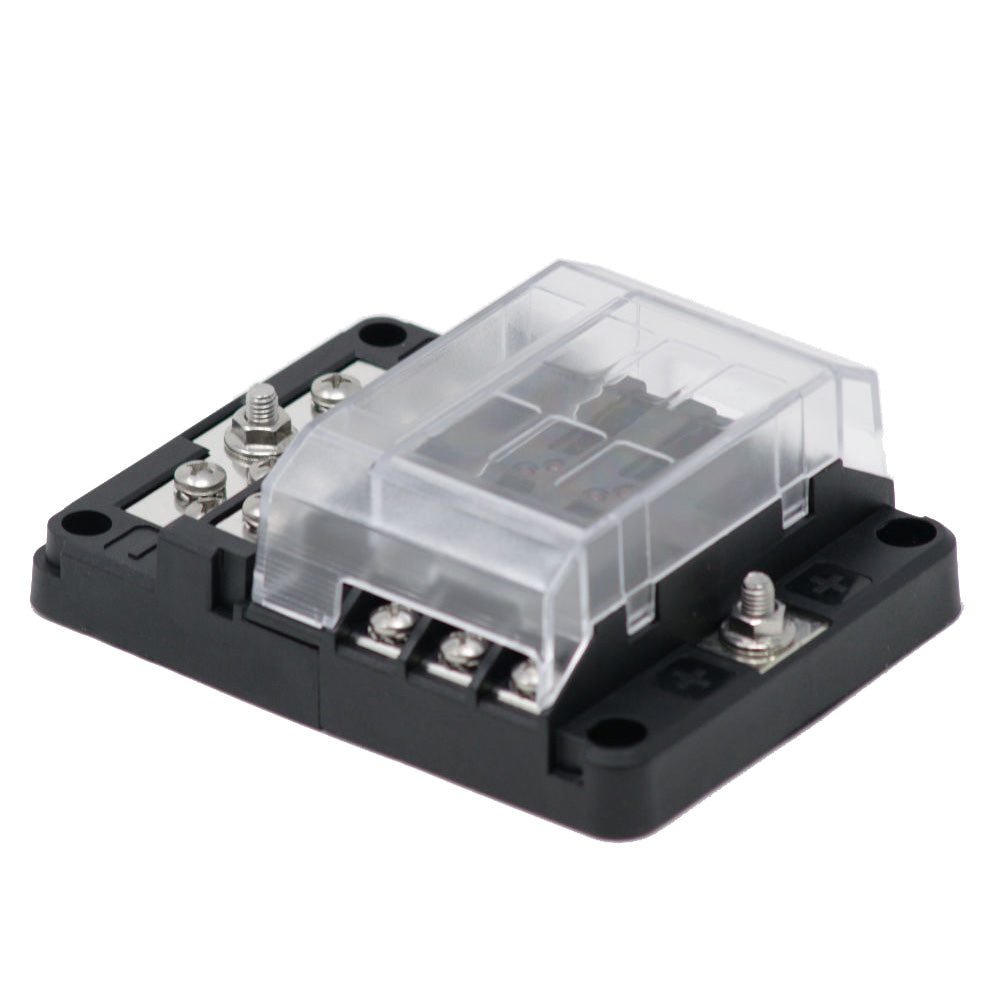

Egis RT Fuse Block 6 Position w/Ground LED Indication [8025]

$40.99 $48.30

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

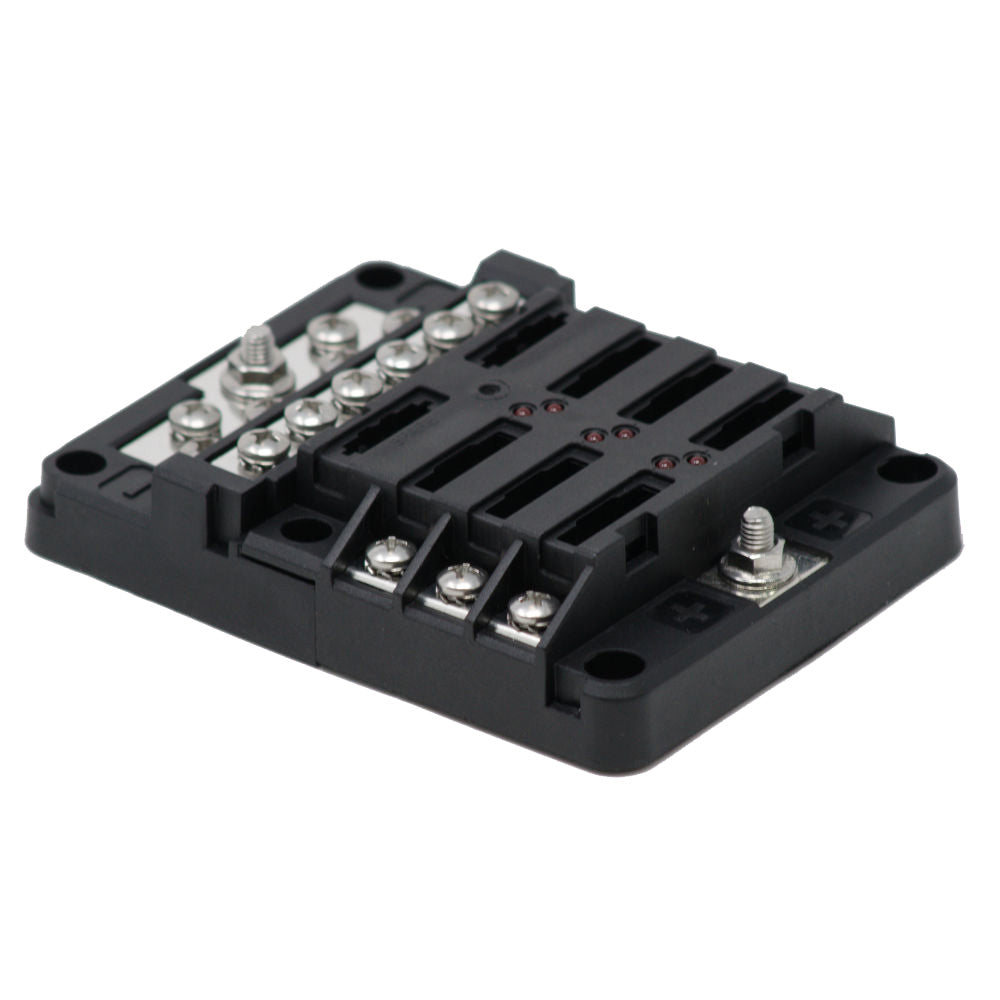

RT Fuse Block 6 Position with Ground & LED Indication

This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.

Applications:

  • Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
  • Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

  • Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
  • Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
  • Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

  • Maximum Current (Entire Block) Amps: 100
  • Maximum Current (Per Circuit) Amps: 30
  • Max Output Wire Size: #10 AWG
  • Voltage Range VDC: 0-36
  • Number of Fuse Positions: 6
  • Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.

Ground Block Separates

The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 100a
  • Fuse Type: ATO/ATC/ATF
  • Type: Fuse Blocks
  • Box Dimensions: 3"H x 4"W x 8"L WT: 0.6 lbs
  • UPC: 850035199718

Quick Guide (pdf)
