Furuno  |  SKU: EM-48029  |  Barcode: 611679330543

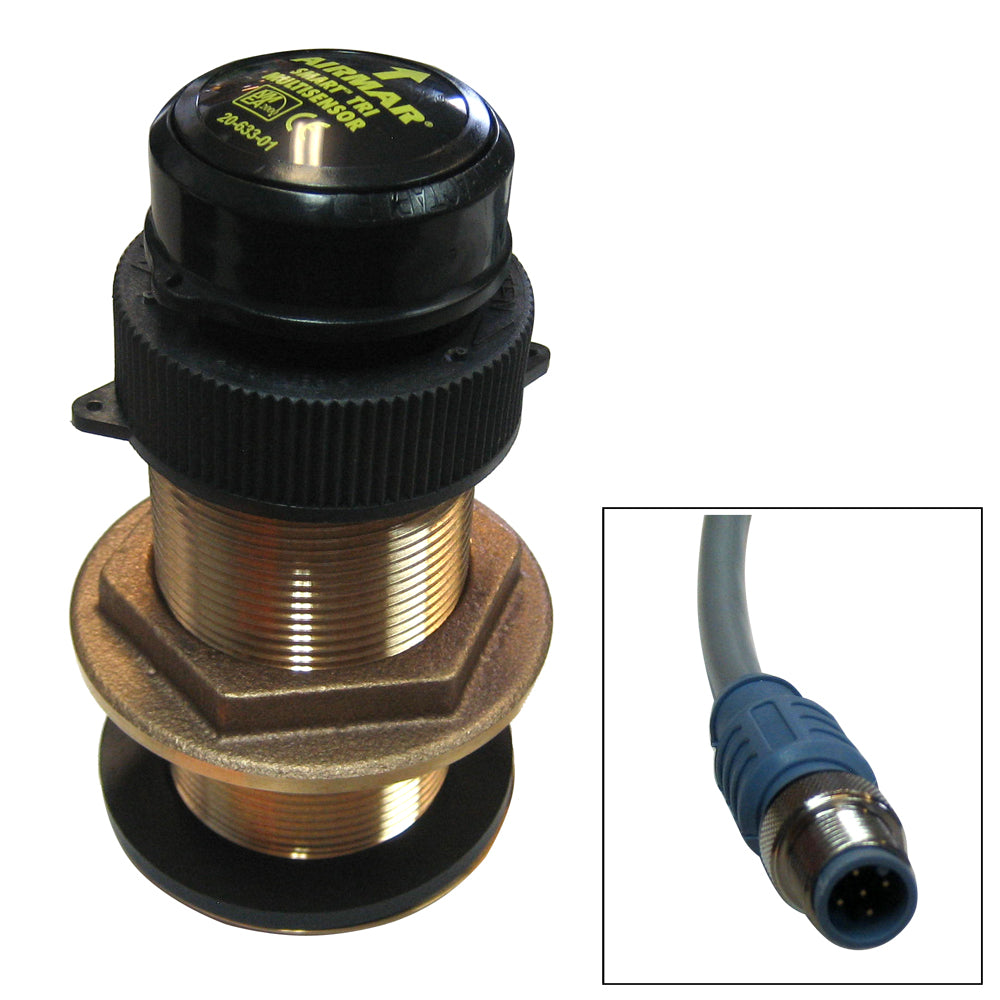

Furuno Smart Sensor DT-800MSF - Thru-Hull Transducer [DT-800MSF]

Regular price $395.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

Furuno DT-800MSF - Airmar B617V Housing Style Transducer

Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4') of water and can reach depths up to 180M (600')

Standard Features:

  • Depth and temperature in one compact bronze housing
  • Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy

Specifications

  • Weight: 1.5kg (3.4lb)
  • Acoustic Window: Urethane
  • Data Update Rate: 1 per second
  • Minimum Sounding Depth: 0.5M (1.6')
  • Maximum Sounding Depth: 180M (590)
  • Pressure Rating: 3M (10')
  • Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
  • Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
  • Supply Current: 40 mA
  • Standard Cable Length: 6M
  • NMEA 2000® Load Equivalency Number (LEN): 4

    *p/nm = pulses per nautical mile

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Temperature: Yes
  • Mounting Style: Thru-Hull
  • Cable Length (Feet): 20'
  • Box Dimensions: 4"H x 8"W x 10"L WT: 3.4 lbs
  • UPC: 611679330543
