Garmin GOS 10 Hub f/Garmin OnBoard System [010-02908-10]

Name: Garmin GOS 10 Hub f/Garmin OnBoard System [010-02908-10]
Brand: Garmin
SKU: EM-111139
Price: 367.99 USD
Availability: OutOfStock

$367.99 $399.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

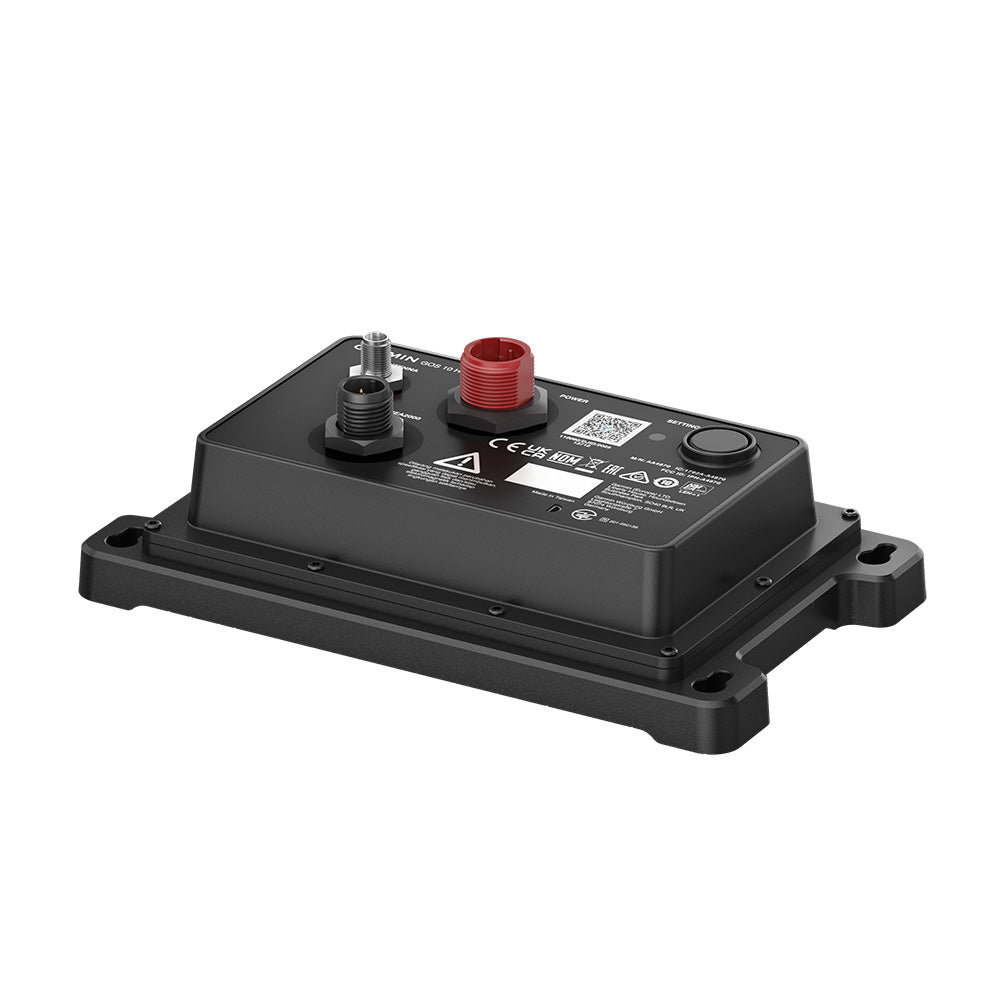

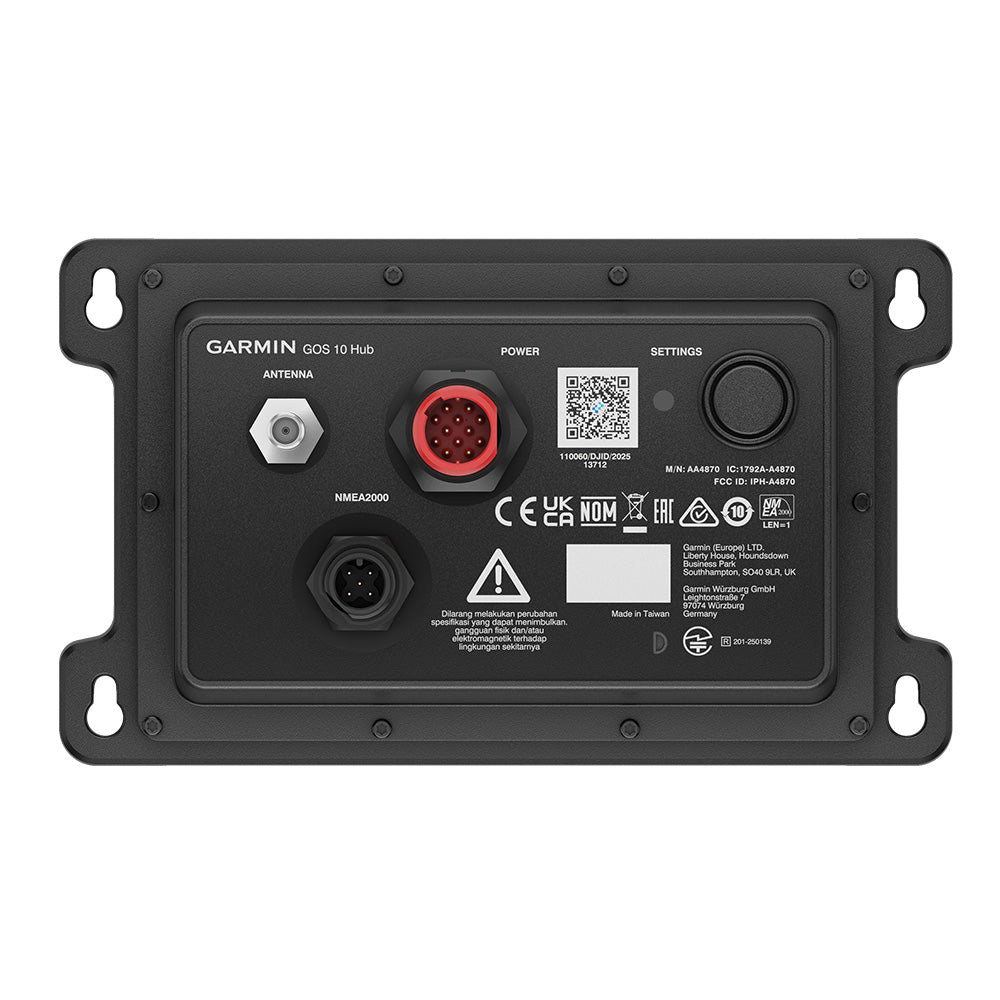

GOS™ 10 Hub for Garmin OnBoard™ System

Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessel’s engine harness to provide Engine Cut Off System (ECOS) functionality.

What's In The Box?

GOS™ 10 Hub for the Garmin OnBoard System
12-pin fused power and engine cut-off harness with external buzzer
External antenna for wireless connection to MOB tags
NMEA 2000® T-connector
NMEA 2000 drop cable
Installation hardware
Documentation

Specifications:

Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
Weight: 171.7 g
Wireless range: 66 ft (up to 20 m)
Supply voltage range: 10-32V
Operating temperature range: -15 °C to 70 °C
Typical power consumption: 50mA @ 12V or 0.6W
NMEA 2000 LEN®: 1
Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
Engine interface: Hardwired, in-line connection to ignition harness
Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
Water rating: IPX6 and IPX7
Compass-safe distance: 5 cm
