Garmin  |  SKU: EM-101845  |  Barcode: 753759331214

Garmin GPS 24xd GPS Antenna w/Heading Sensor f/NMEA 2000 Network - Black [010-02316-20]

$361.99 $364.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black

The GPS 24xd position receiver and antenna give users precise location with multi-band GNSS and heading accuracy even at slow speeds.

Features:

  • Navigate to more locations with expanded GNSS support
  • Get high-sensitivity tracking with a fast GPS update rate
  • Accurately pinpoint, regardless of speed
  • It’s water-resistant (IPX7) to withstand the elements
  • Install it easily with multiple mounting options
  • The antenna is compatible with NMEA 2000® devices

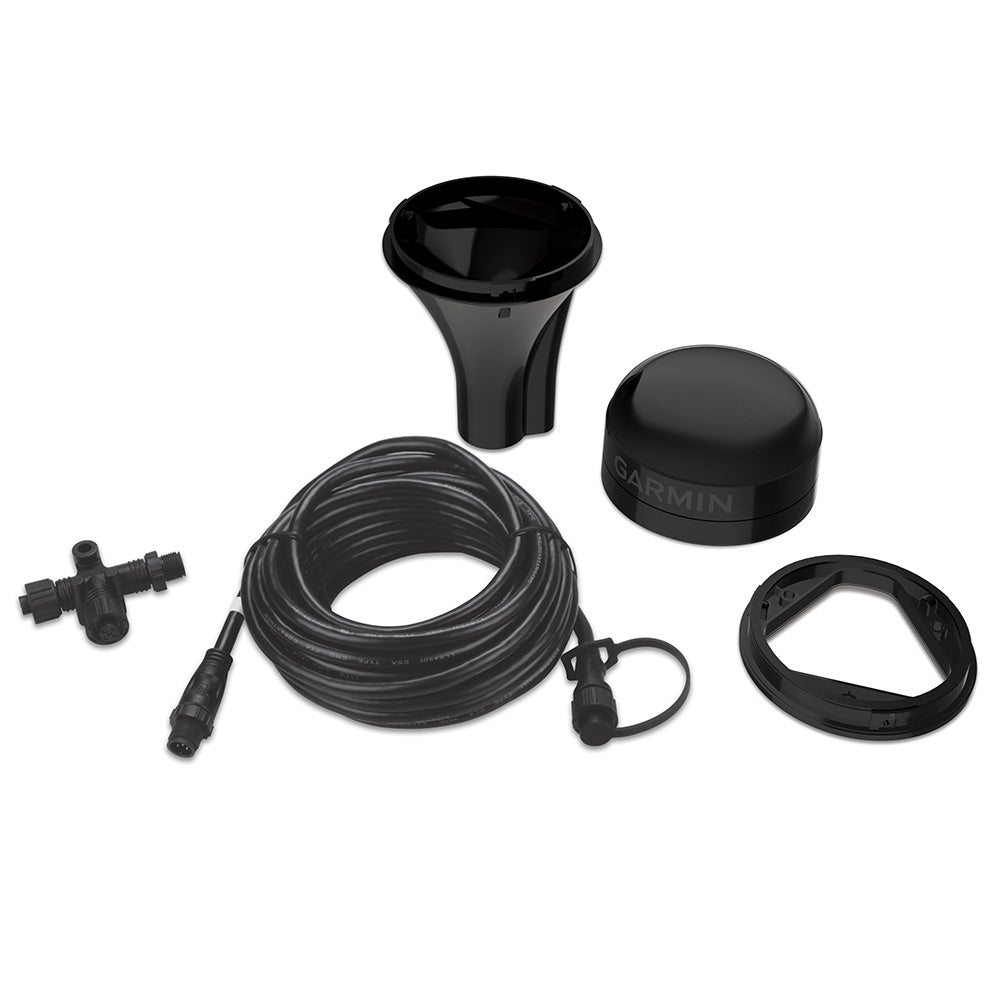

In the Box:

  • GPS 24xd NMEA 2000®
  • Pole mount
  • Surface mount
  • NMEA 2000 backbone/drop cable (6 meters)
  • NMEA 2000 T-connector
  • Documentation

Specifications:

  • Color: Black
  • Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
  • Weight: 7.1 oz (201 g), white; 6.2 oz (176 g), black
  • Cable Length: 19 ft 8" (6 m)
  • Temperature Range: -22° to 176° F (-30° to 80° C), white; -22° to 149° F (-30° to 65° C), black
  • Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
  • Compass-Safe Distance: 5.9" (150 mm)
  • Power Source Input: 9-32 Vdc
  • Input Current: 150 mA at 12 Vdc
  • NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
  • Position Accuracy, Typical Marine Use: < 1-meter CEP, < 3 meters, 95%

Specifications:

  • Type: Antennas
  • Box Dimensions: 7"H x 7"W x 7"L WT: 2.05 lbs
  • UPC: 753759331214
