HawkEye  |  SKU: EM-78836  |  Barcode: 818800010118

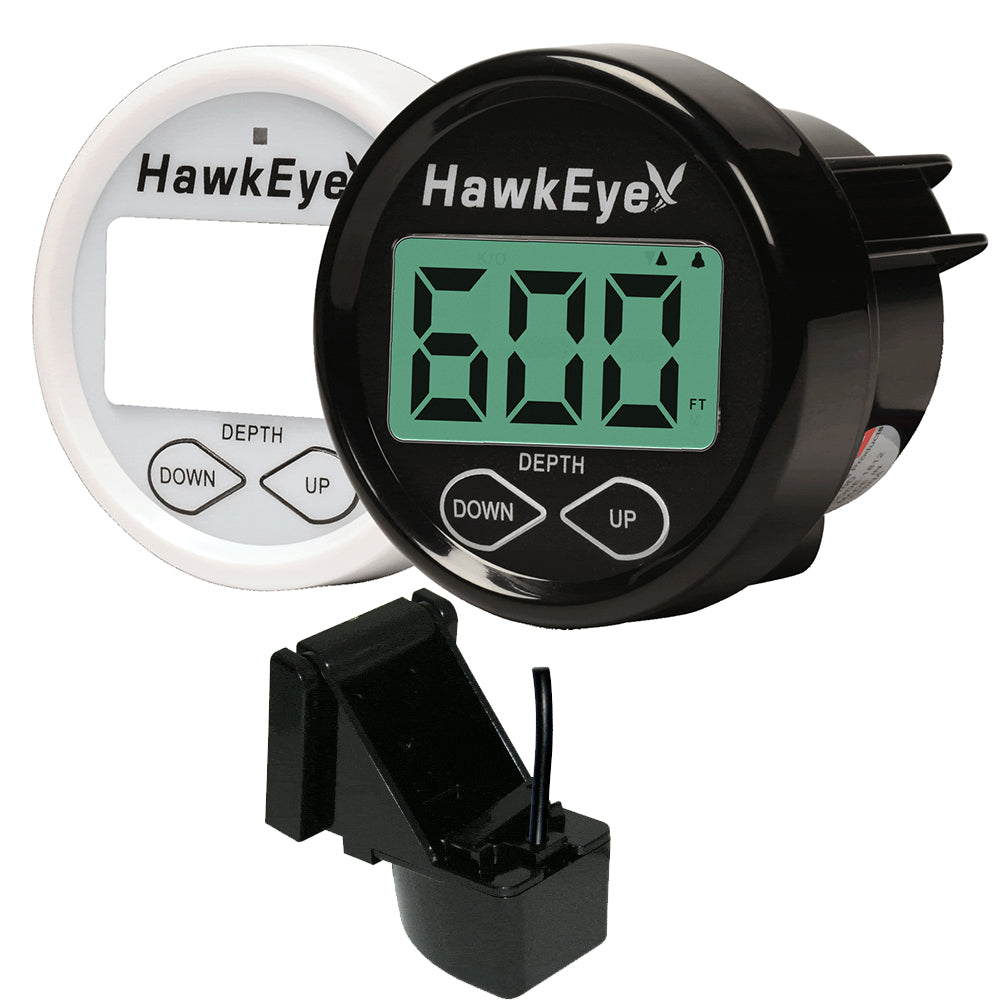

HawkEye DepthTrax In-Dash Digital Depth Gauge - Transom Mount [DT2B-TM]

$119.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

DepthTrax In-Dash Digital Depth Gauge - Transom Mount

The DepthTrax 2B includes advanced sonar, depth alarm, and keel offset capabilities.  With updated SONAR algorithms, the DepthTrax 2B reachs new depths.  Able to reach depths of 600 ft and tuned for high speed performance, the DepthTrax 2B reaches deeper and performs faster than any depth finder.

The DepthTrax 2B delivers a combination of performance and affordability unrivaled in any other depth sounder.

Features:

  • Algorithmic programming significantly reduces false readings and produces unmatched precision
  • EasyTouch programming allows one-touch access to the user settings
  • User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements
  • Selectable Imperial or Metric readout
  • Dual Upper and Lower depth alarms can be set throughout the full depth range
  • 3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting
  • Automatic memory retention of all user settings
  • Removable face system - includes White & Black faceplates and White/Black trim rings
  • No glare, polarized LCD icon display with storage sun cover
  • SoftGlow™ backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing

Technical Specifications:

  • Gauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm)
  • Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm)
  • Gauge Cut-out Size - 2"
  • Operating Temperature - 0 to 160° F (-18 to 71°C)
  • Depth Range - 2.5' to 600' (.7 to 180 M)
  • Transducer Type - Transom Mount
  • Transducer Frequency - 200kHz
  • Transducer Beam Angle - 14°
  • Transducer Cable Length - 30' (9 M)
  • Power Requirement - 12 - 14 VDC

In the Box:

  • Gauge
  • Bezel/Faceplate - Black and White
  • Display cover
  • Mounting hardware
  • Transducer - transom mount w/30' cable
  • Instruction manual

*Sold as an Individual

Specifications:

  • Box Set: No
  • Gauge Size: 2"
  • Gauge Type: Depth Sounder
  • Voltage - Input Range (Volts): 12 - 14
  • Box Dimensions: 4"H x 7"W x 9"L WT: 1.7 lbs
  • UPC: 818800010118

Owner's Manual (pdf)
