Iris Innovations  |  SKU: EM-99651  |  Barcode: 5060777480110

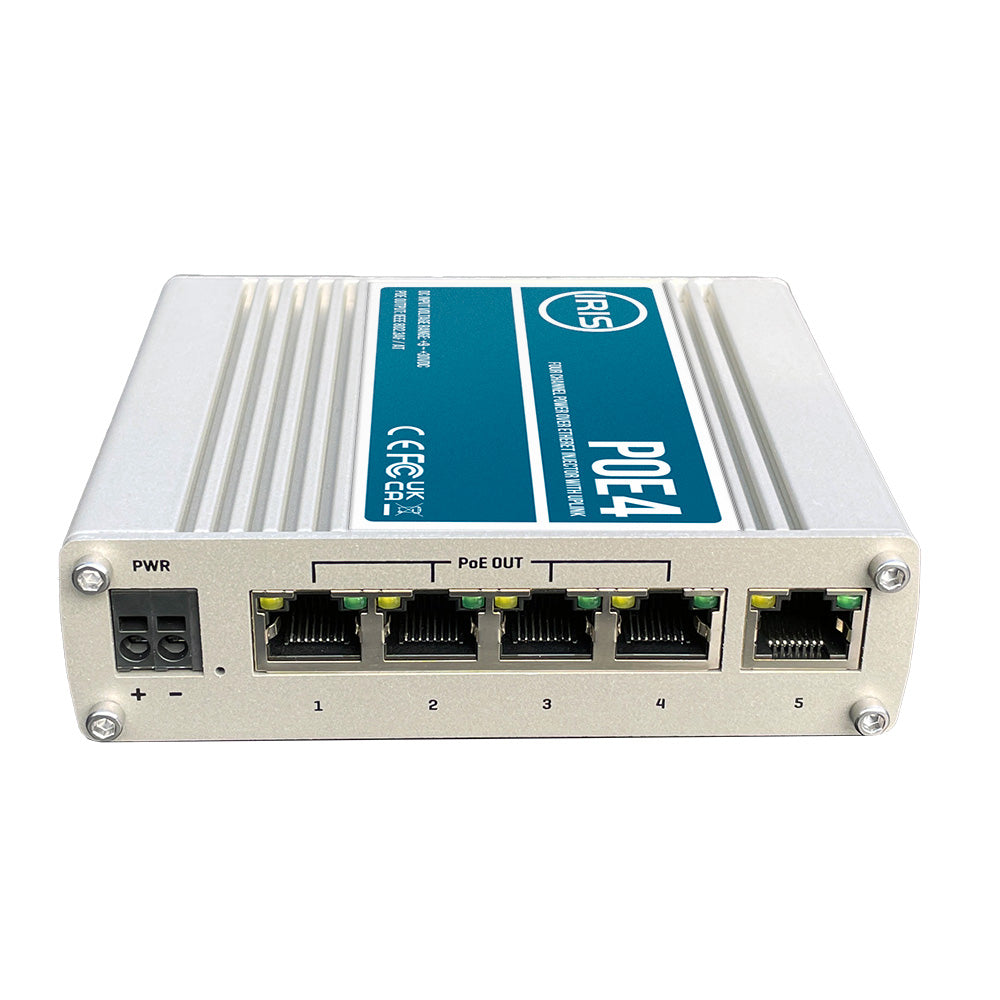

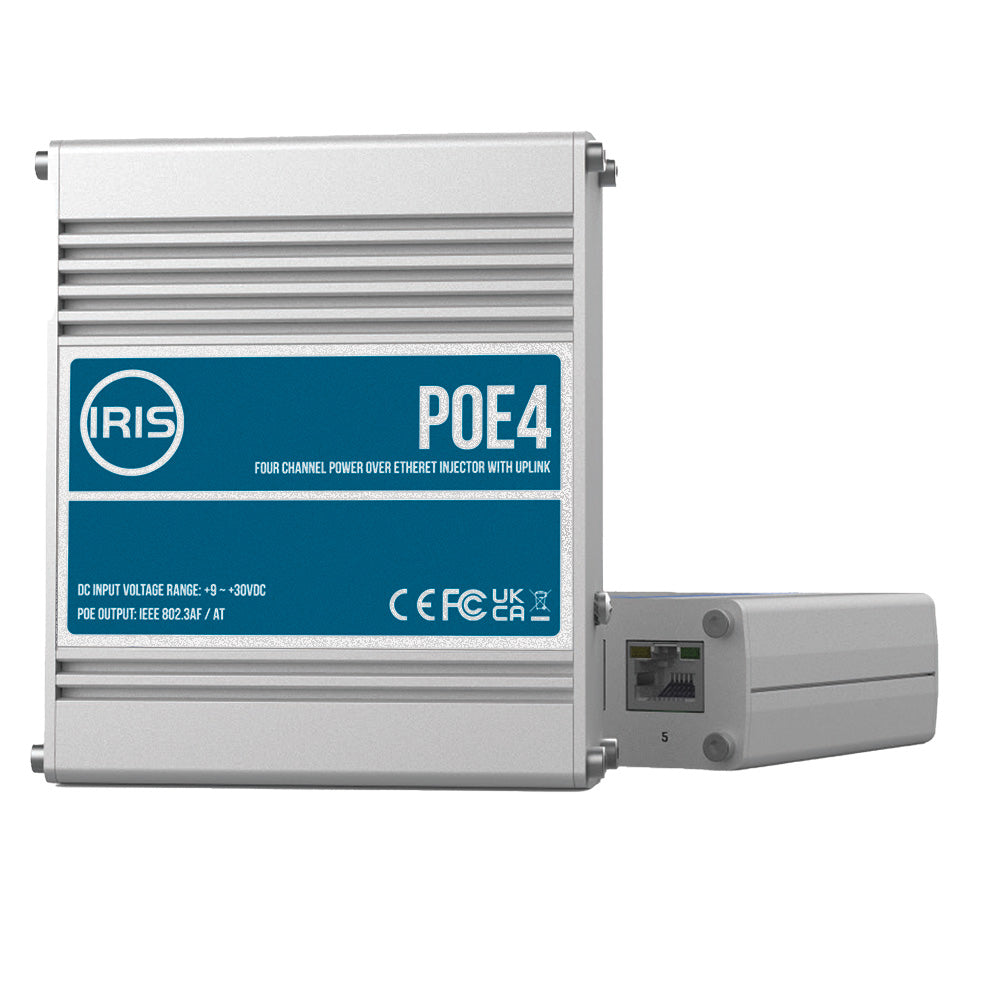

Iris Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af 3at Compliant - 9-30VDC Input - 48VDC Output [POE4V2]

Sale price $230.99 Regular price $290.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.


Product Details

Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - 9-30VDC Input - 48VDC Output

The new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.

The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.

The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.

The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.

Features:

  • Compact and robust housing
  • Wide input voltage range of 930VDC
  • Perfect for boats and vehicles
  • 60W power budget
  • IEEE802.3af / 3at compliant
  • Up to 30W per channel
  • Plug and play operation - no configuration required
  • 48VDC PoE output voltage to your devices
  • Provides power to devices up to a 100-meter cable length
  • Simplifies installations

Specifications:

  • Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm
  • Material: Aluminium, soft anodized
  • PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)
  • Total PoE Budget: 60W across 4 PoE Ports
  • Maximum Cable Length: 100 Meters
  • Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10
  • Input Voltage Range: 9 30 VDC
  • Output Voltage: 48 VDC
  • Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W
  • Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Owner's Manual (pdf)
