Lectrotab 12 V Trim Tab Actuator - 23 Cable [A-BK-13]

Name: Lectrotab 12 V Trim Tab Actuator - 23 Cable [A-BK-13]
Brand: Lectrotab
SKU: EM-96254
Price: 227.80 USD
Availability: InStock

$227.80 $268.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

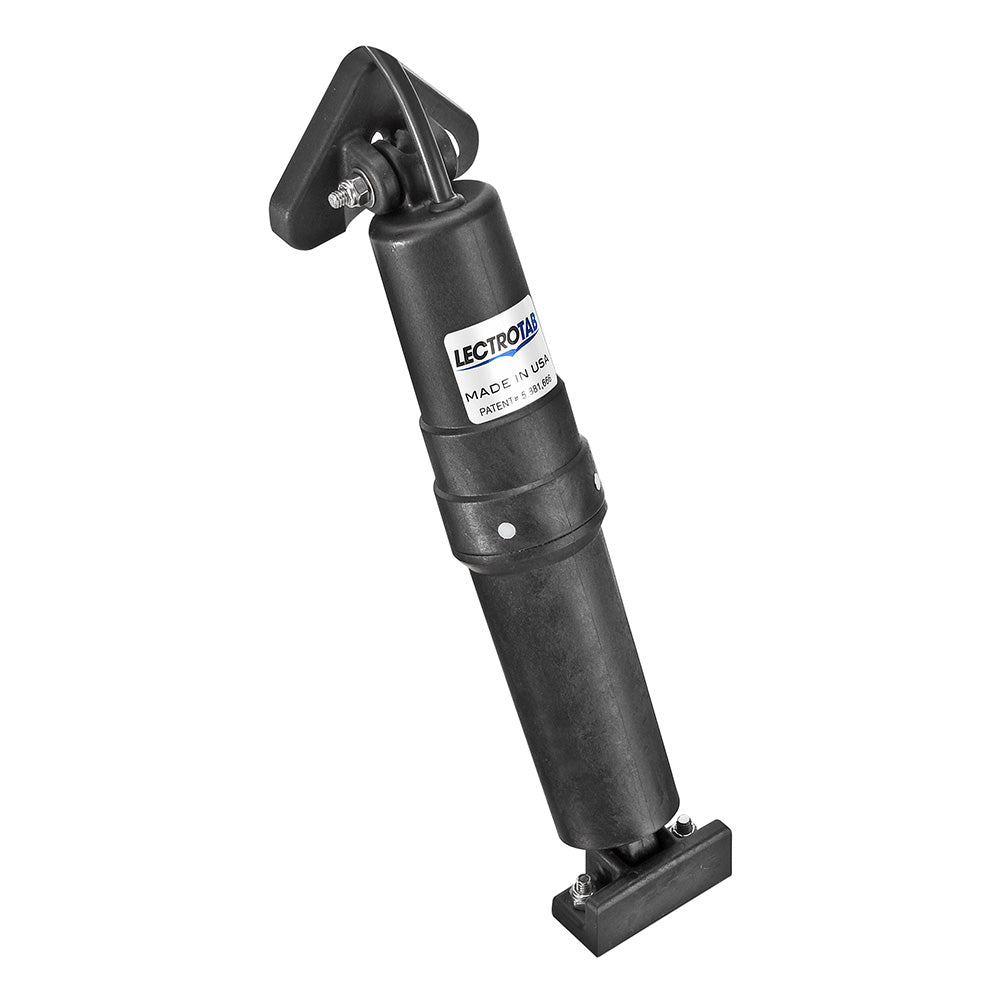

12 V Trim Tab Actuator - 23' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing.

No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a transom mounting bracket.

Features:

Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
Utilizes internal pressure equalization system
Upgrades to most popular hydraulic and electromechanical systems
Internal brake system prevents unwanted tab movement when under way or backing down
Quiet operation
All actuators fully load tested to push 1000 lbs of force
Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

Actuator DC Voltage - 12 V
Actuator Stroke Length - 2.25" (57 mm)
Actuator Cable Length - 23' (7 M)
Actuator Vertical Height - 11.875" (302 mm)
Upper Mounting Bracket - Standard
Lower Mounting Bracket - Standard

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Owner's Manual (pdf)
Brochure (pdf)
