Maretron  |  SKU: EM-41638  |  Barcode: 873804003108

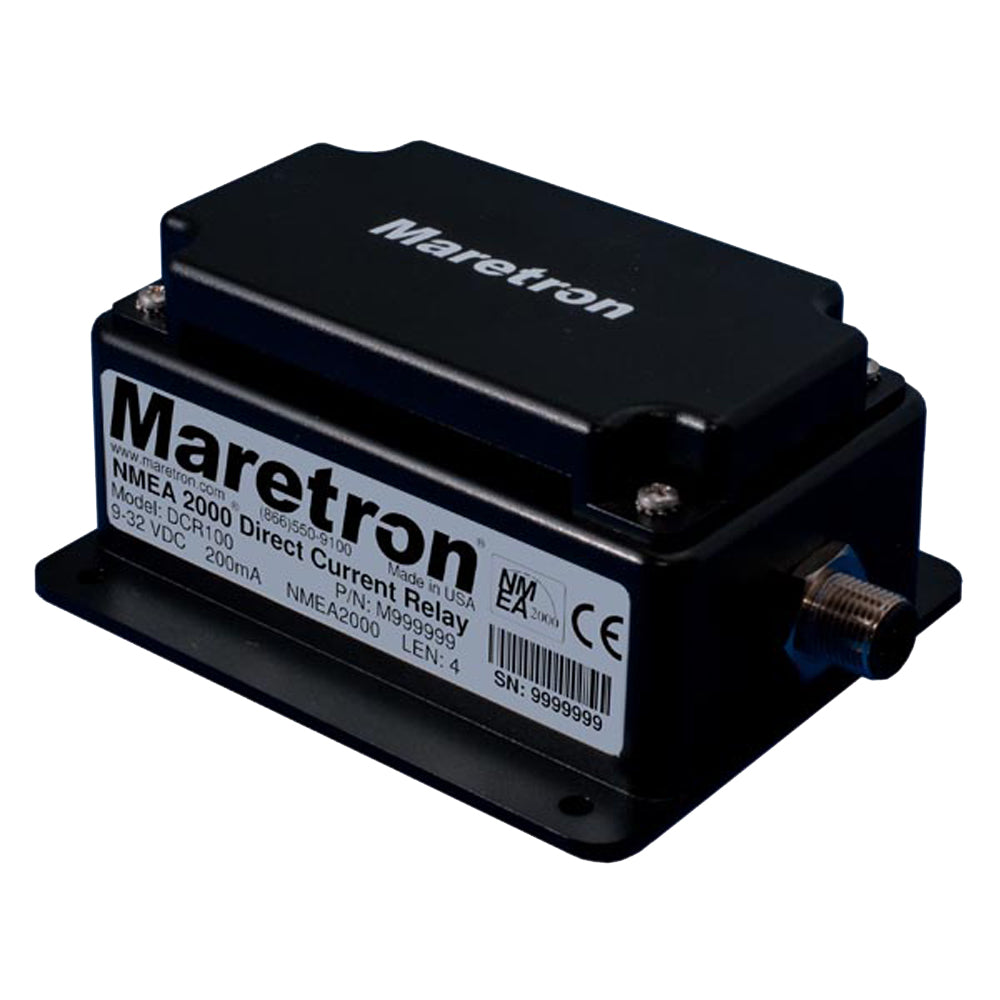

Maretron DCR100-01 Direct Current Relay Module [DCR100-01]

Regular price $395.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

Maretron's DCR100 contains 6 Direct Current (DC) relays, each capable of switching up to 10amps. The DCR100 connects directly to an NMEA 2000 network, so you can turn on and off the relays from any device onboard or remotely running Maretron's N2KViewr software. The DCR100 easily handles resistive DC loads like lights, or inductive DC loads like pumps and motors. The DCR100 can also be used to switch AC circuits using external relays.

An added benefit of the DCR100 is that it reports the current through each of the six channels. This allows you to determine if loads are drawing too little electrical current such as burnt out bulbs, or if the loads are starting to draw too much electrical current.

Features

  • Six Relays for On / Off Control Over NMEA 2000 Network
  • Each Relay Capable of Carrying Up to 10 amps
  • Individual Relay Electrical Current Monitoring
  • Automatic Relay Over Current Shutdown (Shuts Down at 12 amps)
  • Automatic Relay Thermal Shutdown (Over Temperature Protection)

    Applications

  • Remote Control of Navigation Lights
  • Remote Control of Boarding Lights
  • Burnt Out Bulb Alerts

    WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


    Quick Guide (pdf)
    Owner's Manual (pdf)
