Marinco Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80 [36180]

Name: Marinco Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80 [36180]
Brand: Marinco
SKU: EM-79306
Price: 178.99 USD
Availability: InStock

$178.99 $306.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

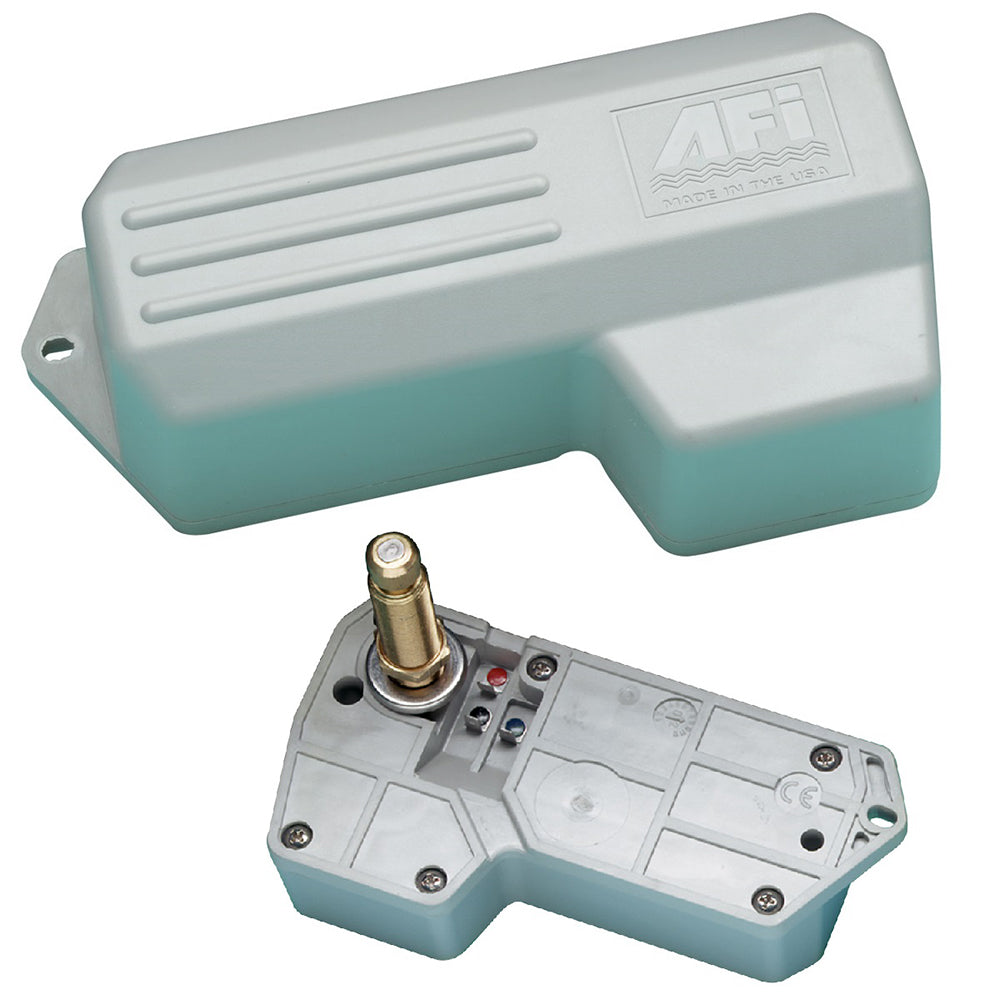

Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80°

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
0.625" diameter shaft (16 mm)
12 volt heavy-duty motor with anti-rotation drive shaft
Knurled drive shaft and solid brass arm drive nut
Coast to park with adjustable right or left self parking
Retail version includes 5 amp fuse and holder (on/off switch not included)
RF shielded circuitry
Weight: 1.75 lbs
Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
Measures approximately 6.625" L x 3.375"W x 2" D
Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall current: 9.8-10.0 amps
No load current: 0.8-1.2 amps+
