Navico  |  SKU: EM-101344  |  Barcode: 9420064132171

Navico B75H 20 Bronze Thru-Hull CHIRP xSonic 9-Pin [000-16191-001]

$894.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

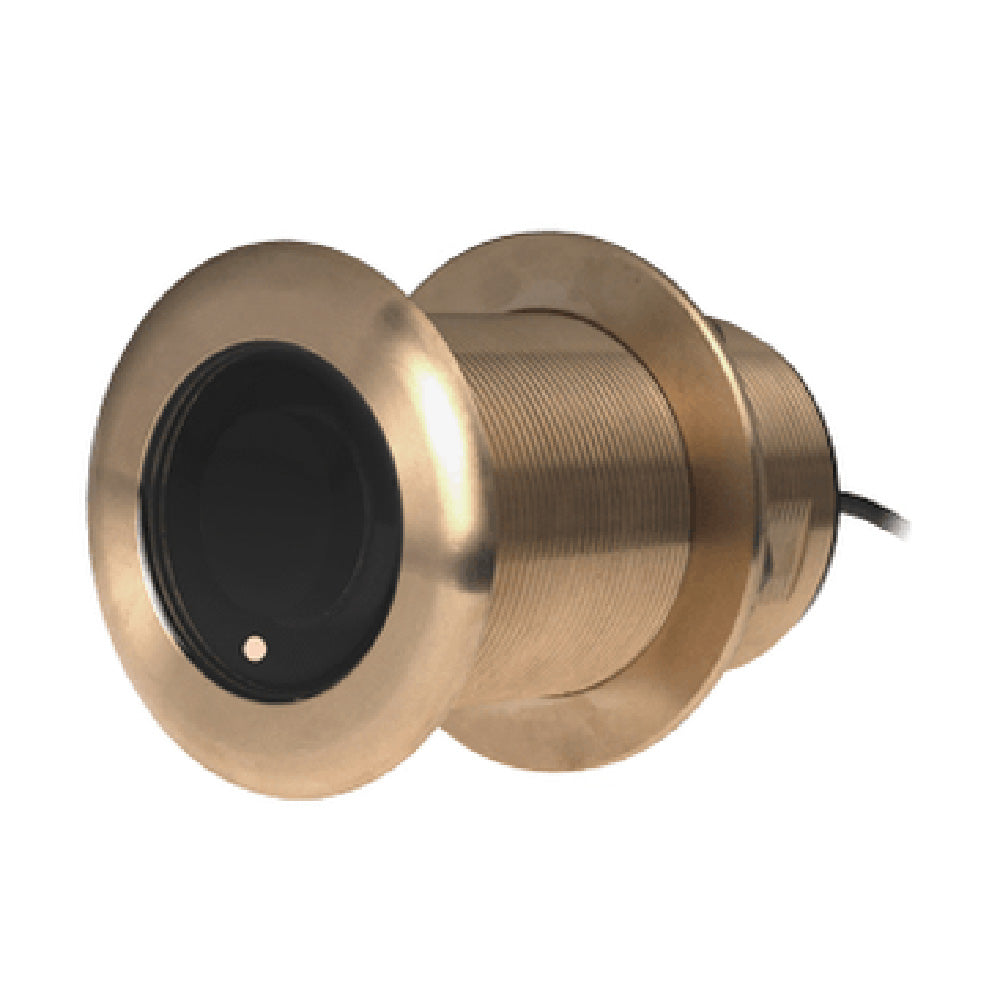

B75H 20° Bronze Thru-Hull CHIRP xSonic 9-Pin

The B75H is a bronze, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

  • CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
  • Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
  • Easy To Install
  • High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
  • Highly Accurate - Provides extremely accurate data
  • 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise
  • Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull
  • Plug & Play Connection - Easily connect to NSS, NSE, NSO or Lowrance

Specifications:

  • Cable Length (Feet): 33'
  • Chirp: High
  • Imaging: Standard
  • Mounting Style: Thru-Hull
  • Pins: 9
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 5"H x 8"W x 12"L WT: 6.2 lbs
  • UPC: 9420064132171
