Newmar Power  |  SKU: EM-102292

Newmar 1-2-120 Battery Isolator [1-2-120]

Sale price $244.99 Regular price $255.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.


Product Details

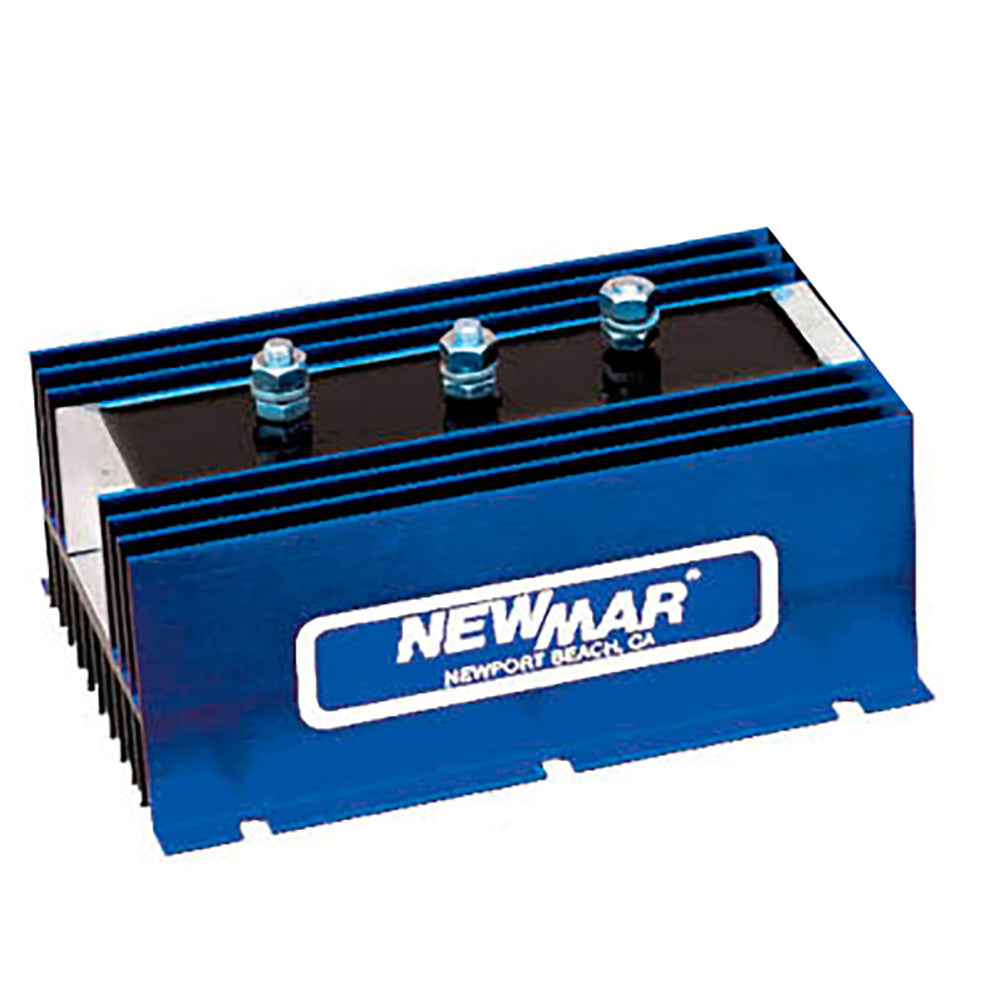

1-2-120 Battery Isolator

This heavy-duty isolator allows multiple batteries to charge automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt, negative ground DC systems. This model is a 120-amp alternator.

Features:

  • Conservatively rated diodes and a rustproof anodized aluminum heat sink case
  • Heavy duty construction
  • Rated for systems up to 48 volts DC, negative ground
  • Rust-proof anodized aluminum case
  • Stainless steel mounting hardware provided
  • Protective covers provided for terminals

Specifications:

  • Operating Temperature: -40 to +80°
  • Duty Cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C
  • Temp. Rise: 5° C at full rated current (mount vertically for optimum cooling)
  • Voltage Drop: 0.7V @ 50% load, 0.9V @ full load
  • Alternator Sources: 1
  • Battery Bank: 2
  • Max. Amperage Input Capacity: 120
  • Stud Terminal Size: 6mm
  • Dimensions (L x W x H): 6.5" x 4.5" x 3.1"
  • Weight: 3 lbs.

Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration
