Octopus 12" Stroke Remote 38mm Linear Drive - 12V - Up To 60' or 33,000lbs [OCTAF1212LAR12]

Name: Octopus 12" Stroke Remote 38mm Linear Drive - 12V - Up To 60' or 33,000lbs [OCTAF1212LAR12]
Brand: Octopus Autopilot Drives
SKU: EM-44319
Price: 2075.99 USD
Availability: OutOfStock

$2,075.99 $2,906.46

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Linear Actuators
OCTAF1212LAR12

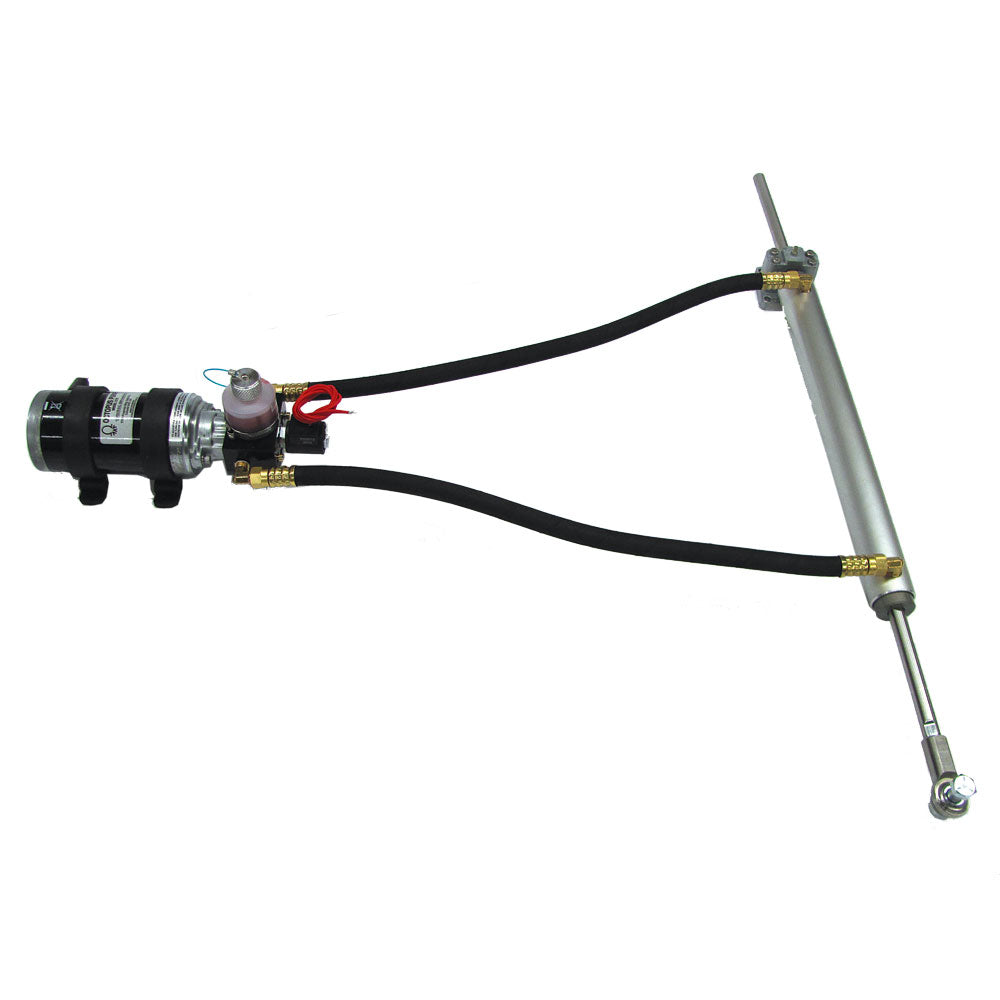

An Octopus Hydraulic Linear Actuator is a simple, effective way to drive the rudder on a boat equipped with a mechanical steering system. The linear actuator is an assembly of an Octopus reversing pump and a marine hydraulic cylinder. This assembly is mounted on the rudder tiller-arm or quadrant. When the autopilot is not in use the cylinder runs freely along with the rudder. When the automatic pilot is in use a solenoid valve on the actuator closes and locks the cylinder. Steering signals from the pilot are now fed to the D.C. motor, which drives the pump to move the cylinder back and forth. De-energized, the solenoid valve immediately disconnects the automatic pilot from the rudder. The actuator has a small translucent oil reservoir, making it easy to check fluid levels. These actuators have only five moving parts. Mechanical simplicity gives our product reliability and ease of service when compared to complicated gear and screw actuators, making our units a favorite for offshore mariners. These actuators are shipped from our factory completely filled with oil and require no additional plumbing.

Features

Average Current 4-6 amps

Max Current 19amps

12vDC

Cylinder Bore: 38mm

Variable Flow Rate: 600cc-1.2 litre/min

Stroke: 305mm/12in

Hardover Time(Suggested): 14-16 sec

Max Rudder Torque: 1,200Nm/10,600lbin

Peak Thrust: 400Kg/882lbs

Max boat Length: 18m/60'

Specifications:
