Pacer  |  SKU: EM-104967  |  Barcode: 840248206464

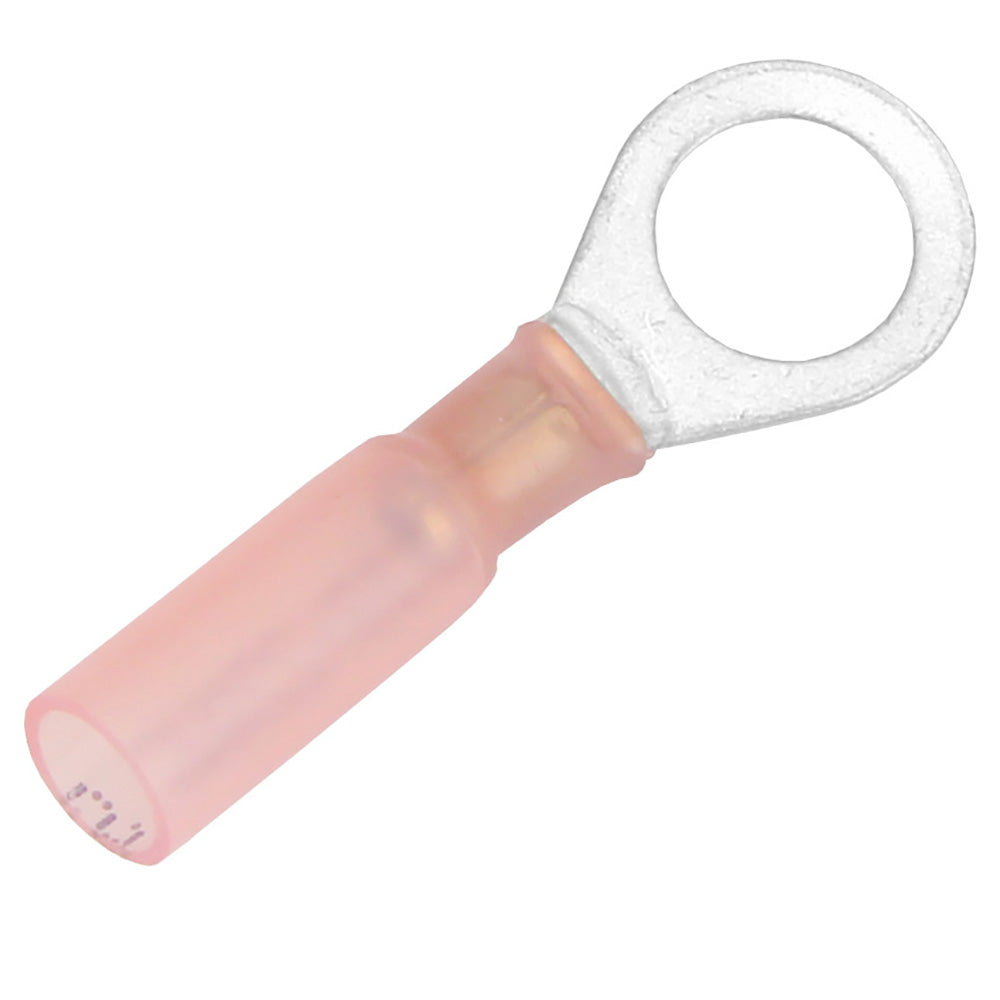

Pacer 22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack [TE18-56R-25]

Regular price $18.43

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.


Product Details

22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users don't need to worry about the connector coming off. The ring fits over a stud or screw and doesn't pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isn't always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

  • Protects terminations from water, condensation, salt spray, and corrosion
  • Added vibration protection in rugged environments
  • Provides strain relief
  • Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
  • Conforms to automotive manufacturers’ specifications for wiring repairs
  • Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

  • UL
  • CSA
  • RoHS

Characteristics:

  • Shrink Ratio: Approx. 3:1 at 135 °C
  • Operating Temp: -55 °C - 125 °C
  • Vol. Resistivity: 1015 Ohm-cm3
  • Dielectric Strength: 900-V/mil
  • Voltage Rating: 600-V

Specifications:

  • Wire: 22-18 AWG
  • Stud Size: 5/16”
  • Terminal Pad Width: 0.47”
  • Package Size: 25

Specifications:

  • Gauge: 22-18 AWG
  • Heat Shrink: Yes
  • Package Qty: 25
  • Post Size: 5/16"
  • Type: Heat Shrink
  • Box Dimensions: 1"H x 3"W x 4"L WT: 0.09 lbs
  • UPC: 840248206464
