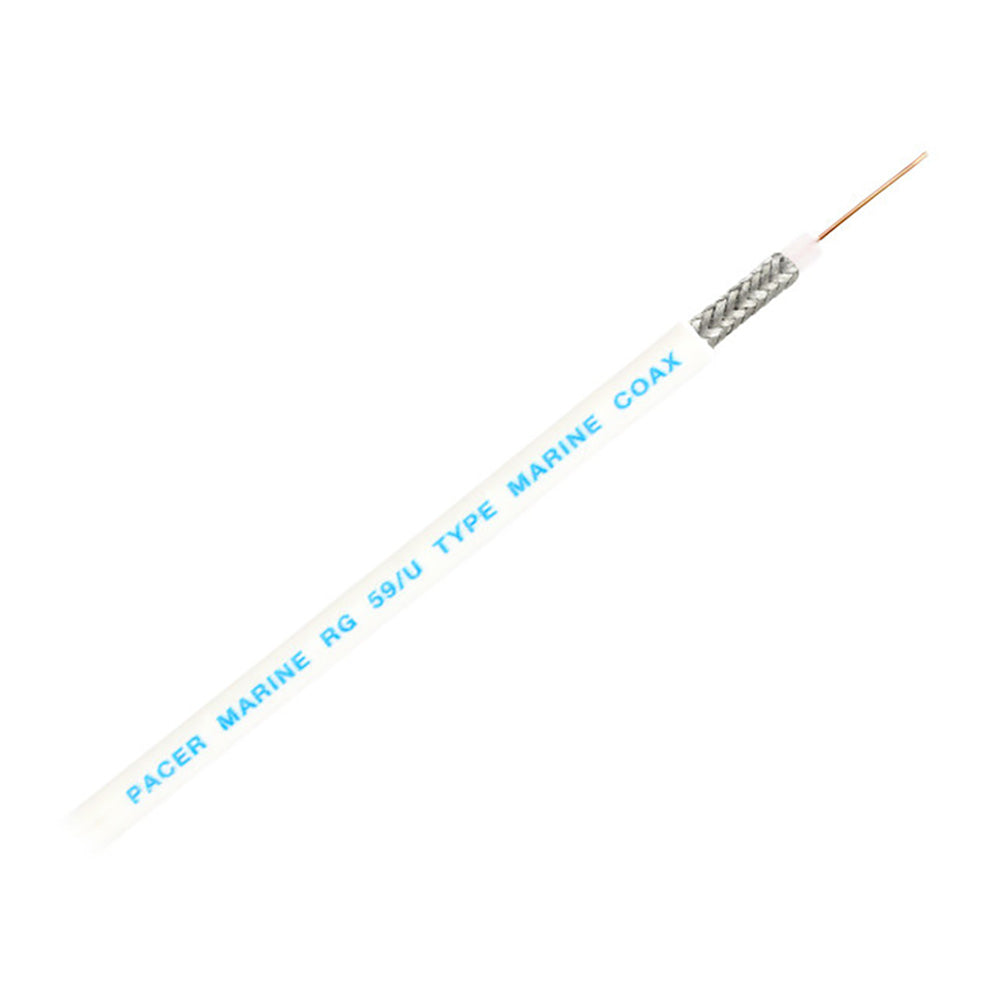

Pacer RG59UW Coax Cable - White - 150' [MRG59UW-150]

Name: Pacer RG59UW Coax Cable - White - 150' [MRG59UW-150]
Brand: Pacer
SKU: EM-114106
Price: 121.99 USD
Availability: OutOfStock

$121.99 $171.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

RG59UW Coax Cable - White - 150'

Many industries and individuals use RG59U coaxial cable to transmit communication signals. Most notably, audio, video, or network signals. You'll recognize this cable style if you've looked at the back of your cable box or modem. Many people don't even realize that the name of these cables is actually coaxial. Many people call them coax. So, what does coax, or coaxial, mean?

The term coaxial indicates the cable possesses two concentric conductors. These conductors are separated by an insulating material. Put simply, the inner conductor is encased in a cylindrical material that insulates it. This insulating material is surrounded by a tubular conducting shield. There may even be another insulating layer after the shield in certain cases. Most frequently, the inner conductor carries the signal-carrying voltage while the shield is kept at ground potential. Why create a wire like this? Well, this type of design offers several benefits. Most important is that this design restricts magnetic and electric fields. The fields are restricted to the internal insulating material. This helps to reduce leakage outside the shield.

Why use Coaxial Cable RG59U? This type of coaxial cable has a wide range of uses. Most commonly, it is used for low-power video or RF signal connections. One notable characteristic of coaxial cable RG59 is its impedance of 75 ohms. It is also slightly smaller than RG6, making it ideal where limited space is an issue.

Specifications:

- - Conductor AWG: 22 Solid Copper Clad Steel
  - Insulation Material: Solid Polyethylene
  - Shield Coverage: 95% Tinned Copper Braid 2.6Ω/M
  - Jacket Material/Nom. O.D.: White PVC 0.260
  - Nom. Cap pF/ft: 20.5
  - Velocity of Prop. (% pF/m): 66
  - Nominal Impedance (Ohms): 73
