Quick  |  SKU: EM-85093

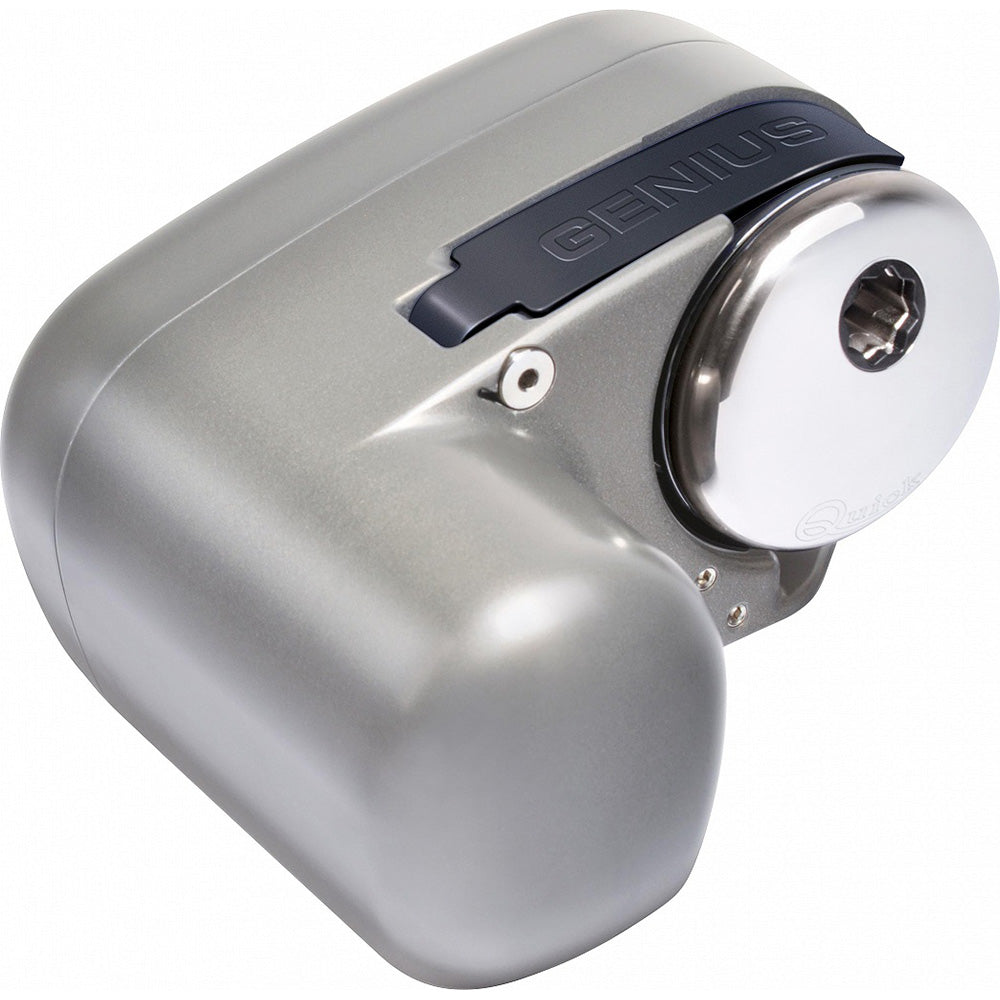

Quick Genius GP2 2000FF Windlass - Automatic Free-Fall System - 800W, 12V, 8MM or 5/16" Gypsy [FSGP22012F08A00]

$2,092.99 $2,282.67

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.
36
13

Product Details

Genius GP2 2000FF Windlass - Automatic Free-Fall System - 800W, 12V, 8MM or 5/16" Gypsy

The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button, the windlass will release its clutch and the gypsy will freewheel. To stop the free-fall, depress the up control button on the windlass; the clutch will engage, stopping the gypsy and allowing retrieval of the chain.

The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

  • Horizontal on-deck windlasses
  • Includes T6415-12 Solenoid
  • For boats 26-43FT
  • 8MM or 5/16" Gypsy
  • Requires 5/8" three-stranded polyester rope
  • Anodized aluminium in hard oxide base
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Supplied with pressure lever
  • IP66 watertight motor
  • Epicyclic gearbox (GP2 1500-2000)

Specifications:

  • Motor power - 800 W
  • Motor supply voltage - 12 V
  • Maximum pull - 900 Kg / 1984 lb
  • Maximum working load - 350 Kg / 772 lb
  • Working load - 120 kg/265 lb
  • Current absorption @ working load - 96 A
  • Maximum chain speed - 29,6 m/min / 97.1 ft/min
  • Maximum chain speed @ working load - 20 m/min 65.6 ft/min
  • Weight - 10,9 Kg / 24 lb
