RAM Mount Double Ball Drill-Down Mount w/Diamond Plate Backer Plate [RAM-B-138U-C-INT3]

Name: RAM Mount Double Ball Drill-Down Mount w/Diamond Plate Backer Plate [RAM-B-138U-C-INT3]
Brand: RAM Mounting Systems
SKU: EM-100227
Price: 56.49 USD
Availability: OutOfStock

$56.49 $63.49

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

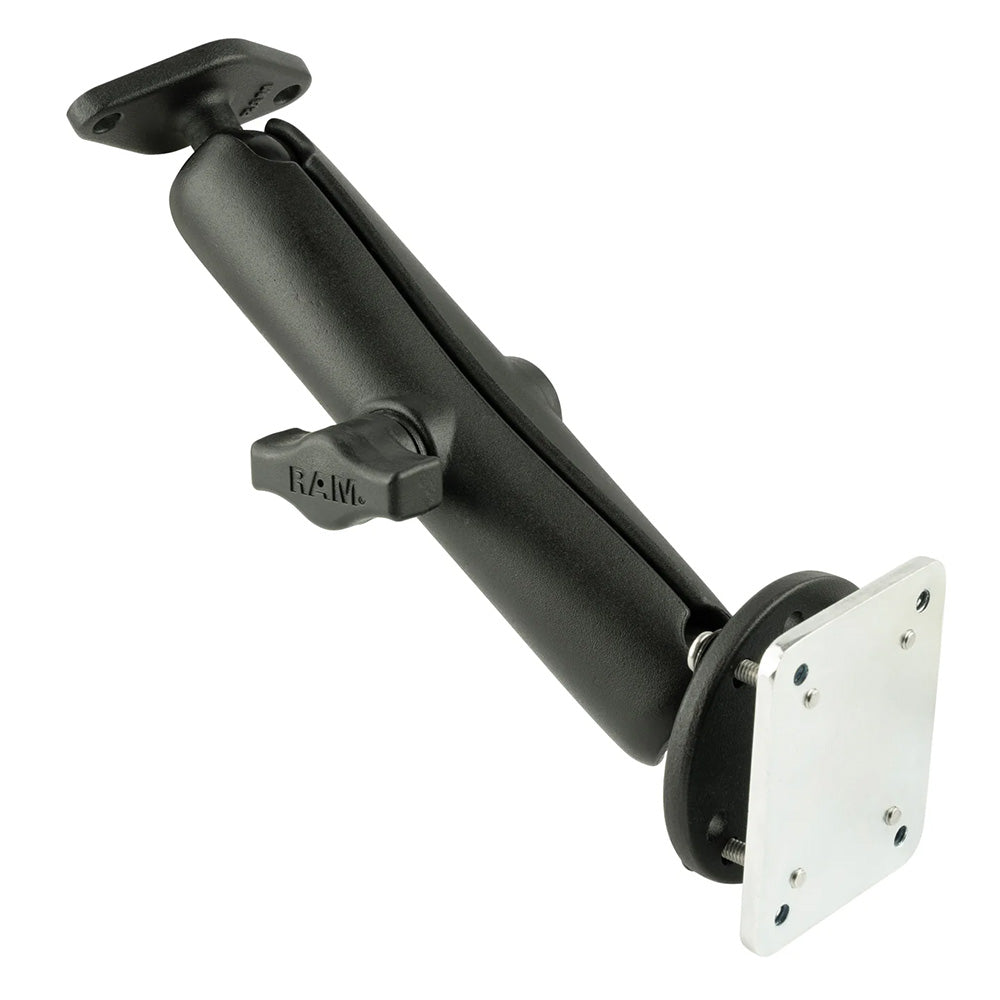

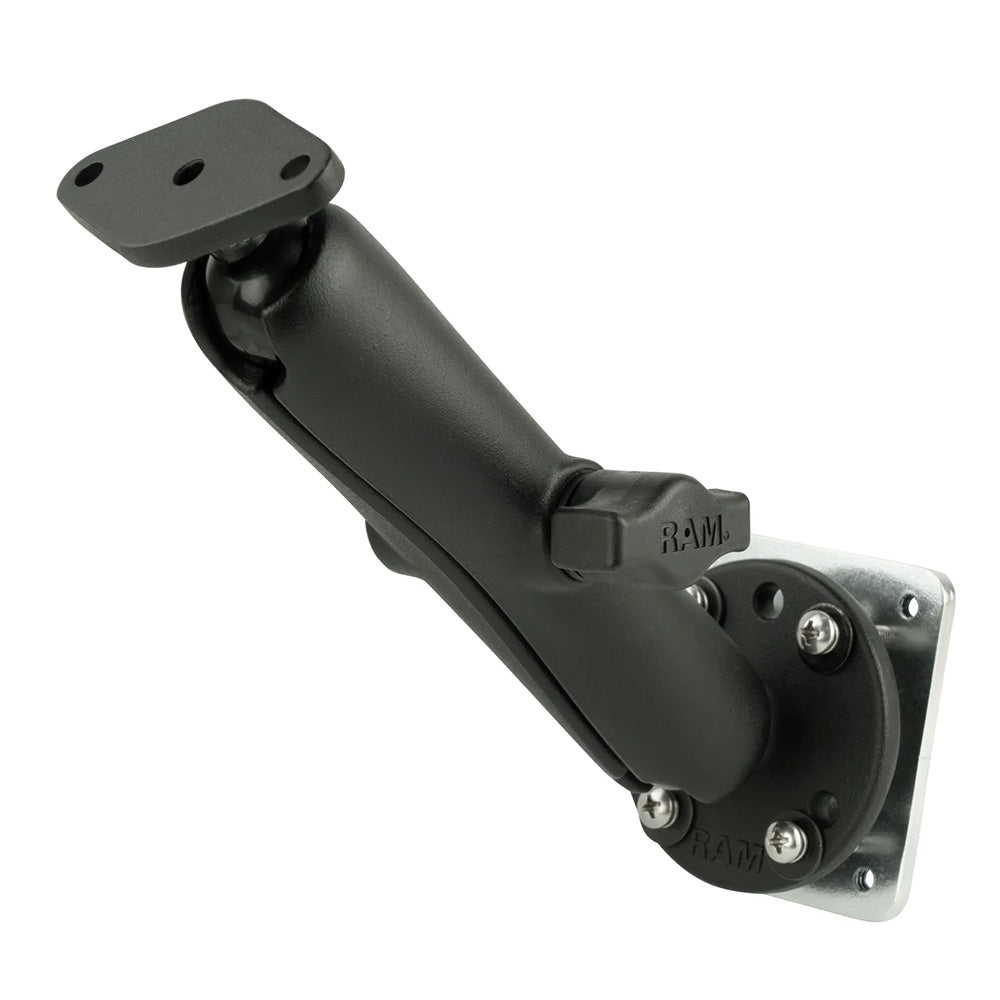

Double Ball Drill-Down Mount with Diamond Plate & Backer Plate

This mount consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, a long double socket arm, a diamond base adapter, and a backer plate. The mount is designed with a 1-diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

Specifications:

Hardware Included: (1) 2.10" x 2.60" Steel Backing Plate, (4) #8-32 x 1" Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
Product Dimensions (inch): Overall Height: 7.3125 in.
Socket to Socket Length (inch): 5.31”
Hole Pattern (inch): Diamond Plate: 2-Hole AMPS: 1.912", Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
Ball Size (inch): B size (1”)
Weight Capacity: The standard use is 2 lbs. and the heavy-duty use is 1 lb.
Materials: Steel, marine-grade aluminum
Weight: 1.0 lb.
