Product Details

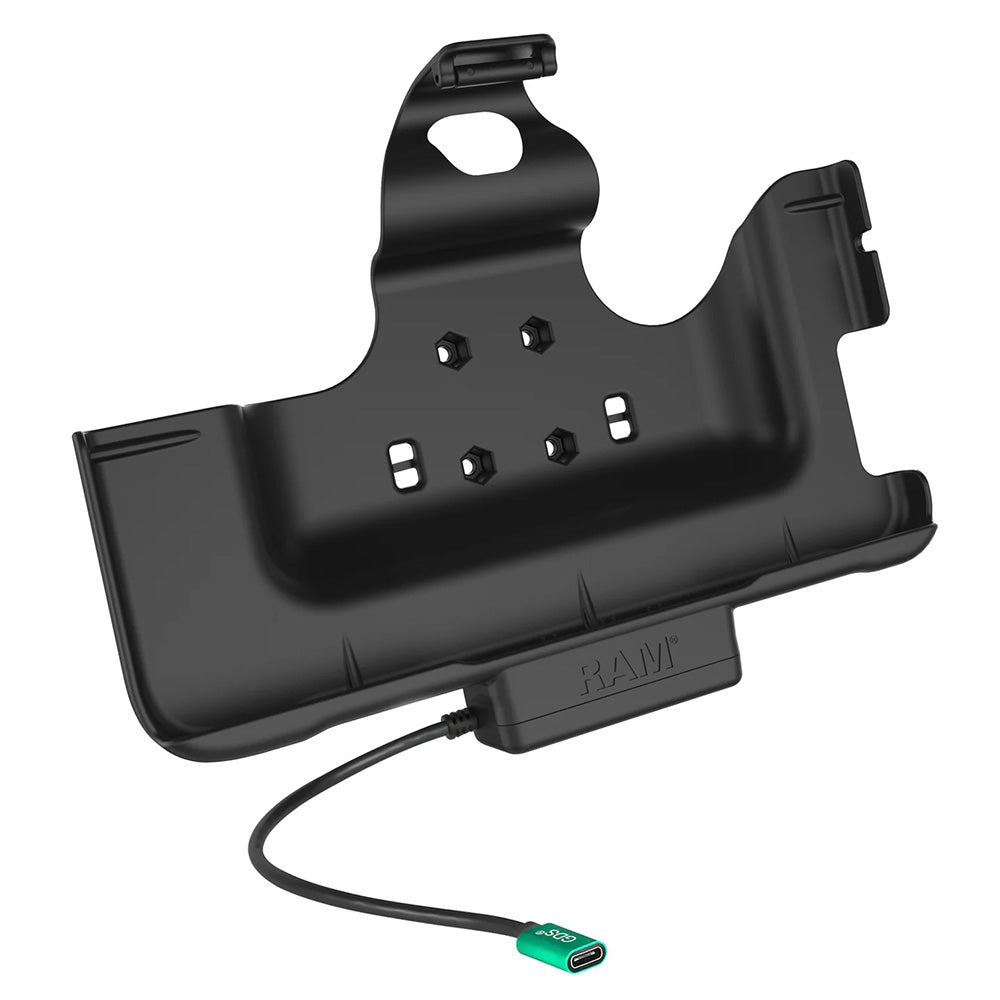

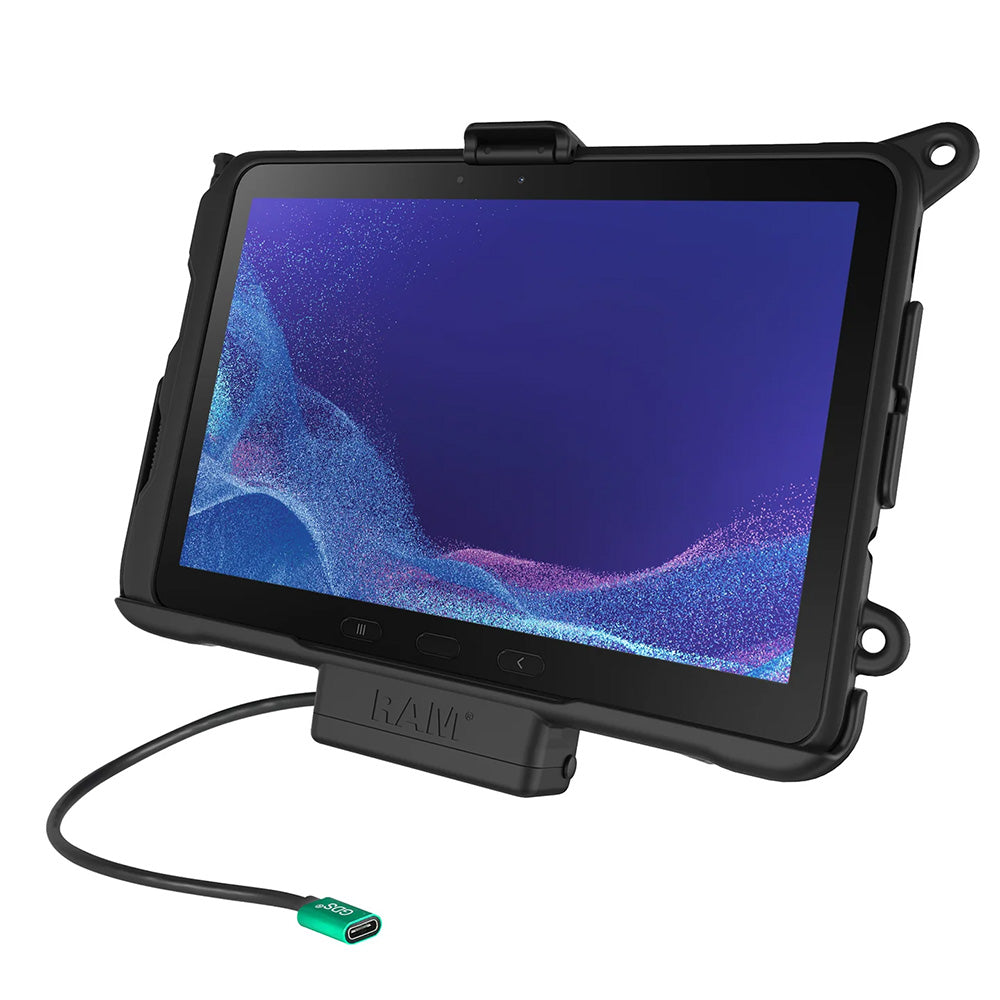

RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro

The RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.

Features:

  • The powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through an integrated pogo pin connector; for light-duty use and landscape mode only
  • Access to speakers, mics, and headphone jack remains while the device is docked
  • Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty

Specifications:

  • Hardware Included: (4) #8-32 x 5/8" Machine Screws(4) #8-32 Nylock Nuts(1) Cable Clamp(2) Large Cable Ties(5) Small Cable Ties
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High-strength composite
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 215mm
  • Packaging Type: Poly Bag
  • Warranty: 3-year warranty
  • Weight: 0.71 lbs

Additional Information:

This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options.

This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options.
