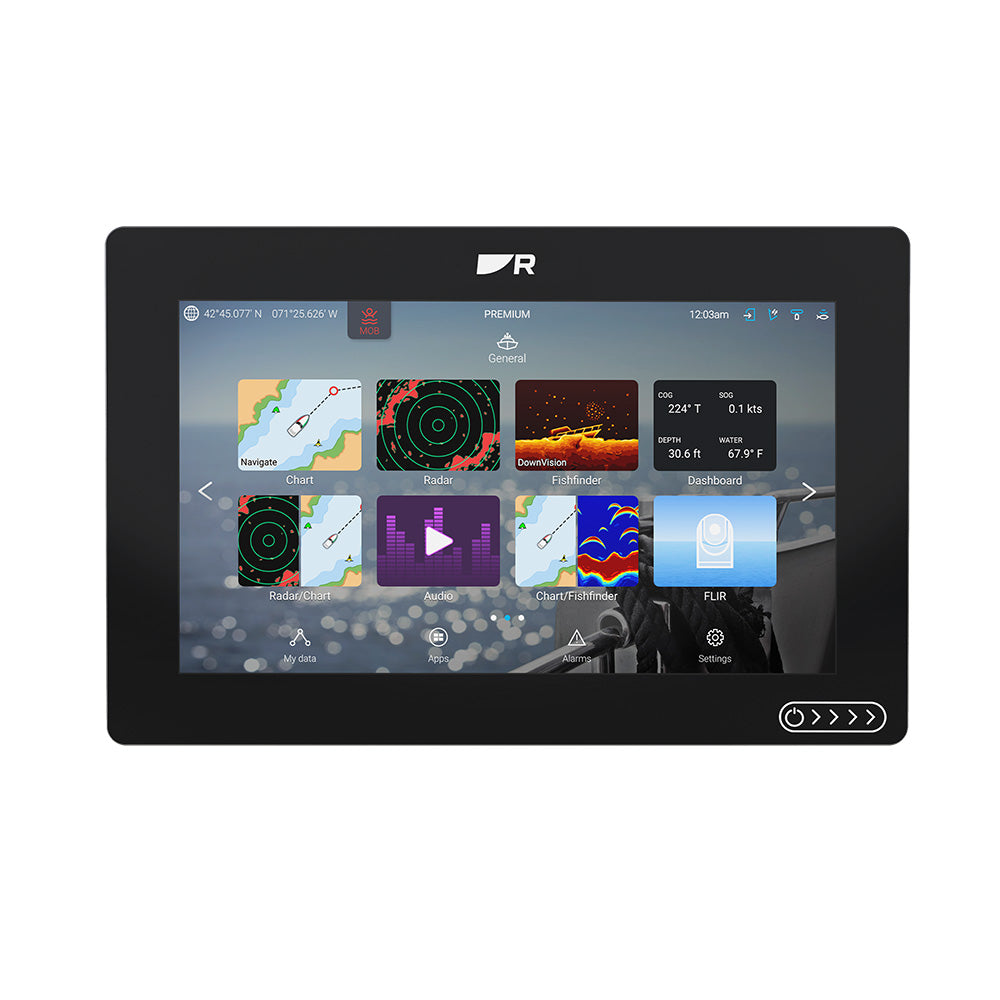

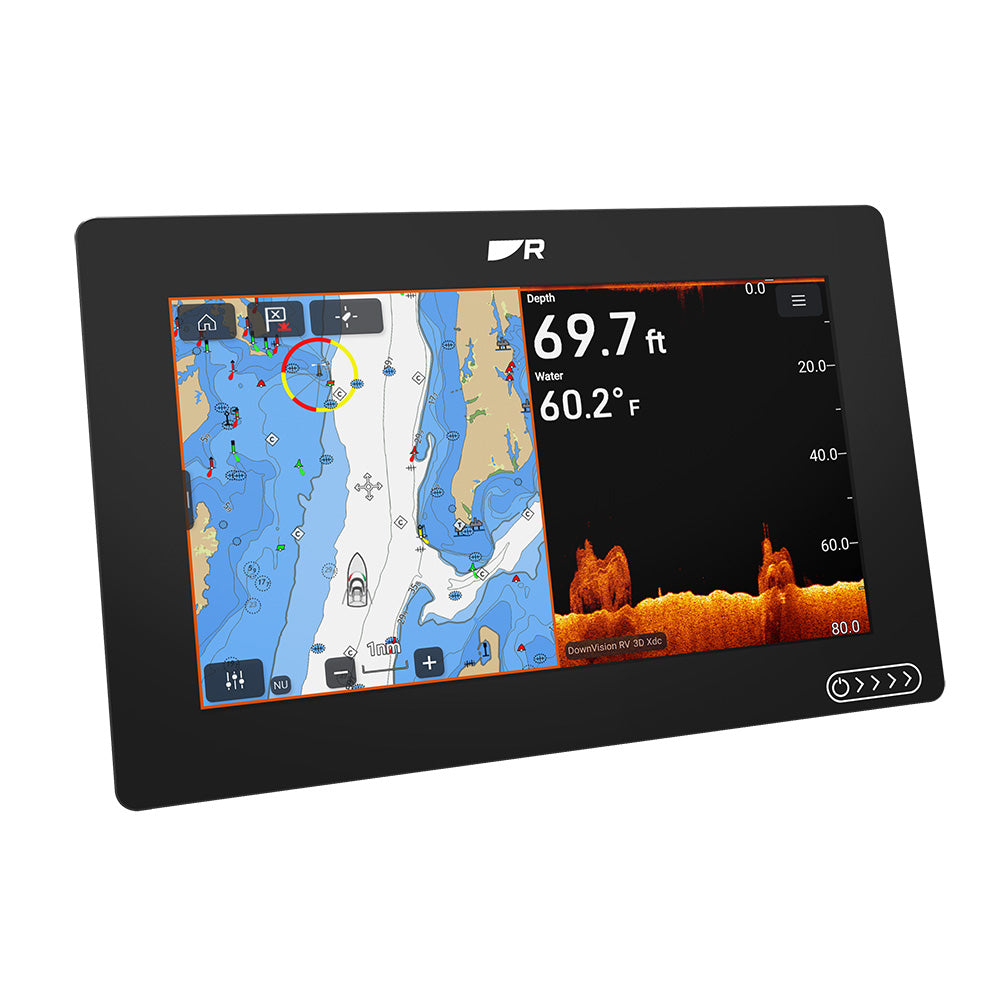

Raymarine Axiom 2 RV 9" Chartplotter/Fishfinder w/RealVision 3D Sonar Lighthouse North America Chart - No Transducer [E70723-00-102]

Axiom 2 RV 9" Chartplotter/Fishfinder with RealVision 3D Sonar & Lighthouse North America Chart - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.

See More Below the Surface with RealVision Fish Finder

Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all-in-one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 10.43" (W) x 7.39 (H) x 7.01" (D)
• Dimensions (Surface / Flush mounted) - 9.61" (W) x 6.21" (H) x 7.01" (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 11.98W
• Inline fuse / thermal breaker rating - 7A
• Size & Type - 9" (diagonal), IPS
• Resolution - HD 1280 x 720
• Brightness/luminance - 1500 bits / 1500 cd/m²
• Protective Coating - HydroTough™ (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz ± 5%), SideVision: (70 W / 350 kHz ± 5%), DownVision: (35 W / 350 kHz ± 5%), CHIRP High: (100 W / 200 kHz ± 5%)

Specifications:

• Cartography Brand: Navionics/C-Map
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 1"H x 4"W x 5"L WT: 9.2 lbs
