Raymarine I50 Speed Package w/ST900/P120 Thru-Hull [T70583]

Name: Raymarine I50 Speed Package w/ST900/P120 Thru-Hull [T70583]
Brand: Raymarine
SKU: EM-105510
Price: 622.99 USD
Availability: OutOfStock

$622.99 $649.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

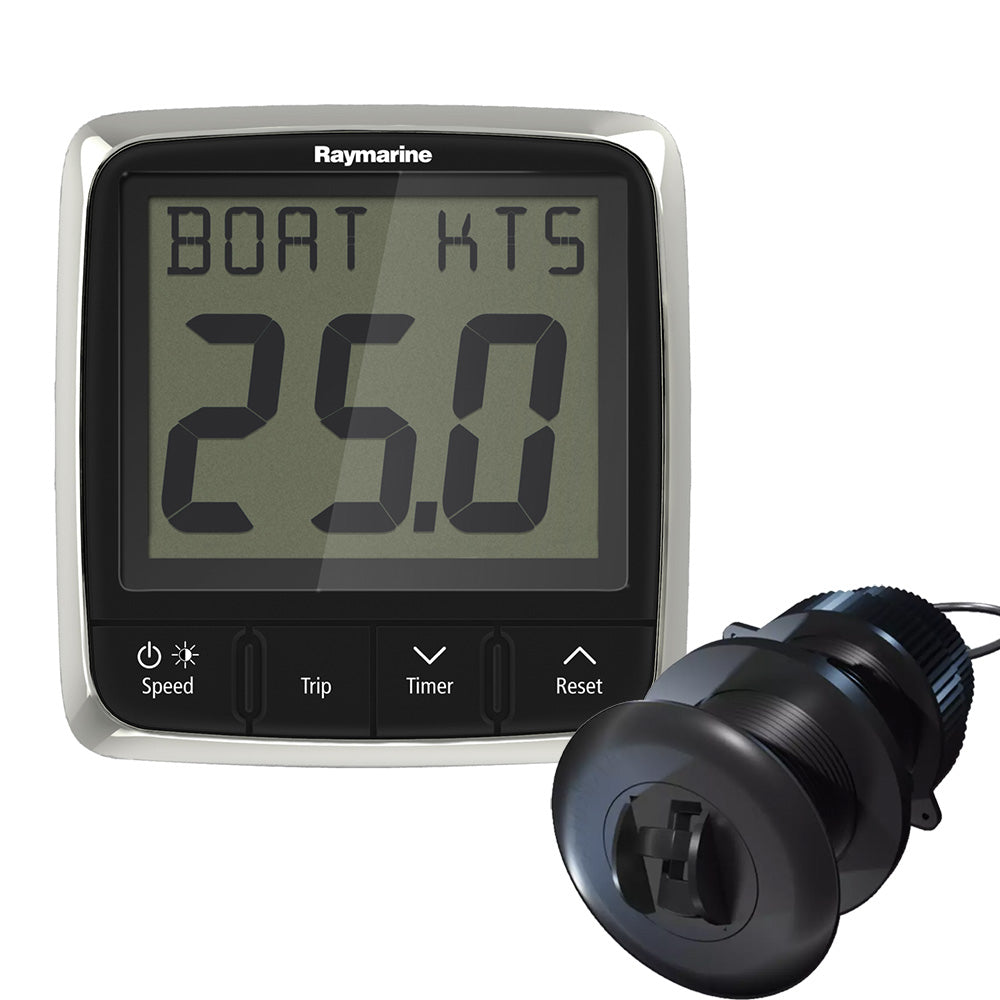

I50 Speed Package with ST900/P120 Thru-Hull

The i50 Speed instrument display is designed for easy viewing of your boat’s speed through the water or speed over the ground. The i50 Speed instrument can also display trip and log data as well as water temperature. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.

All i50 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i50 instrument can be configured as a Master display, hosting its transducer, or as a Repeater display, showing information from another source on the network. I50 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

Features:

Oversized digits for easy viewing by day or night
Red backlighting enhances night visibility
SeaTalk NG, NMEA2000, and SeaTalk network compatible
Built-in speed/temperature transducer interface
Compact footprint
Low power consumption
Surface mount or optional trunnion mount kit

Specifications:

Dimensions: Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)
Connections: 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections
Relative Humidity: Maximum 93%
Waterproof Rating: IPX6
Storage Temperature: -30 °C to +70 °C (-22 °F to 158 °F)
Operating Temperature: -20 °C to +55 °C (-13 °F to 131 °F)
Current (Typical/Max): 45-65 mA (display only) / 200 mA maximum (transducer connected)c
Nominal Supply Voltage: 12V DC
Operating Voltage Range: 10V DC to 16V DC
Power Consumption: < 1 W typical (display only), 2.4 W maximum (transducer connected)
LEN (NMEA 2000 Load Equivalency Number): 4

What's In The Box?
