Sea-Dog Dual Buss Bar w/Cover - 12 Terminals [426693-3]

Name: Sea-Dog Dual Buss Bar w/Cover - 12 Terminals [426693-3]
Brand: Sea-Dog
SKU: EM-100308
Price: 35.99 USD
Availability: InStock

$35.99 $50.95

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

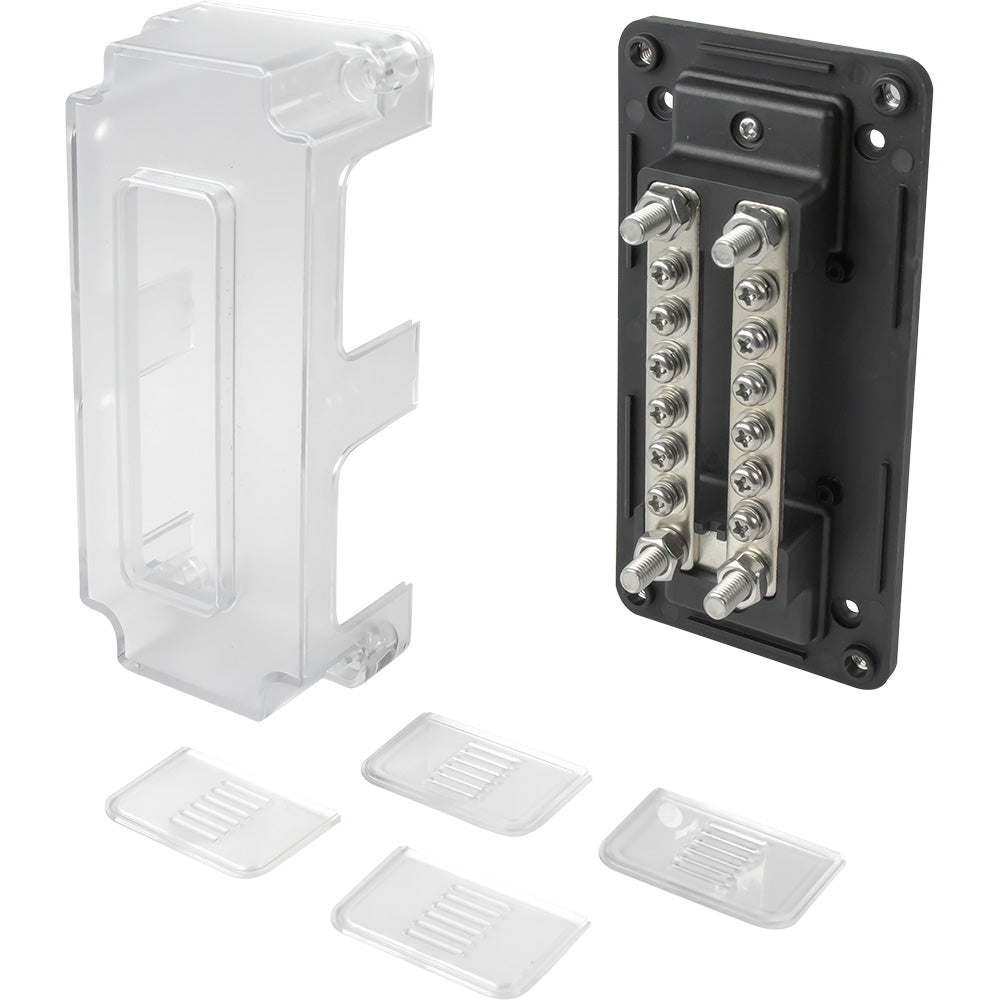

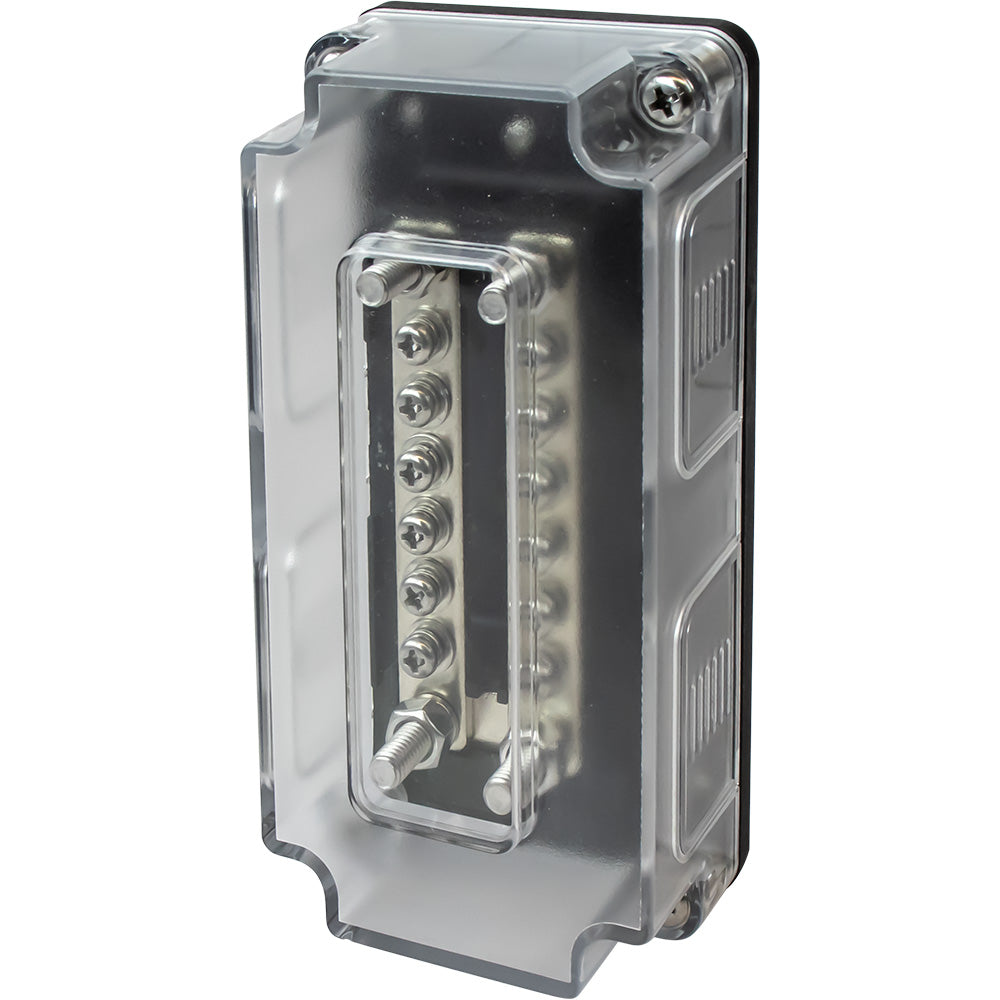

Dual Buss Bar with Cover - 12 Terminals

This dual bus bar is designed for DC positive or negative distribution on one block or AC neutral and safety ground collection on one block. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.

Features:

Includes two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals per buss
Installs with four #8 FH fasteners (included)
48VDC, 150A per buss; 300VAC, 150A per buss
CE and RoHS compliant

Specifications:

Terminals: 12
Length (inch): 5-1/2"
Width (inch): 2-3/4"
Depth (inch): 1-11/16"
Max. Amps: 150
Fastener: #8 FH
Weight: 0.59 lb.
