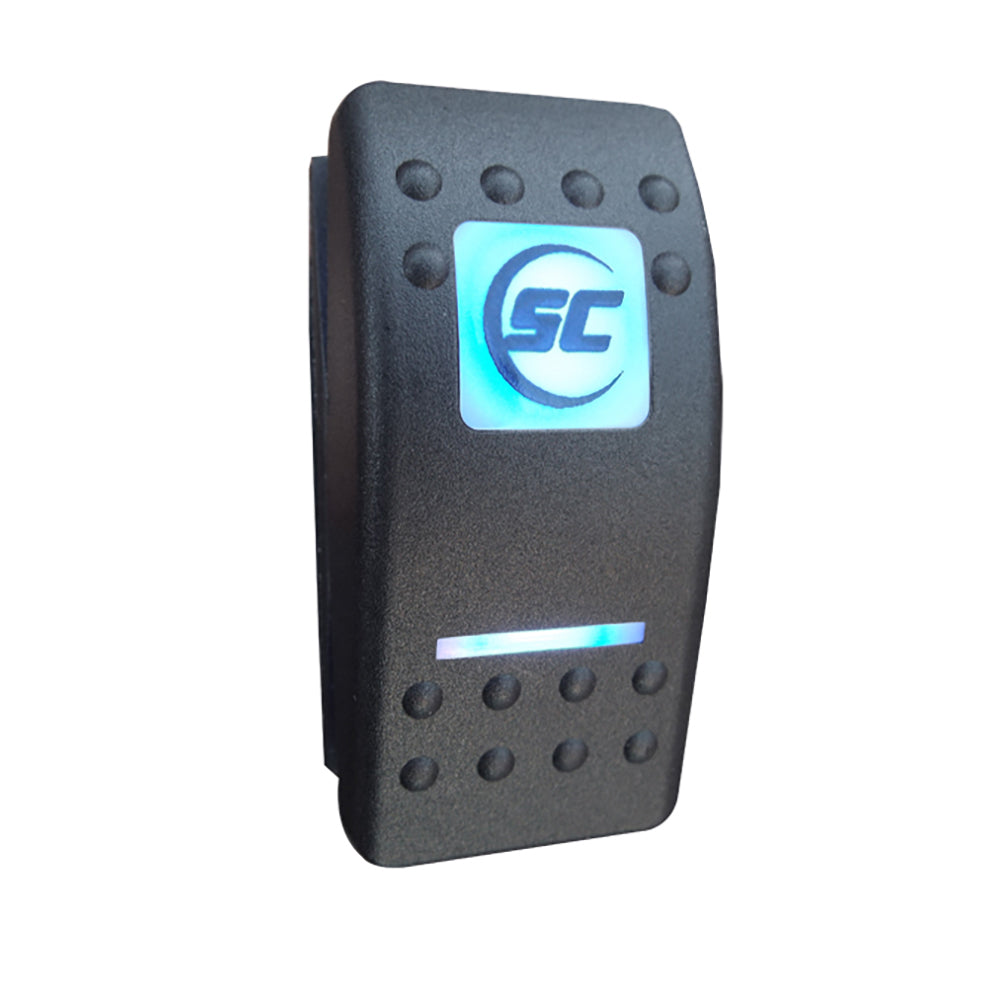

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]

Name: Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]
Brand: Shadow-Caster LED Lighting
SKU: EM-88257
Price: 40.25 USD
Availability: InStock

$40.25 $42.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

3-Position On/Off/Momentary Marine LED Lighting Switch

On / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.

Features:

Power On/Off
Color change
Multiple fade mode changes

Specifications:

Off/On/Momentary
LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation)
LED Color: Blue x 2
Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
Sealing IP66/68, for above-panel components of actual switch only
Operating Temp. -40°C to +85°C
Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
Switch and actuator color: Black

Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.
