Shadow-Caster LED Lighting  |  SKU: EM-98042  |  Barcode: 8500243425902

Shadow-Caster 6-Channel Digital Switch Module Shadow-NET Control f/Single Color 3rd Party Lighting [SCM-PWR6]

Sale price $364.60 Regular price $382.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

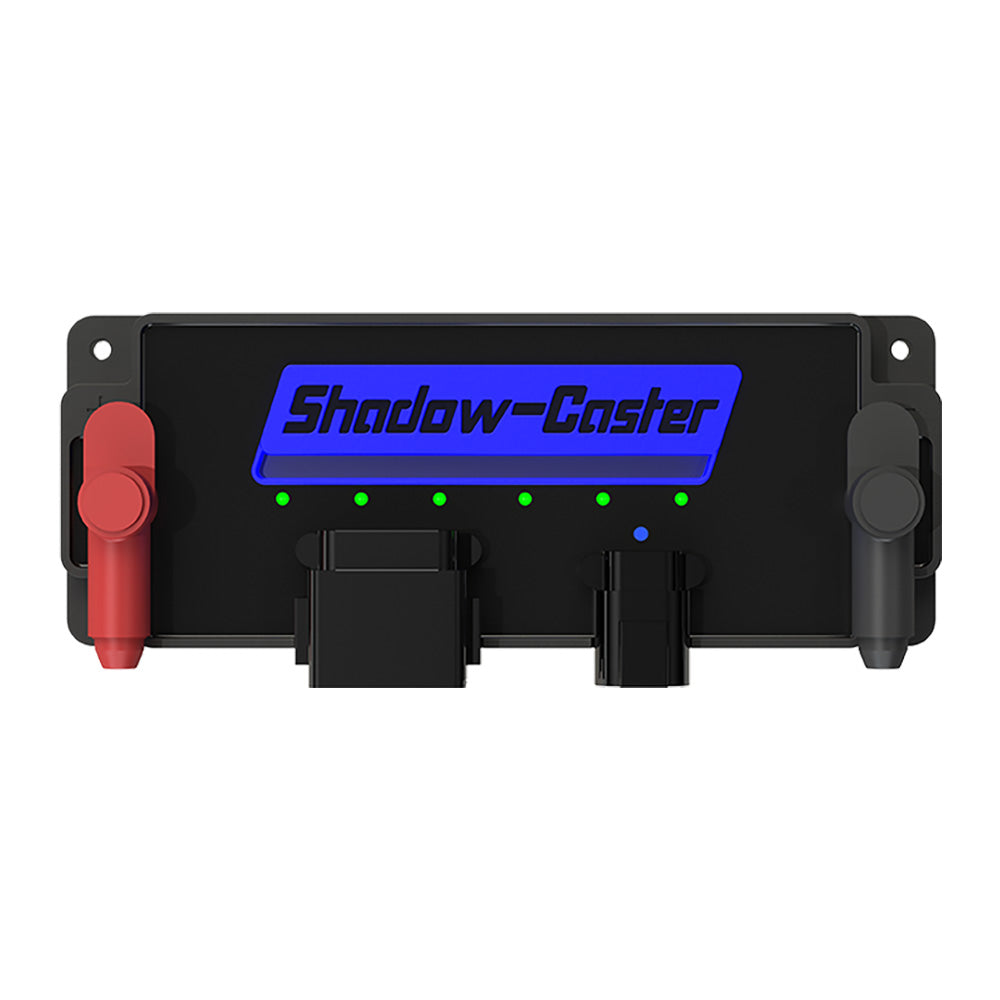

6-Channel Digital Switch Module Shadow-NET™ Control for Single Color & 3rd Party Lighting

The 6-channel digital switch module offers a convenient way to integrate any standard light with the Shadow-Caster™ MFD interface. Simply plug in the module to the Shadow-NET™ system and switch support will automatically populate on the screen.

Each module provides 6 channels of support, that will handle up to 10 amps per channel with digital fault protection. There is also a manual switch input for overriding the interface.

Features:

  • 6 independent digital switches
  • Control other brands of lights with the Shadow-Caster™ MFD interface and phone app
  • Digital over current fault protection
  • Manual switch override
  • Green/red LEDs provide the status of each channel
  • Full integration with Shadow-NET™ interface
  • The blue backlight indicates the power state

Specifications:

  • 12/24V operation
  • 10A each channel
  • 5/16” power lugs
  • IP67 Deutsch connections
  • Power lug protection boots

What's Included?

  • 6 channel digital power switch
  • Mounting hardware 4 #8 PH x.5”
  • Pre-wired mating connectors
  • 3 year standard warranty

Quick Guide (pdf)
