Shadow-Caster Eagle Ray LED Light Bar - Black Housing Dual Optics [SCM-EAGLE-RAY-BK]

Name: Shadow-Caster Eagle Ray LED Light Bar - Black Housing Dual Optics [SCM-EAGLE-RAY-BK]
Brand: Shadow-Caster LED Lighting
SKU: EM-102988
Price: 2199.00 USD
Availability: OutOfStock

$2,199.00 $2,299.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

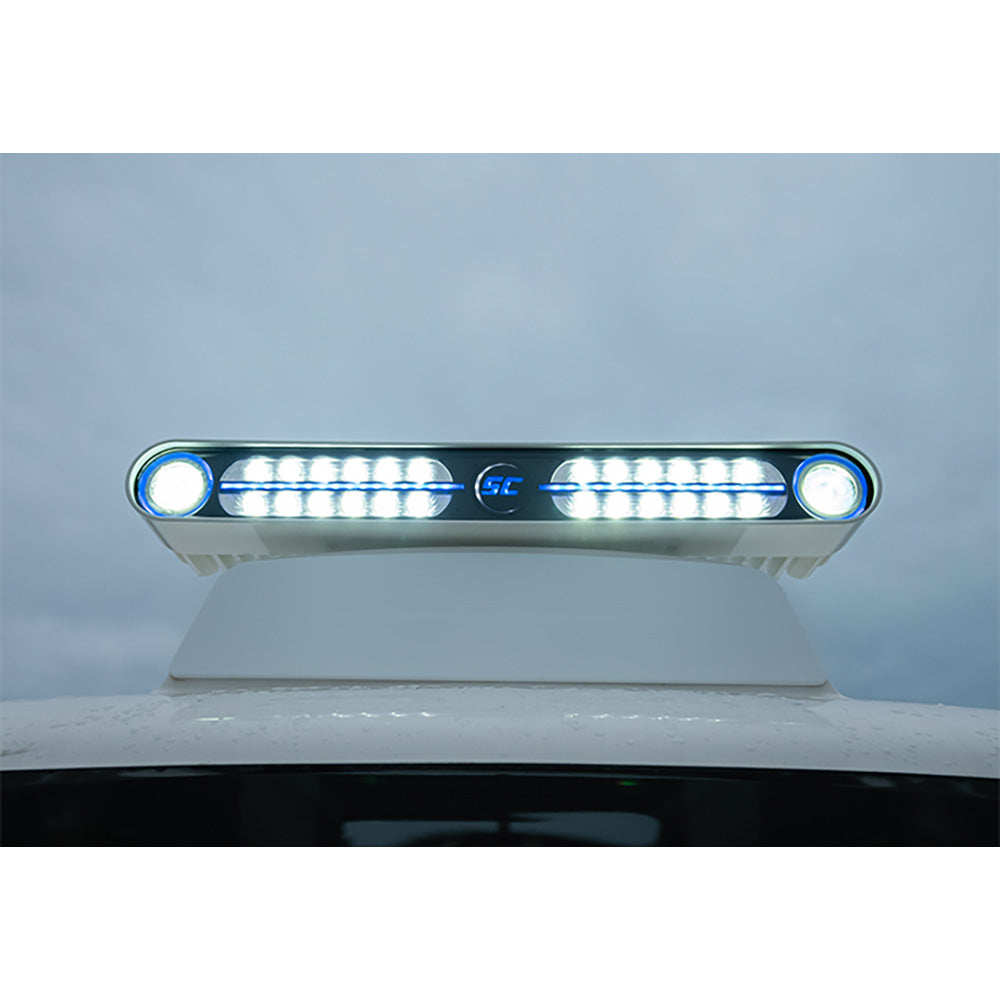

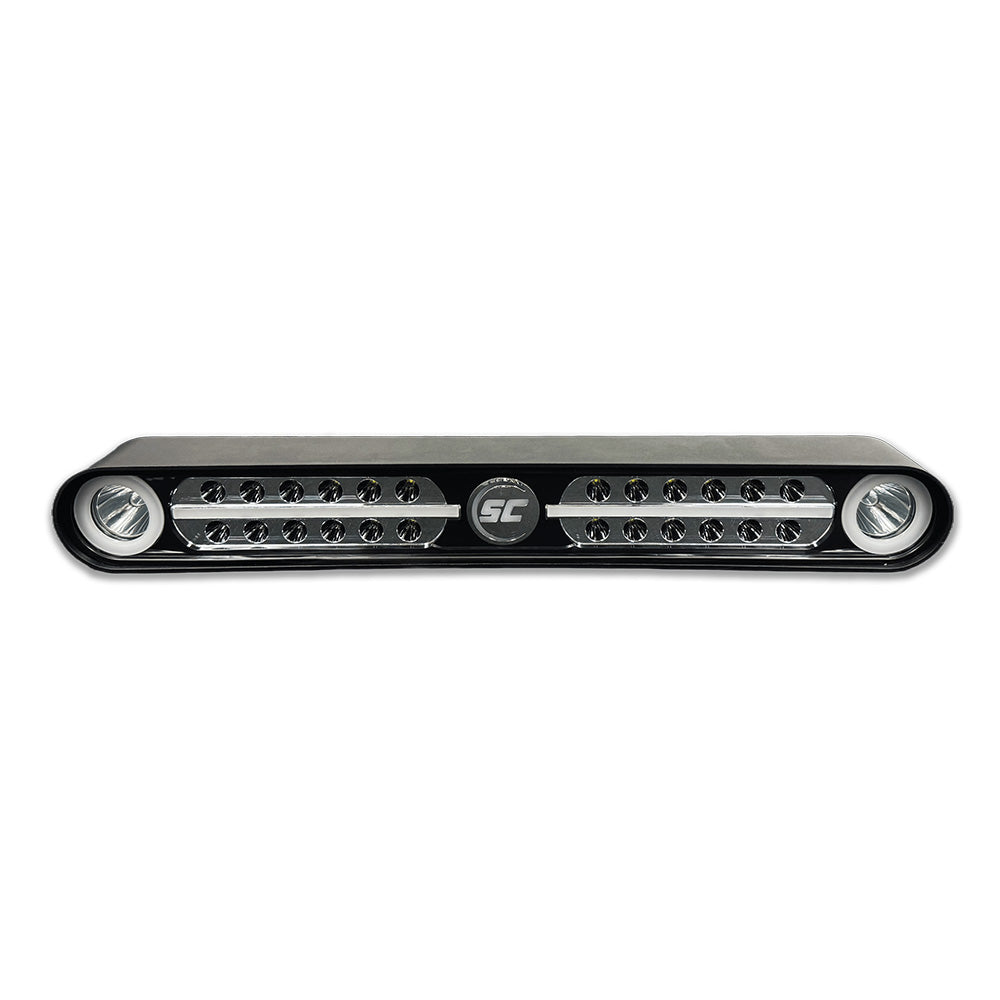

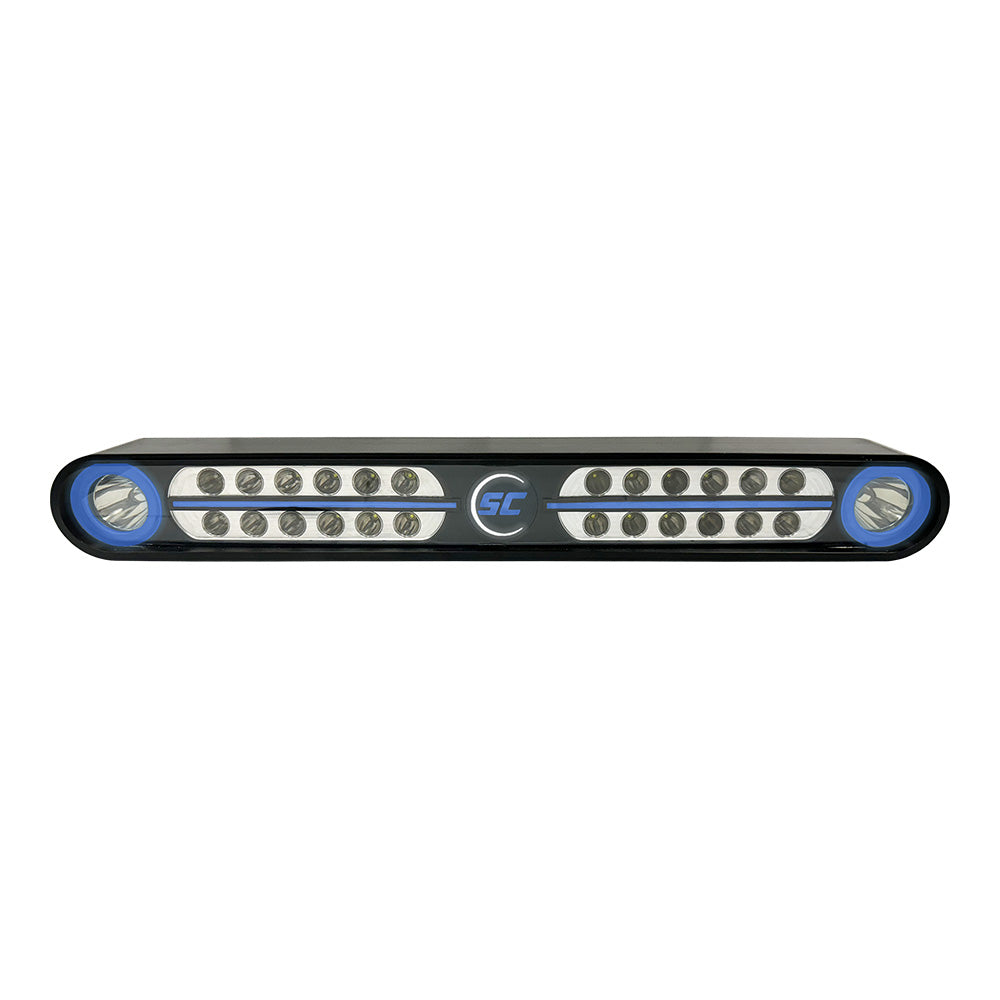

Eagle Ray LED Light Bar - Black Housing & Dual Optics

Utilizing automotive lighting technology and novel beam shaping optics, Shadow-Caster has created the Eagle Ray – a unique light bar with a combination of focused laser-driven white light beams and a wide 60-degree LED flood array to efficiently light the way.

The focused white lights are ideal for long-distance viewing and penetrating fog, rain, and mist. The beam angle and brightness are adjustable with a push button or the Shadow-Caster® NMEA 2000 Light Commander interface.

Laser Features:

Automotive-grade laser-driven white lights
Blue halo illumination around optics indicates a power state
Adjustable 5-100° beam angle control with a switch or MFD interface

Flood Features:

24 bright white LEDs
Blue accent light strips indicate the brightness level
60-degree beam angle
Adjustable brightness control with a switch or MFD interface

Technical Information:

20,000 lumens
Billet Aluminum housing in black finish
Remote power trigger to provide simpler installation (main current supply is not controlled through a switch)
Borosilicate glass window
10-30V input
200W max power
16.5A current draw at 12V DC
2.5” H x 20” W x 5.4” D [65.3 x 506.5 x 136.9mm]

Control Options

On/off Push Buttons

Click the on/off button to turn the laser/flood lights on. Press and hold the button to adjust the beam angle (laser) or brightness (flood). Click the on/off button to turn the laser/flood lights off.

Standard Marine Rocker Switch

Click the rocker switch up/down button to turn the laser/flood lights on. Press and hold the switch up/down to adjust the beam angle (laser) or brightness (flood). Click the rocker switch up/down button to turn the laser/flood lights off.

Shadow-NET®/ NMEA 2000 Control

Full feature control through a Multi-Function Display (MFD). The Shadow-NET® Light Commander allows for easy and independent control of brightness and beam angle for the Eagle Ray Light Bar. Create and store pre-configured light settings for use as part of a lighting ‘scene’ for convenience at night.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:
