Simrad  |  SKU: EM-85536  |  Barcode: 9420064106578

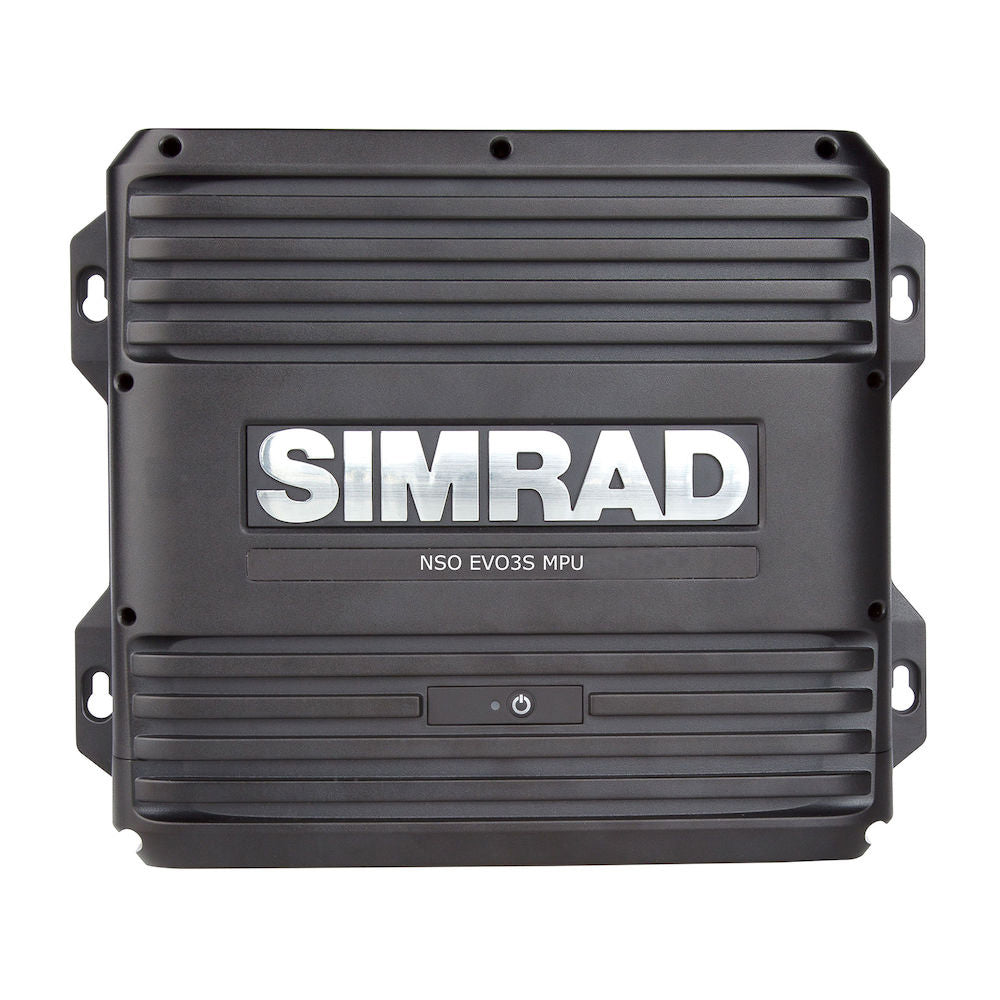

Simrad NSO evo3S MPU Processor [000-15100-001]

Regular price $4,999.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

NSO evo3S MPU Processor

Create truly customized multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 33' (10M) and larger.  This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors.  Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.

 Features:

  • Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad-Core processors and the connectivity options needed to integrate and expand your system vessel-wide.
  • Dual monitor support - enabling two independent stations
  • Quad-Core processors for supreme performance. The NSO evo3S processor features two quad-core processors delivering category-leading response times across connected displays.
  • Industry-standard vessel-wide connectivity. NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third-party accessories.

 Technical Specifications:

  • Connectivity - NMEA 2000, NMEA 0183, ethernet, video inputs x 2, video output x 1, Wi-fi compatible with external module
  • Languages - Standard Simrad language pack
  • Supply Voltage - 9 - 31.2 V DC
  • Waterproof rating - IPX2
  • Dimensions (W x H x D) - 11" x 9.1" x 2.5" (281 x 232 x 66 mm)
  • Weight - 2.33lb (1.06kg)

In the Box:

  • Processor x 1
  • Power cable - 6.5' (2 M) 4 pin to bare wire x 1
  • Ethernet cable - 4" (.1 M) x 1
  • NMEA 0183 cable - 6.5" (2 M) x 1
  • NMEA 2000 cable - 6' (1.8 M) x 1
  • NMEA 2000 power cable with T-Connector - x 1
  • NMEA 200 terminal resistor kit x 1
  • NMEA 2000 T-Connector x 2
  • Instruction manual

*Sold as an Individual


Owner's Manual (pdf)
