Tigress | SKU: EM-92242 | Barcode: 661033888708

Tigress XD Bay Series Top Mount [88870]

Name: Tigress XD Bay Series Top Mount [88870]
Brand: Tigress
SKU: EM-92242
Price: 949.99 USD
Availability: InStock

$949.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

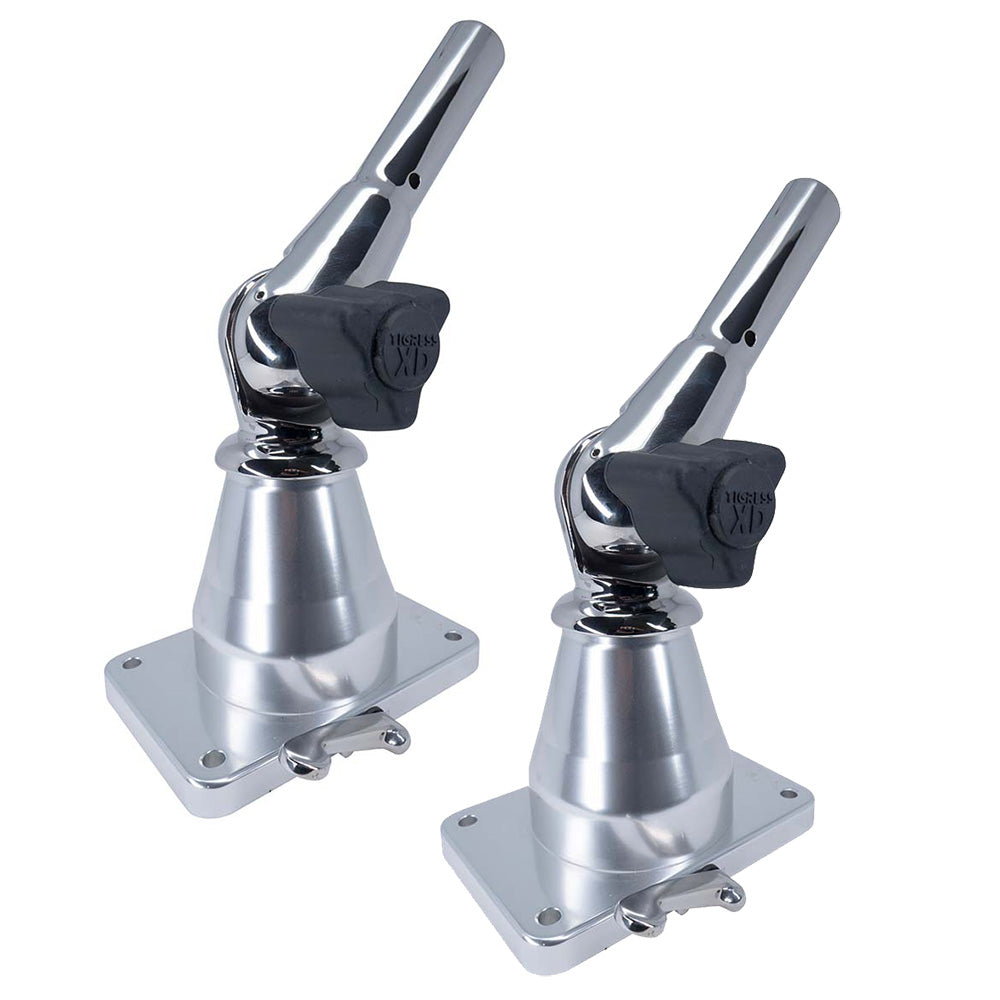

XD Bay Series Top Mount

Features:

For use on sport fishing boats up to 40 feet
Accepts all Tigress XD 1-1/8” butt diameter Outriggers
19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
User-friendly Side Operating Lever
Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
5/16” through x 3.000” x 5.000” 4-bolt pattern
Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
3-Year Limited Warranty
