Veratron LinkUp Intelligent Temperature Pressure [B00070501]

Name: Veratron LinkUp Intelligent Temperature Pressure [B00070501]
Brand: Veratron
SKU: EM-93698
Price: 239.58 USD
Availability: OutOfStock

$239.58 $266.20

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

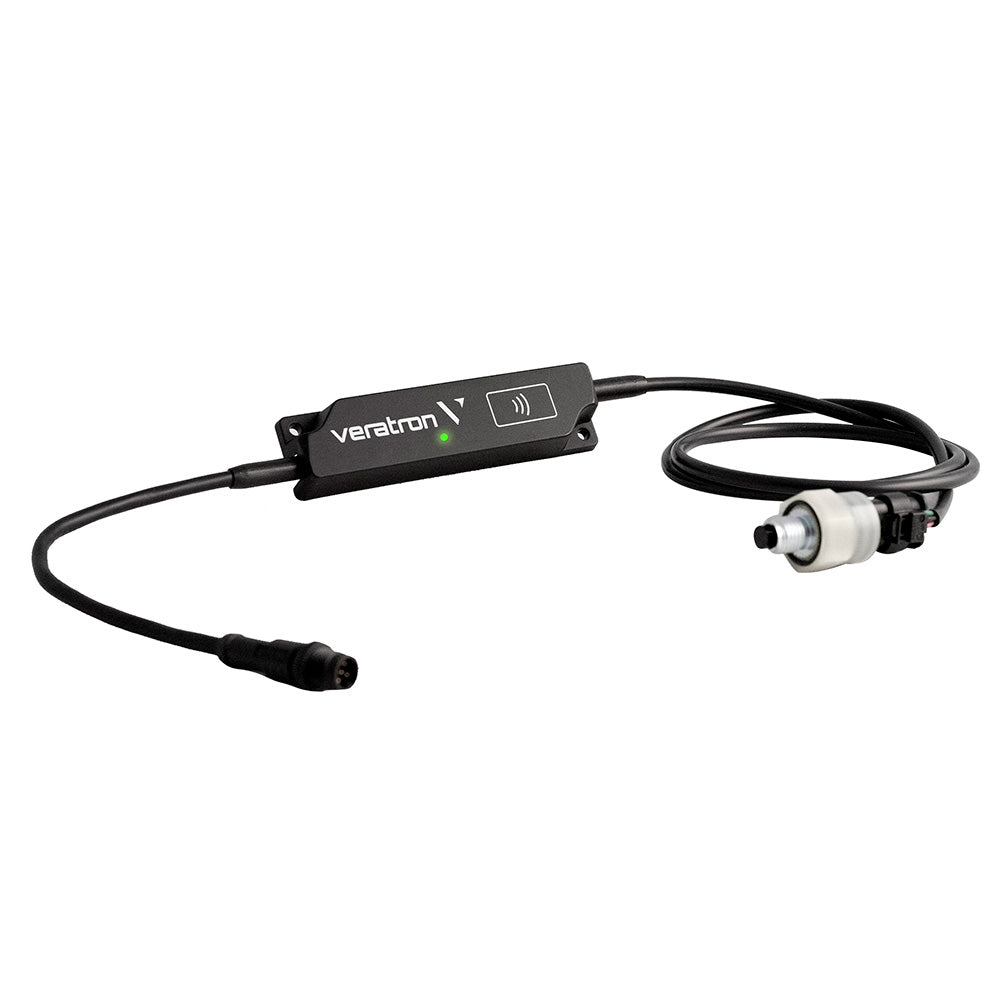

LinkUp Intelligent Temperature & Pressure

This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.

Features:

Interface to the new electronic 2-in-1 sensor
Oil Temperature and Pressure in a single sensor
Rugged and reliable design derived from the automotive field
ASIC-controlled sensor
PWM (Pulse Width Modulated) output to transmit both pressure and temperature

Technical Specifications:

M12 mounting thread
IP 69/K protection class
5V power feed provided by the LinkUp
Temperature accuracy ± 1°K in the 135 °C – 160 °C range
Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above
Temperature range: -40 °C + 160 °C
Pressure range: 0.5 to 10.5 bar
1M cable length

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Owner's Manual (pdf)
Brochure (pdf)
