Veratron  |  SKU: EM-84745  |  Barcode: 7640178729384

Veratron NMEA 2000 Liquid Level Sensor - 200 to 600mm [B00041201]

$358.74 $398.60

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

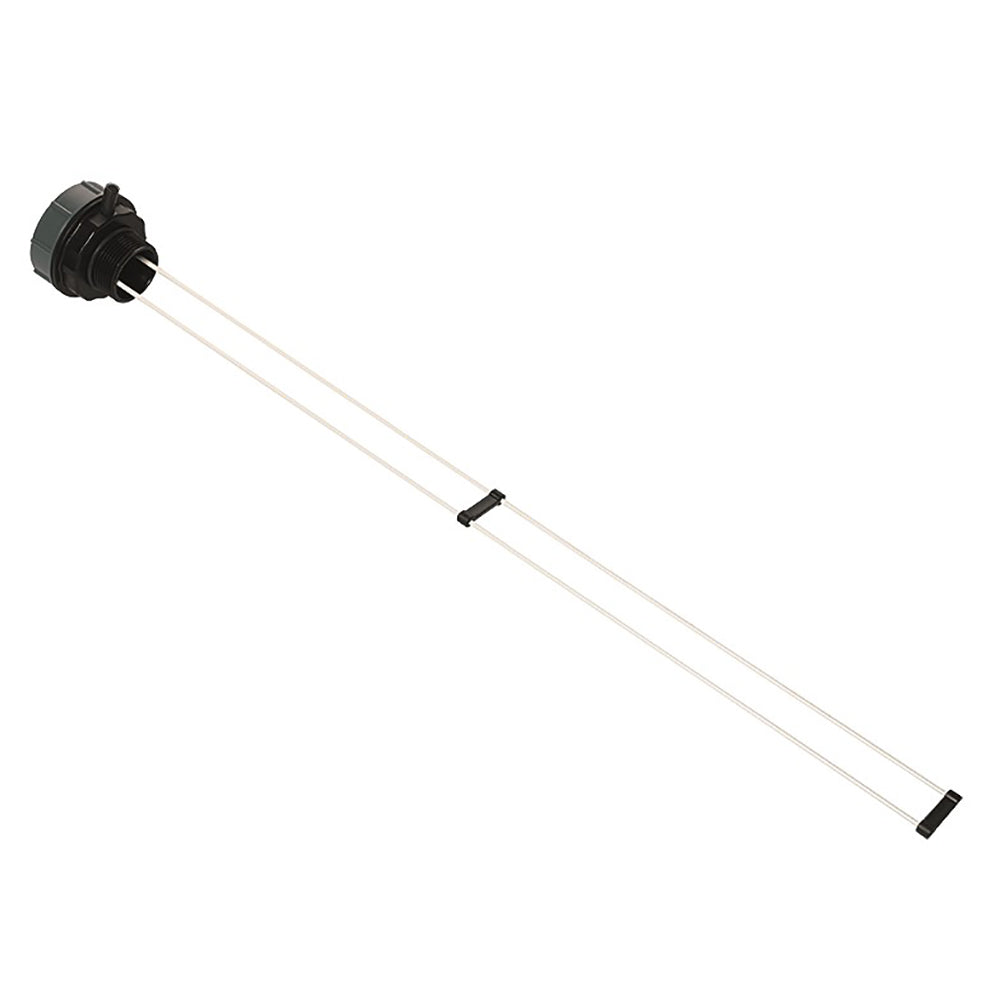

NMEA 2000 Liquid Level Sensor - 200 to 600mm

The NMEA 2000® Liquid Level Sensor overcomes a laundry list of issues that plague traditional fluid level monitoring solutions, including being certified for drinking water—an industry first.

Powered by an NMEA 2000 network, three models are available to accommodate a wide range of tank depths from 200 mm to 1500 mm.

The capacitive sensor is easily selectable between fresh and waste water, and is micro-adjustable for tank size. Unlike reed technology that only reports tank level in graduated steps, the Veratron NMEA 2000 Liquid Level Sensor, thanks to capacity measuring technology, offers level linearity on the full range. This provides precise data to make informed decisions on refilling and pumping out or discharging, for up to 4 tanks.

Completely plug-and-play, the Veratron sensor simply connects directly into the NMEA backbone with its integrated Micro-C M12 5-pin NMEA 2000 connector. This provides the nominal 12V power and the ability to view tank level from any networked display.

UL94, CE, REACH and RoHS compliant, the NMEA 2000 Liquid Level Sensor is IPX9K rated as an exposed device.

Features:

  • Includes Flange Installation Kit
  • 300mm NMEA Pigtail Connection

Technical Specifications:

  • Connector - NMEA 2000 Micro-C 5 pin M12 Male
  • IP Protection Class - IPX9K

In the Box:

  • Sensor
  • Sealing Kit
  • Rubber Gasket
  • Mounting Bracket
  • Mounting Screws and Allen Wrench

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Color: Silver
  • Box Dimensions: 4"H x 4"W x 30"L WT: 1.45 lbs
  • UPC: 7640178729384
