Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]

Name: Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]
Brand: Veratron
SKU: EM-83063
Price: 298.53 USD
Availability: OutOfStock

$298.53 $331.70

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

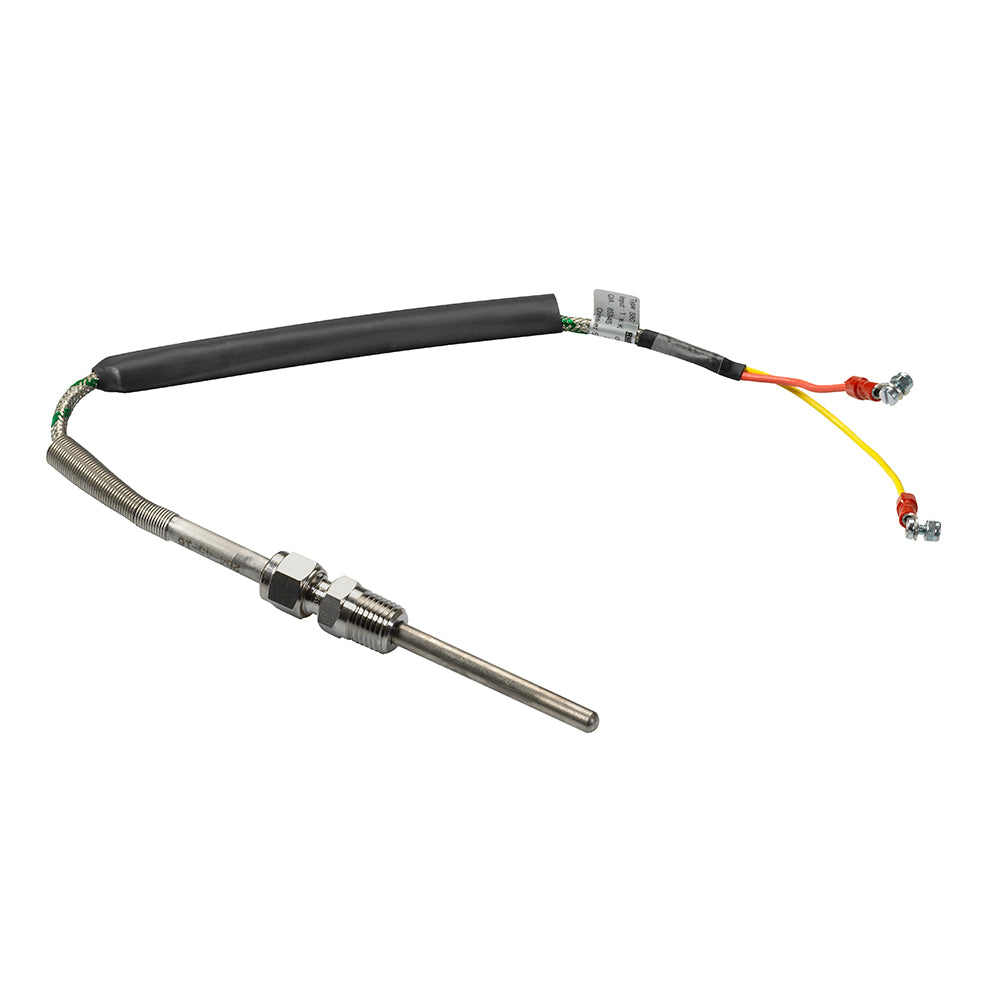

Pyrometer Sensor - 100-900°C/250-1650°F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

Plug-and-Play installation and configuration
NMEA 2000® certified

Technical Specifications:

Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
Input Signal - LIN bus
Operating Voltage - 6 - 24 VDC
Pyrometer Sensor
Thermocoupler Element
Measurement Range - 100-900°C/250-1650°F
Communication - Analog
Signal Output - 0 - 37 MV TC
Sensor Connector - Ring Tongue
Thread - R 1/4" Male
Warning Contact - None
Connector Type - Kabeloog

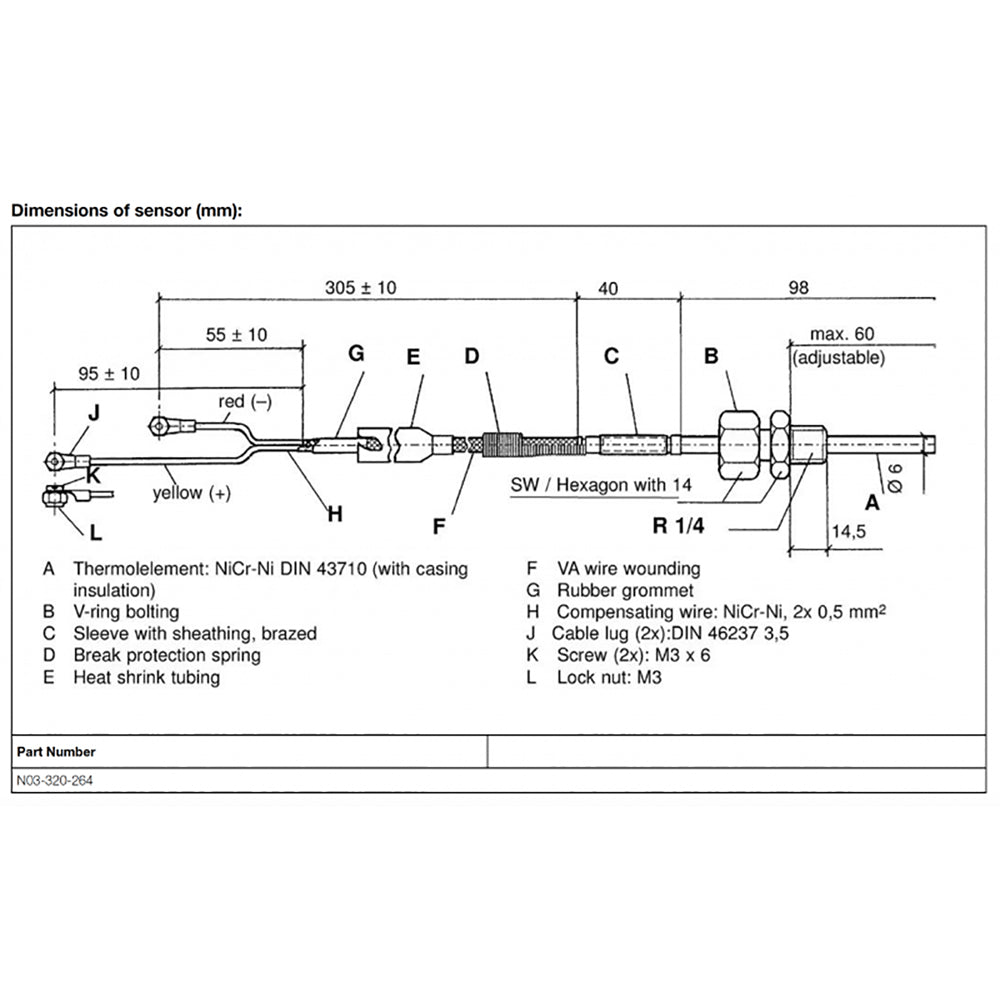

Sender element length + thread (L) - Adjustable maximal 60 mm
Sensor diameter - 6 mm
Torque - 20 Nm
