Victron Energy  |  SKU: EM-104864  |  Barcode: 8719076059462

Victron Energy Meter VM-3P75CT Single + 3-Phase [REL200300100]

$171.70 $202.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

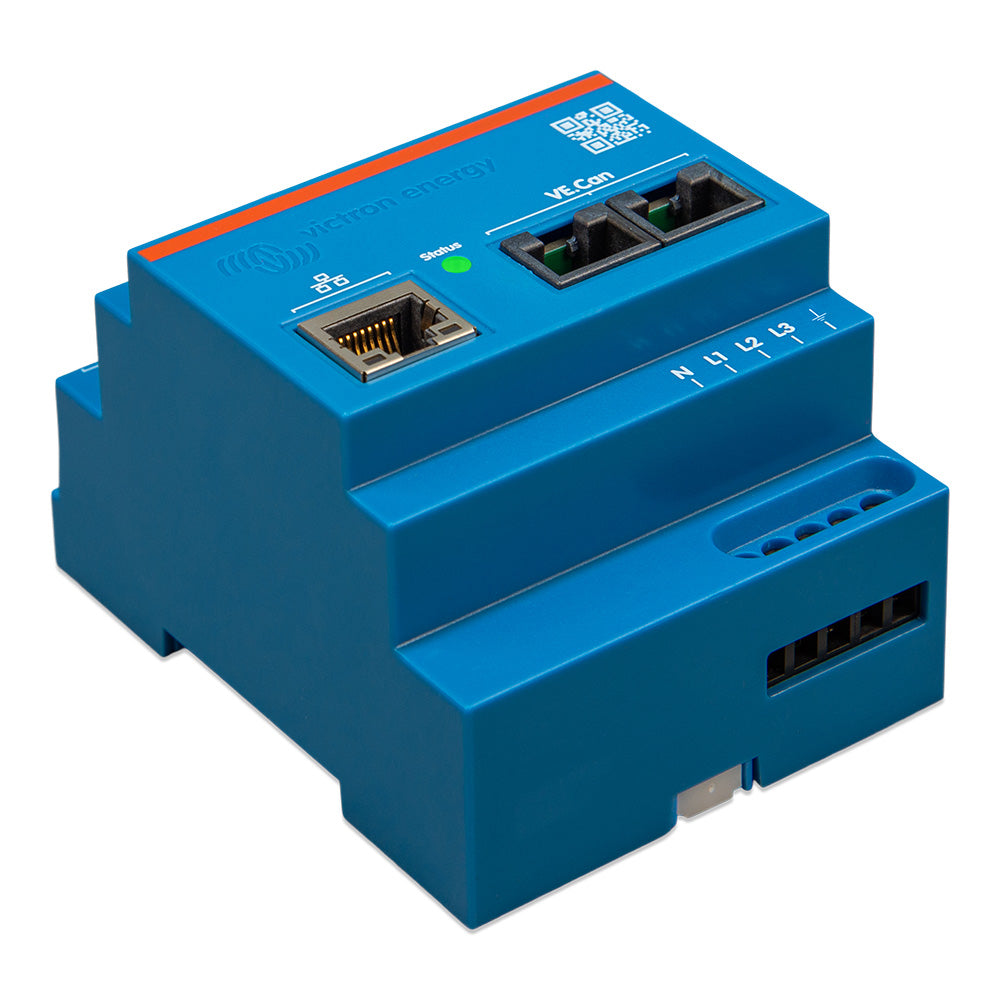

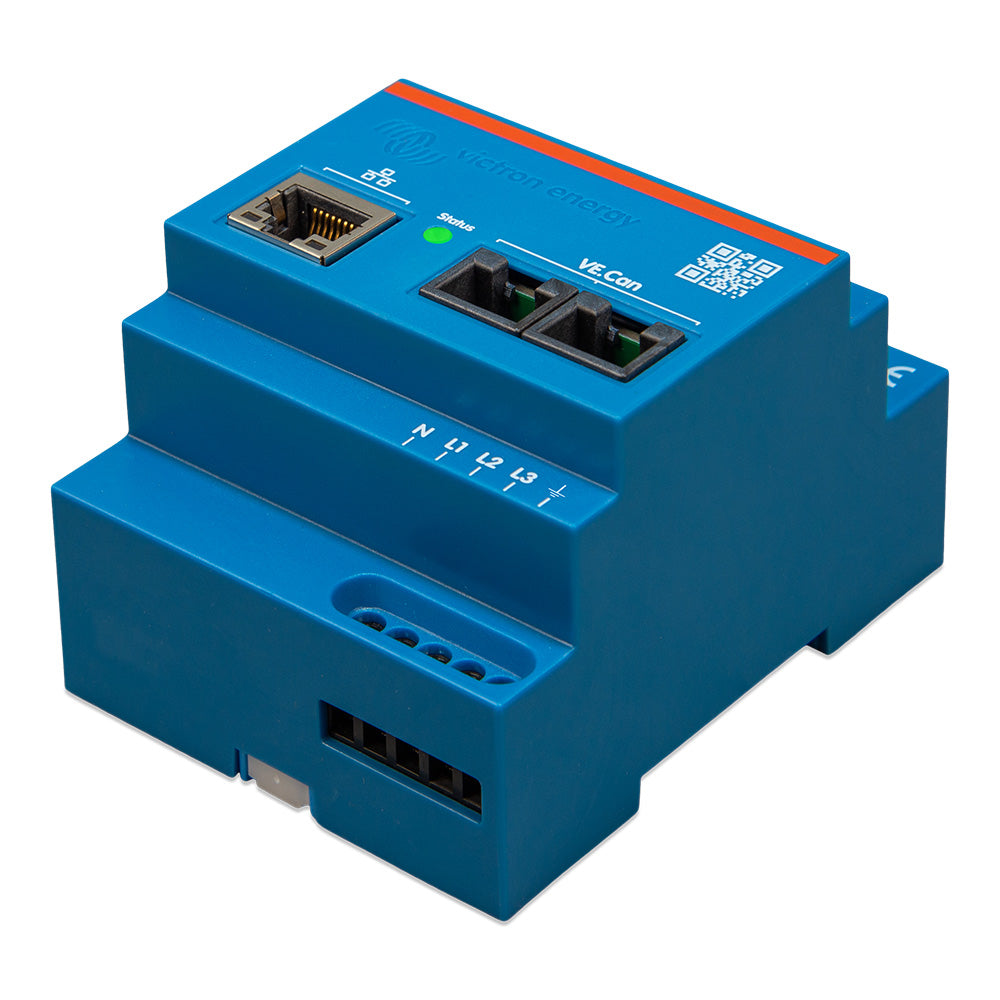

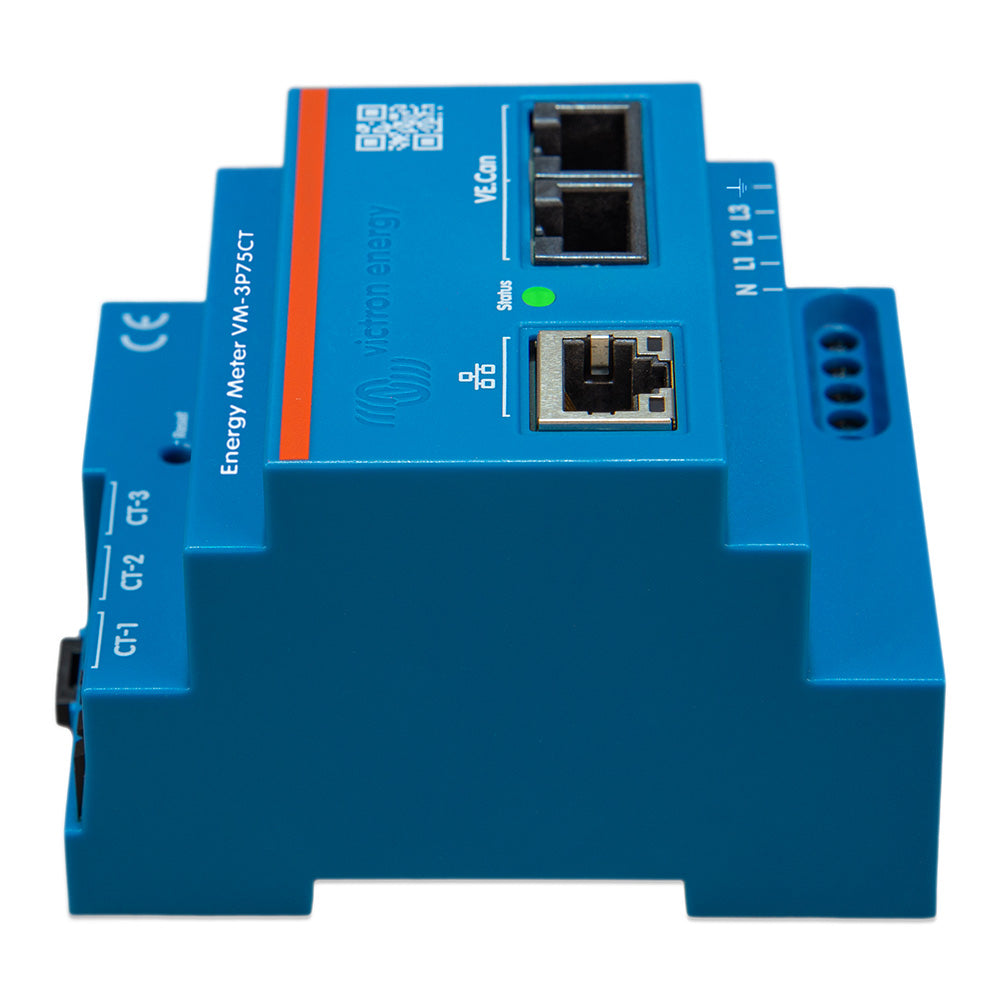

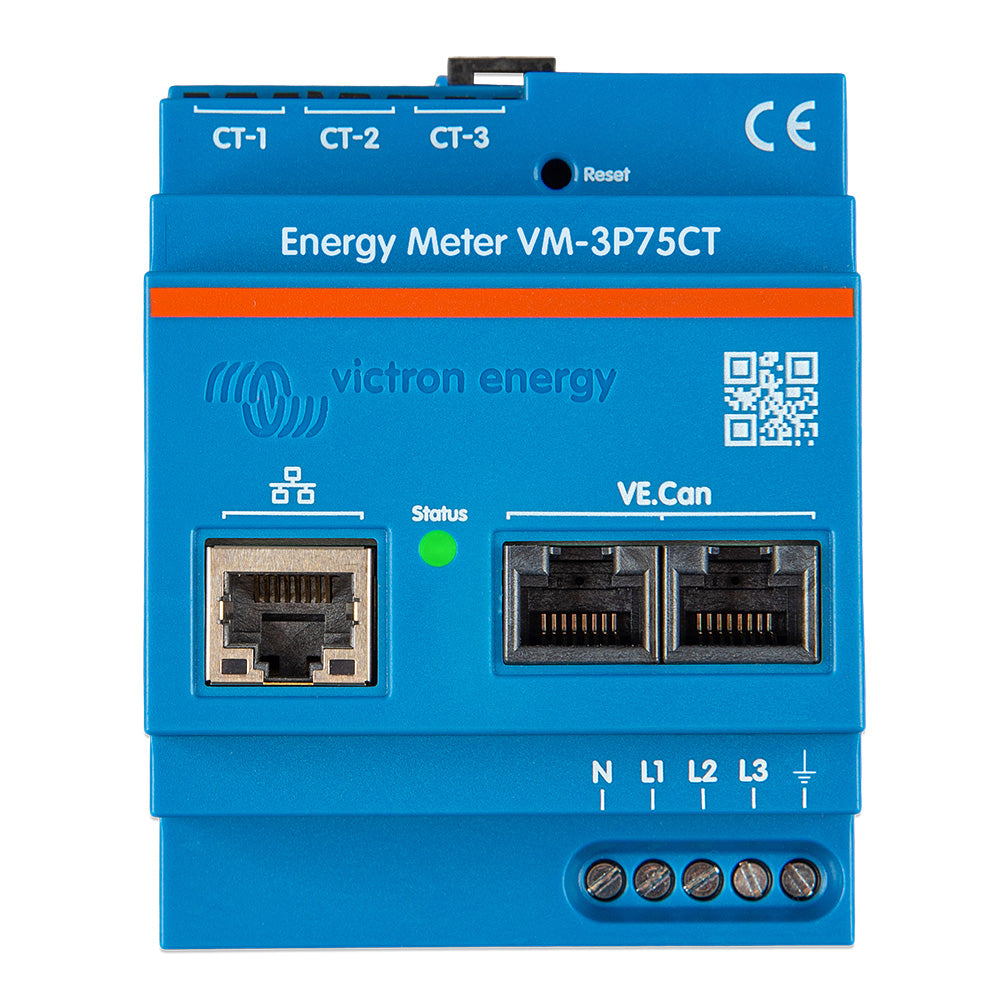

Energy Meter VM-3P75CT Single + 3-Phase

The Victron VM-3P75CT energy meter is a standard device to measure the power and energy of single- and three-phase applications and calculates each phase's power values and broadcasts this over VE.Can or Ethernet with a high rate.  It has built-in Ethernet and VE.Can ports for connecting to a GX device and the split-core current transformers enable easy and quick installation without modifying existing wiring.

The energy meter works out of the box (the firmware may need to be updated; details can be found in the Firmware Updates chapter) as a grid meter for systems with a MultiPlus and Quattro. Configuration (via VictronConnect) is only required for changing the role and manual IP configuration, rather than the default DHCP.  Its data is displayed on a GX device such as the Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM Portal.

Specifications:

  • Voltage connection: Direct
  • Input voltage range L-N: 85 to 265VAC
  • Input voltage range L-L:150 to 460VAC
  • Frequency: 50/60Hz
  • Current connection: Via current transformers (included - wire length 640mm (25.2in)
  • Rated current: 75A
  • VE.Can communication port: Two RJ45 connectors (VE.Can terminators included)
  • Ethernet communication port: One RJ45 connector, Modbus UDP
  • Refresh rate: 100ms
  • Type: Self-power supply via L1-N
  • Switch or circuit breaker: Required as a means of a disconnecting device - not included
  • External fuse [1]: Required in the neutral conductor - 500mA, not included
  • Consumption: 1.45W / 3.1VA
  • Frequency: 50/60Hz
  • Material & Color: Polycarbonate, blue (RAL5012)
  • Voltage connection: Screw terminals 0.25 - 1.5mm2 (24 - 16AWG)
  • Current transformer connection: Pluggable screw terminals (included)
  • Protection category: IP20
  • Weight: 370g (including packaging)
  • Dimensions: 90 x 71 x 59mm (3.5 x 2.8 x 2.3in)
  • Indoor/outdoor usage: Indoor only
  • Operating temperature: From -10 to +55 °C
  • Storage temperature: From -20 to +70 °C
  • Relative humidity: < 90% non-condensing
  • Altitude: 2000m (6562ft)
  • Mains supply voltage fluctuations: ±0.1Vin
  • Overvoltage category: Cat. III
  • Pollution degree: 2

What's In The Box?

  • Victron VM-3P75CT with 3 input terminal blocks
  • 3x Split-core current transformer, wired ready for connection
  • Wire length: 640mm (25.3")
  • VE.Can terminators (2-pieces)
Please contact your dealer for any returns, repairs or support issues related to this product.
Quick Guide (pdf)
