Victron Energy  |  SKU: EM-111828  |  Barcode: 8719076054221

Victron Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL458 [PIN242122510]

$362.10 $426.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

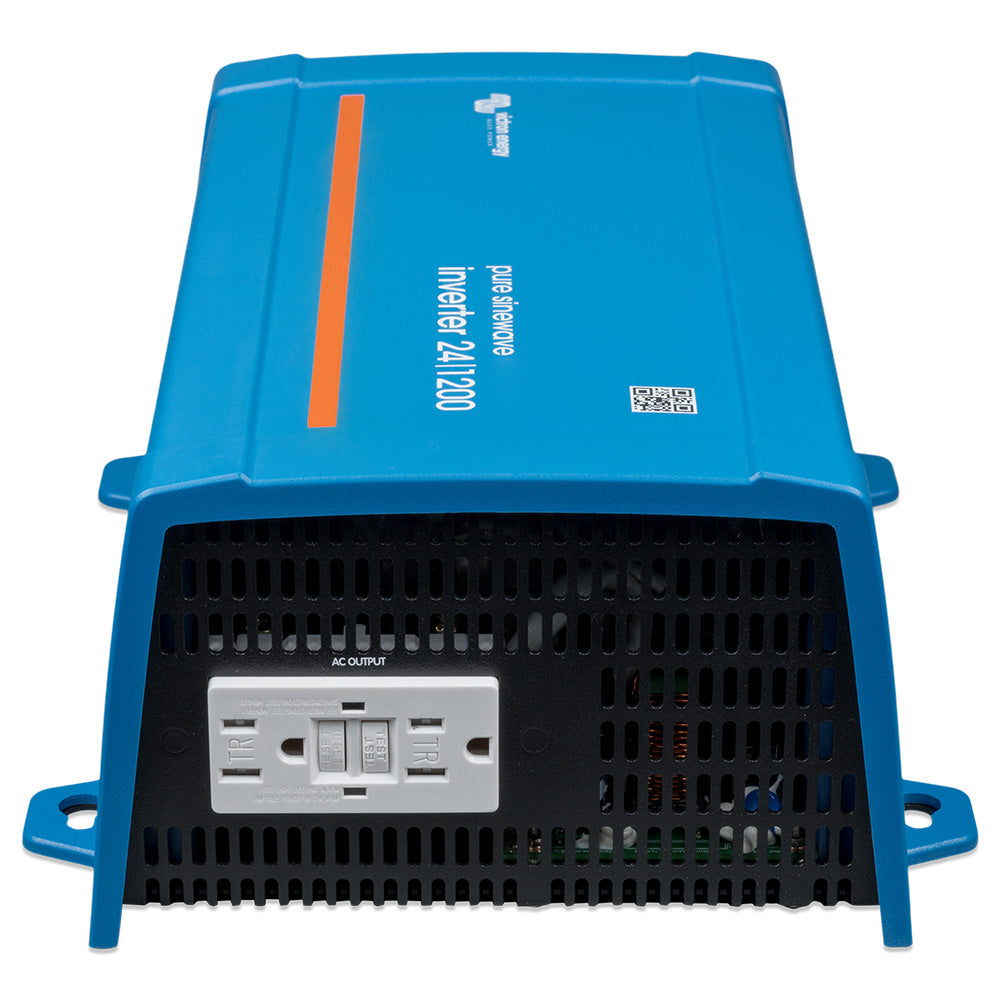

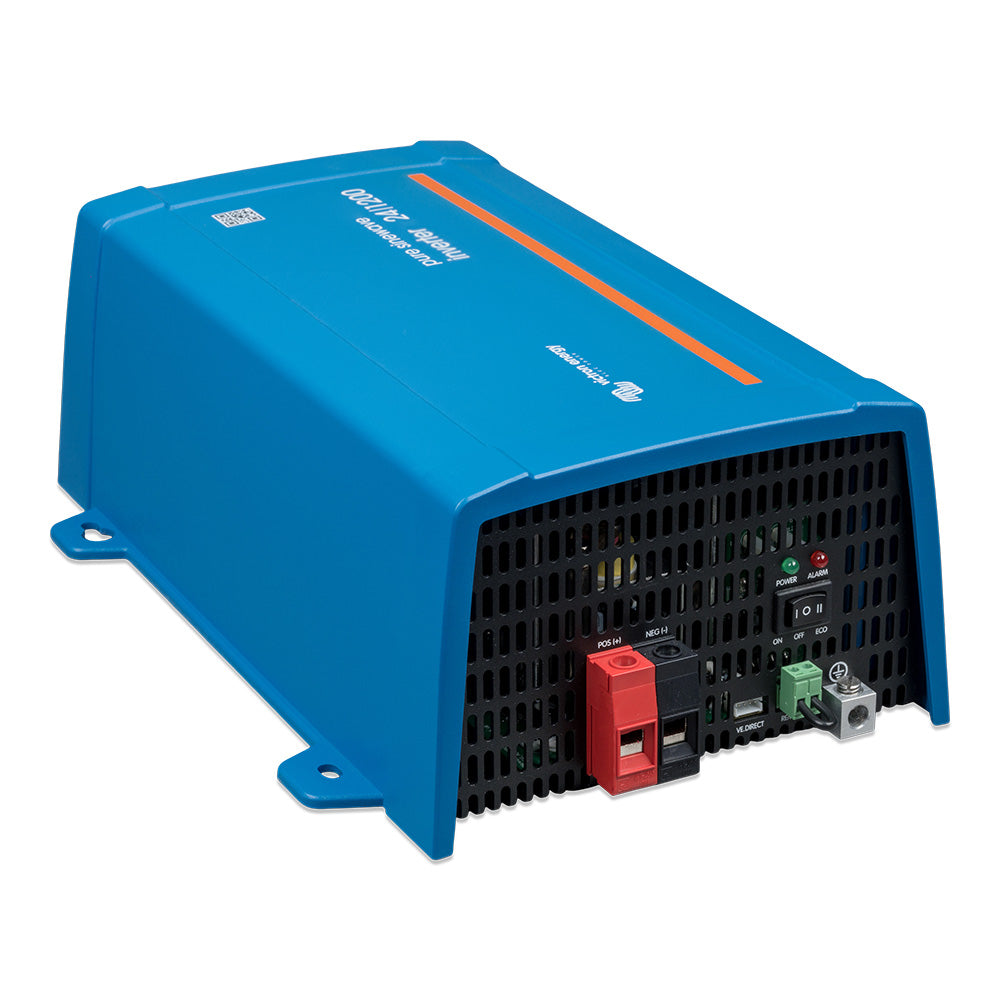

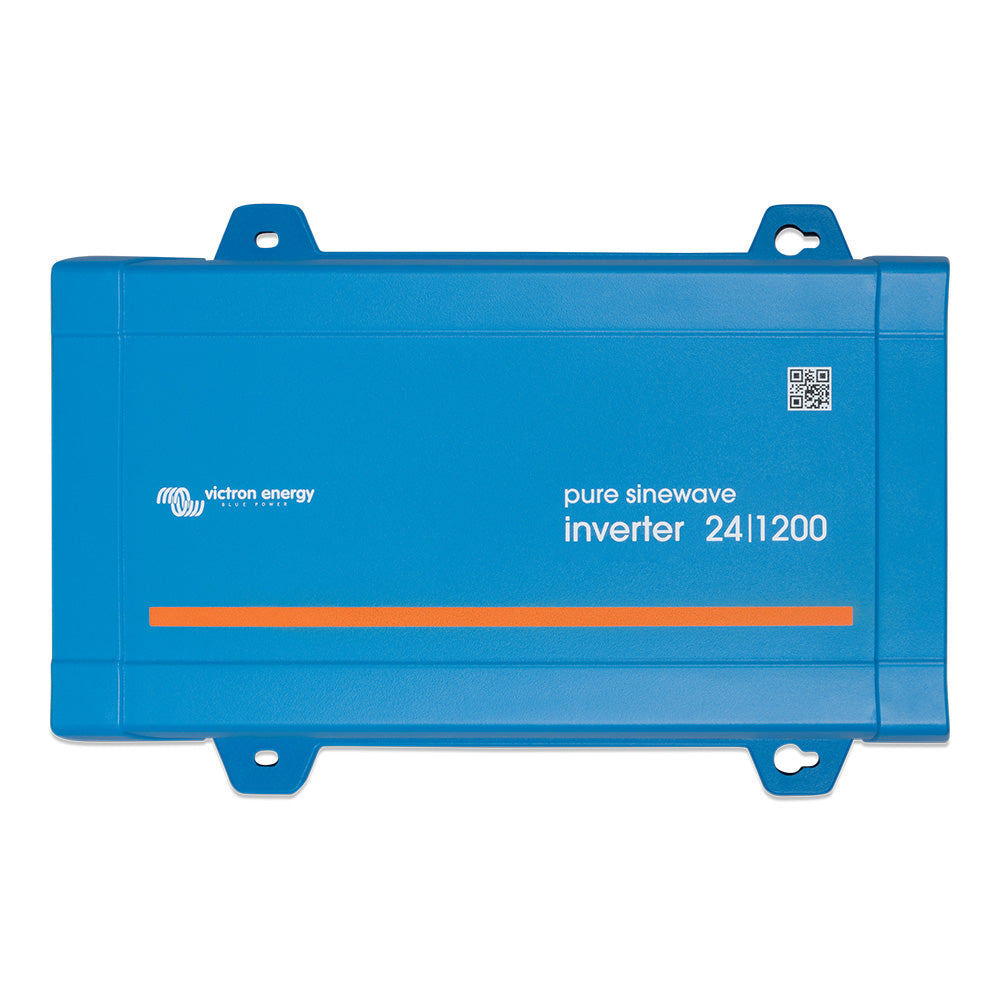

Phoenix Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL458

24 Volts DC input, 120 Volts 60 Hz pure sine wave output. This has a single NEMA5-R receptacle as its output. This is the standard GFCI receptacle outlet used in the US. For use in marine applications, this GFCI version is required to comply with ABYC Standard.

Features:

  • 1200 VA continuous output at 25 Deg C
  • 1000 Watts continuous output at 25 Deg C
  • Peak Power 2200 Watts
  • Max efficiency 91%
  • Zero load power 8 Watts
  • Weight 16.3 Lbs Dimensions 4.6" x 9.1" x 12.9"
  • Can accept up to 4 AWG battery cable
Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

  • AC Connection Type: GFCI Outlet
  • DC Connection Type: Hardwire
  • GFCI: Yes
  • Inverter Cont. Output Wattage: 850W
  • Inverter Input Voltage: 24VDC
  • Inverter Output Voltage: 120VAC
  • Inverter Surge Rating: 2200W
  • Outlet Qty: 1
  • Waveform: True Sine Wave
  • Box Dimensions: 8"H x 12"W x 17"L WT: 19 lbs
  • UPC: 8719076054221

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
