Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" [65451W]

Name: Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" [65451W]
Brand: Wichard Marine
SKU: EM-97737
Price: 84.86 USD
Availability: OutOfStock

$84.86 $99.83

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

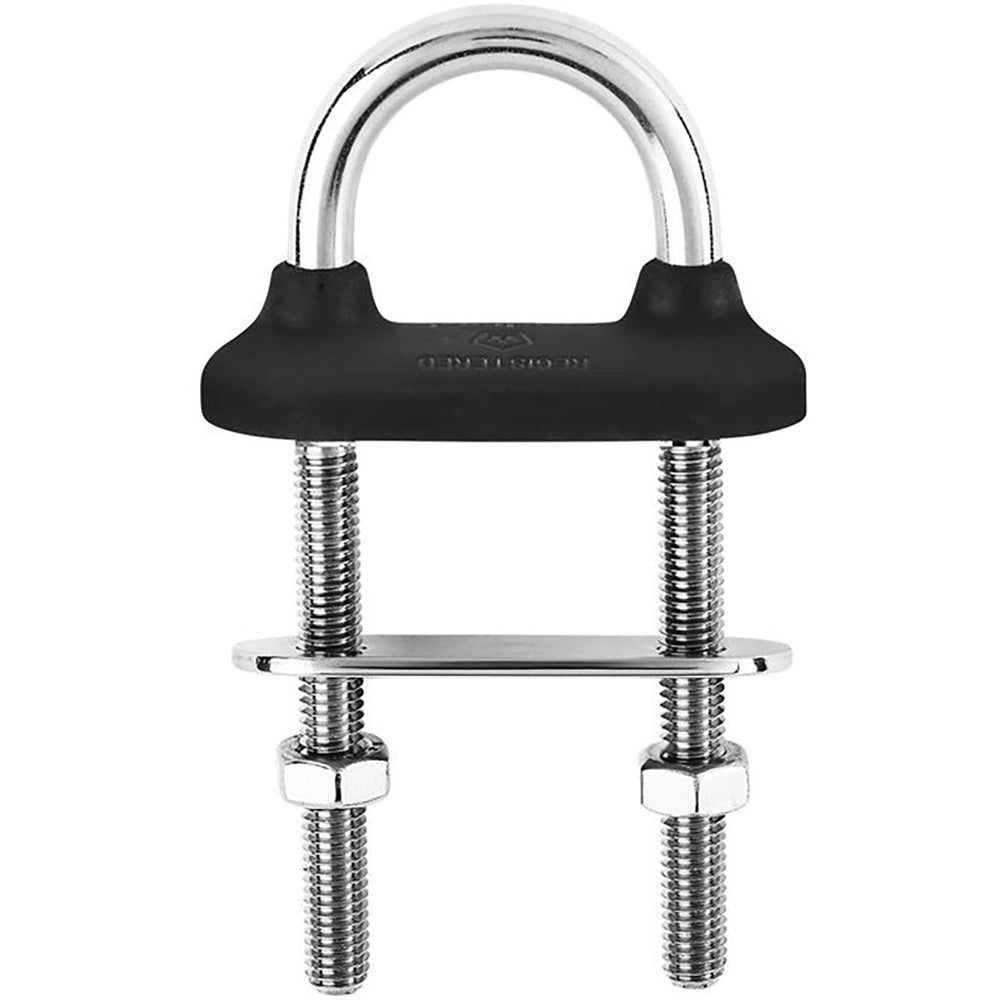

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

Features:

Fully drop-forged product with high-quality stainless steel
Outstanding working and breaking loads
Complete water-tightness thanks to the resistant rubber collar (black color)
Easy installation (no need to use a waterproof sealant)
Delivered with bolts and counter-plate
Max tightening torque: 36 nm

Applications:

Various fastening applications: shrouds, lifelines, blocks…

Specifications:

Materials: 316L stainless steel grade
Color: Black
Working load: (lb) 7930 / (kg) 3600
Breaking load: (lb) 15430 / (kg) 7000
Weight: (lb) 0.525 / (g) 238

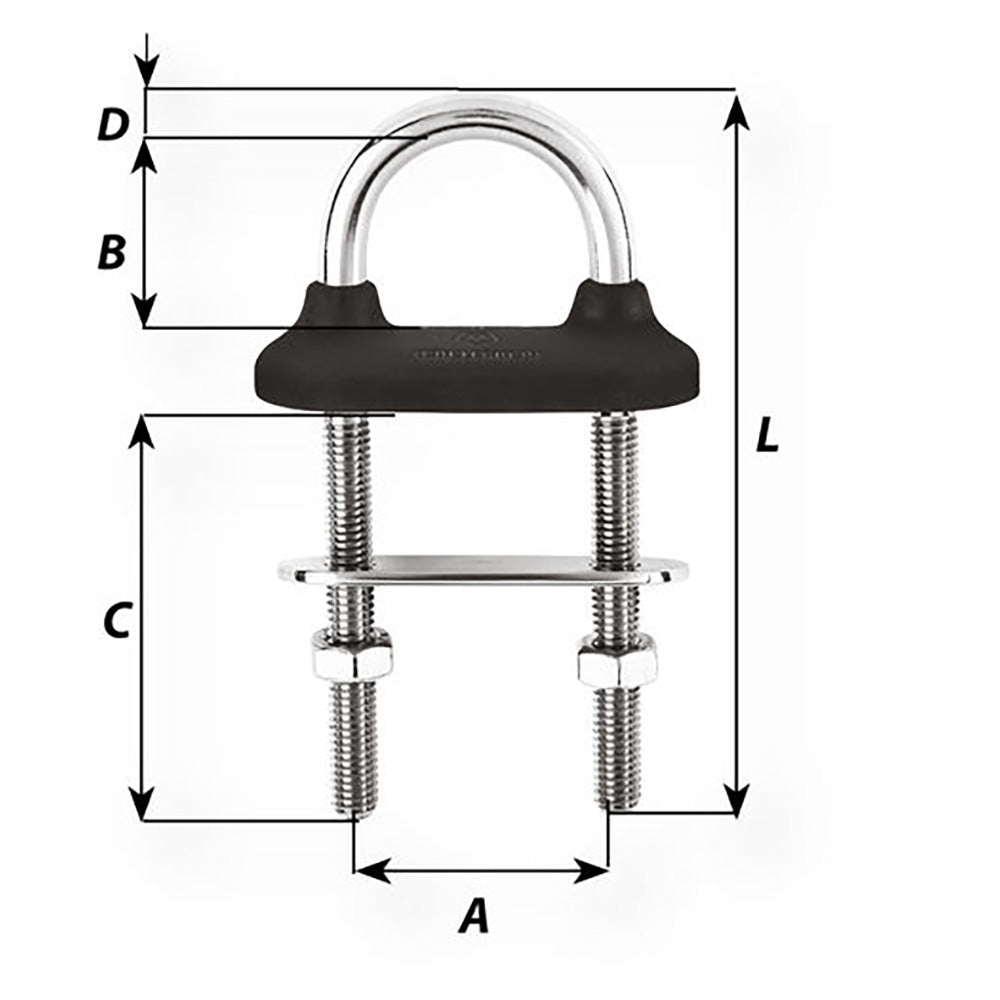

Dimensions:

Length: (inch) 4 21/64" / (mm) 110
A: (inch) 1 37/64" / (mm) 40
B: (inch) 1 1/32" / (mm) 26
C: (inch) 2 9/16" / (mm) 65
D diameter: (inch) 25/64" / (mm) 10

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
