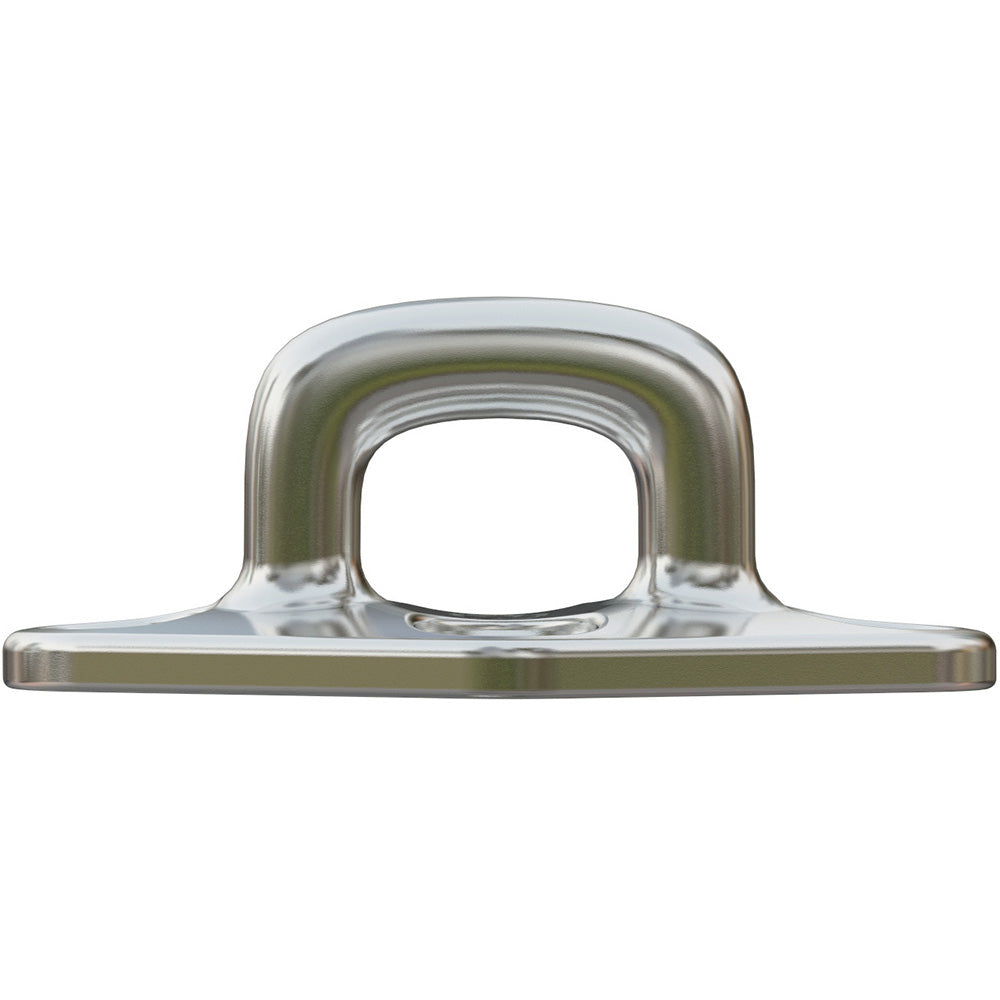

Wichard Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw [6656W]

Name: Wichard Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw [6656W]
Brand: Wichard Marine
SKU: EM-99741
Price: 56.58 USD
Availability: InStock

$56.58 $66.57

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw

Features:

Mechanical resistance versus corrosion resistance ratio
Optimized dimensions
For M8 screw

Applications:

Mast foot blocks
Reefing blocks
Various fastenings

Specifications:

Materials: Duplex stainless steel grade
Working Load: (lb) 9479.8 / (kg) 4300
Breaking Load: (lb) 25573.6 / (kg) 11600
Weight: (lb) 0.562 / (g) 255
W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300
W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300
W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600
B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600
B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

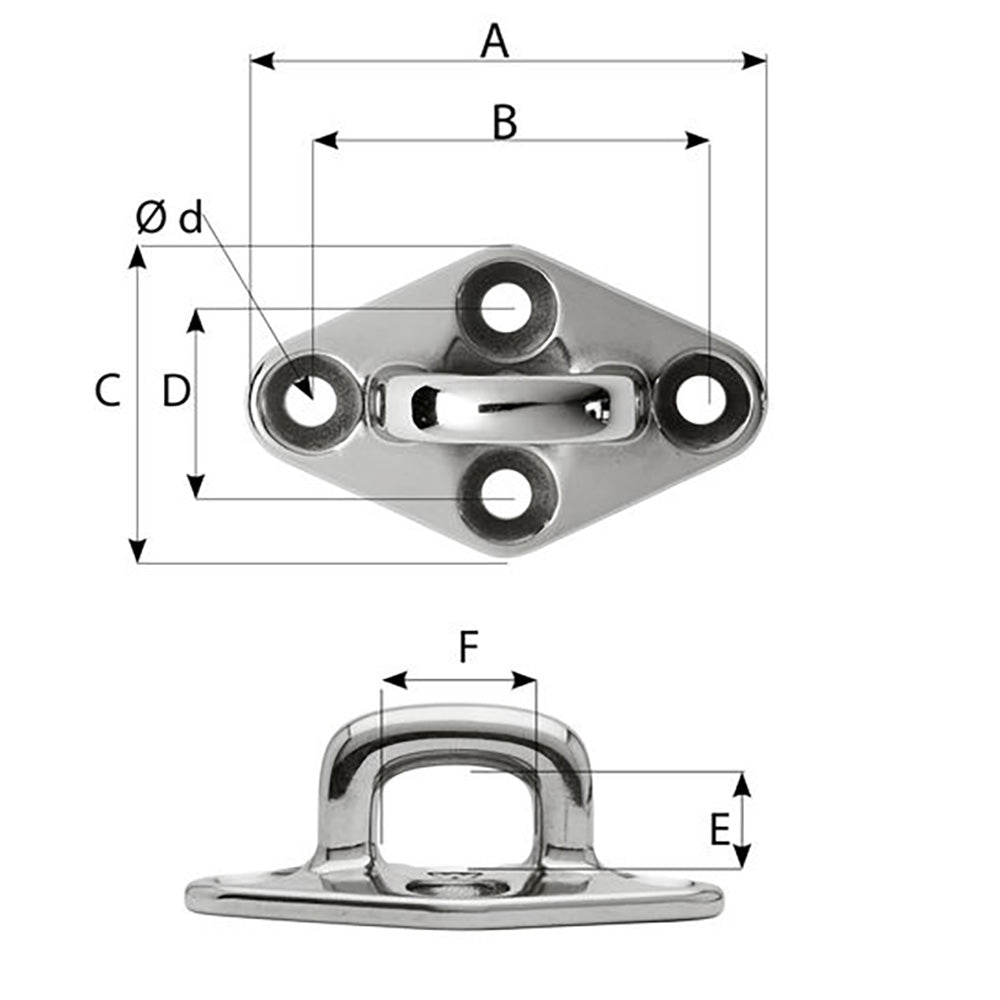

Dimensions:

A: (inch) 3 55/64" / (mm) 98
B: (inch) 2 7/8" / (mm) 73
C: (inch) 2 21/64" / (mm) 59
D: (inch) 1 3/8" / (mm) 35
E: (inch) 49/64" / (mm) 19.5
F: (inch) 1 1/16" / (mm) 27

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
