Wichard Double Folding Pad Eye - 6mm Diameter - 15/64" [6564W]

Name: Wichard Double Folding Pad Eye - 6mm Diameter - 15/64" [6564W]
Brand: Wichard Marine
SKU: EM-97695
Price: 152.90 USD
Availability: InStock

$152.90 $179.88

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

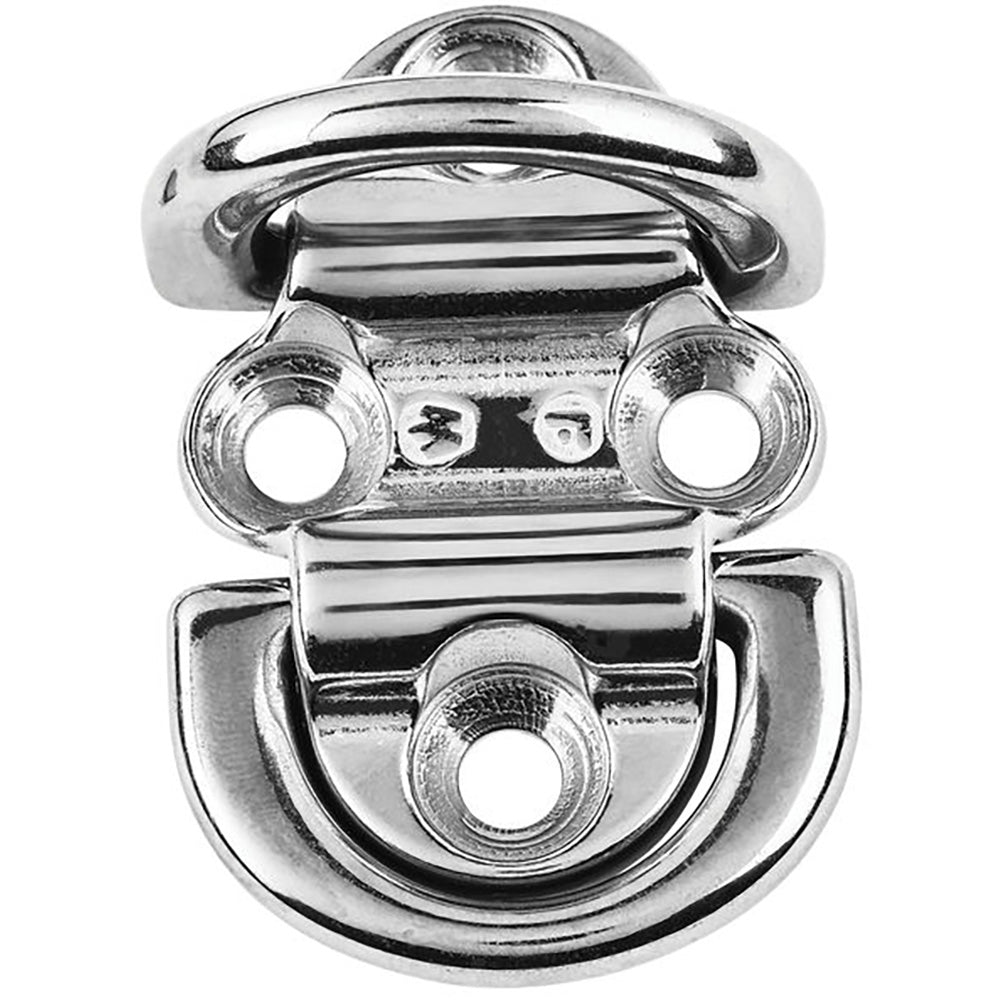

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
Perfect solution attachment (stay, blocks, jib tack point)
Possibility to attach several stays
Modern and optimized design to suit the aesthetics of modern boats
They can be folded down to minimize the risk of injuries
The silicon pad eliminates noise and unpleasant vibrations

Applications:

For any fastening/attachment application
Allows to attach several shrouds

Specifications:

Materials: 316L stainless steel grade
Working load: (lb) 3170 / (kg) 1440
Breaking load; (lb) 5510 / (kg) 2500
Weight: (lb) 0.278 / (g) 126

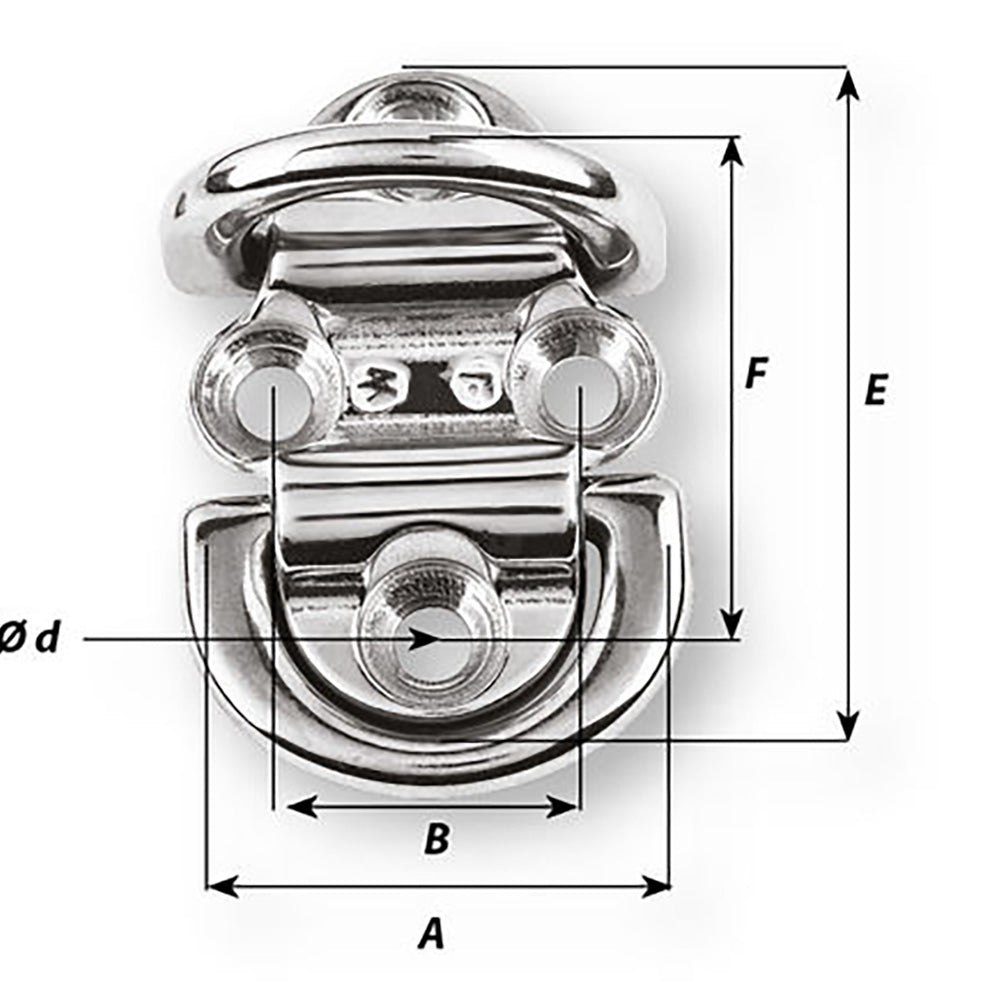

Dimensions:

A: (inch) 1 49/64" / (mm) 45
B: (inch) 1 1/16" / (mm) 27
C: (inch) 35/64" / (mm) 14
d diameter: (inch) 1/4" / (mm) 6.4
D diameter: (inch) 15/64" / (mm) 6
E: (inch) 2 61/64" / (mm) 75
F: (inch) 2 21/64" / mm) 59

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
